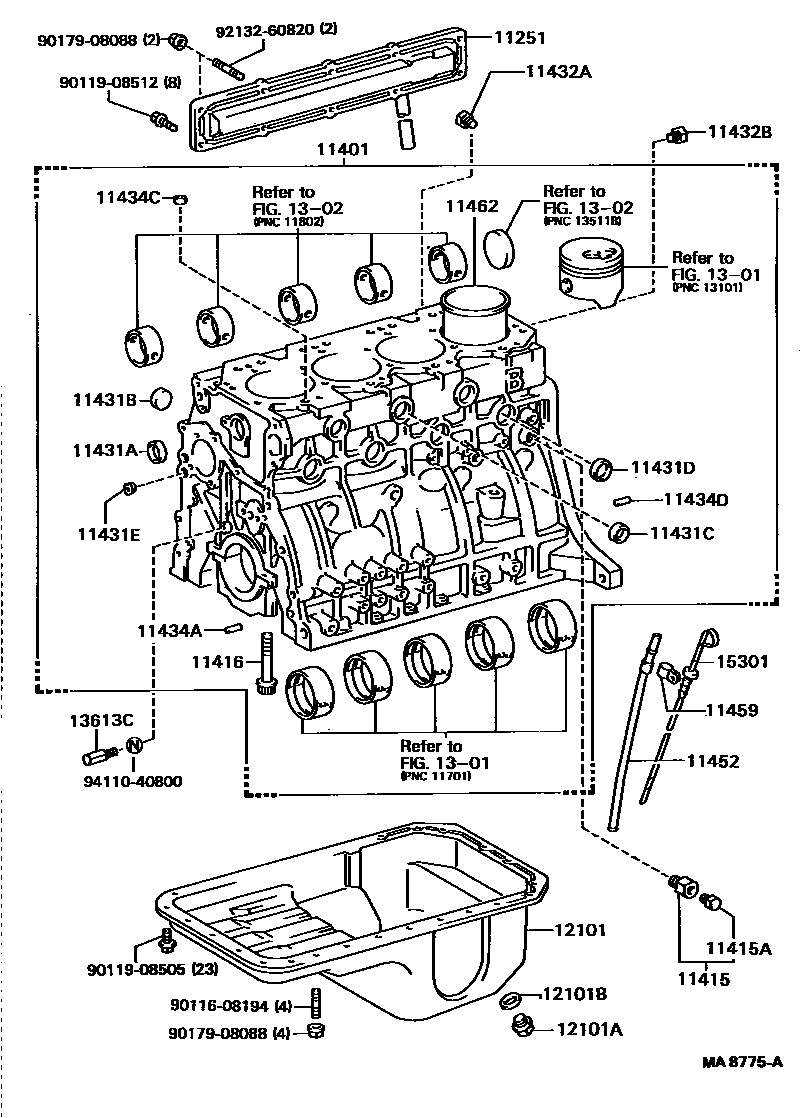

CYLINDER BLOCK

0001 1 0002 1

11251COVER, VALVE PUSH ROD

main11203-56041iB..BU60198601-198808

11401BLOCK SUB-ASSY, CYLINDER

main11401-59265iB..BU60198601-198808

sub11401-59266

sub15403-56050

sub90401-20009

sub90430-20018

main11401-59375iB..BU60198808-199502

sub11401-59376

sub11381-58010

main11401-59376iB..BU60199502-199505

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828iB..BU60198601-199505

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96432-23814iB..BU60198601-199505

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90109-16001iB..BU60198601-198805

*16-2PX88.5-32

main90109-16001iB..BU60198805-198808

main90910-02082iB..BU60198808-199505

main90910-02083iB..BU60198808-199505

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-51032iB..BU60198601-198805

OD=51

main90331-51032iB..BU60198805-198808

main96411-14500iB..BU60198808-199505

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-50003iB..BU60199411-199505

main96411-42800iB..BU60198601-198805

OD=28

main96411-42800iB..BU60198805-198808

main96411-45000iB..BU60198808-199411

main96411-45000iB..BU60199411-199505

main96411-65000iB..BU60199411-199505

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43000iB..BU60198601-198805

OD=30

main96411-43000iB..BU60198805-199411

main96411-63000iB..BU60199411-199505

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-43500iB..BU60198805-199411

main96411-43500iB..BU60198601-198805

OD=35

main96411-63500iB..BU60199411-199505

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006iB..BU60199411-199505

main96411-11400iB..BU60198808-198902

sub96411-41400

main96411-41400iB..BU60198601-198805

OD=14,WATER JACKET

main96411-41400iB..BU60198805-199411

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90043-45027iB..BU60198601-198808

sub90345-51007

main90345-51007iB..BU60198808-199505

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53001iB..BU60198601-198808

main90345-53004iB..BU60198808-199505

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120iB..BU60198601-199505

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005iB..BU60198601-199505

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-08120iB..BU60198601-199505

11452GUIDE, OIL LEVEL GAGE

main11452-56050iB..BU60198601-199505

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040iB..BU60198601-199505

11462LINER, CYLINDER

main11461-56030iB..BU60198601-198808

12101PAN SUB-ASSY, OIL

main12101-56060iB..BU60198601-198808

main12101-56080iB..BU60198808-198910

sub12101-56100

sub12129-56010

sub93385-16014

main12101-56100iB..BU60198910-199009

sub12101-56101

sub90341-12012

sub90430-12027

main12101-56101iB..BU60199009-199505

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012iB..BU60199009-199212

main90341-12026iB..BU60199212-199505

sub90341-12012

main90341-18089iB..BU60198601-199009

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027iB..BU60199009-199312

sub90430-12031

main90430-12031iB..BU60199312-199505

main90430-18018iB..BU60198808-199004

sub90430-18023

main90430-18026iB..BU60199004-199009

main90430-18244iB..BU60198601-198808

sub90430-18023

1301

1302

13613CNOZZLE, OIL

main90915-01015iB..BU60198601-199505

15301GAGE SUB-ASSY, OIL LEVEL

main15301-56040iB..BU60198601-198808

sub15301-56051

main15301-56050iB..BU60198808-198910

sub15301-56060

main15301-56060iB..BU60198910-199505

9011608194

main90116-08194

9011908505

main90119-08505

9011908512

main90119-08512

9017908088

main90179-08088

9213260820

main92132-60820

9411040800

main94110-40800

31 parts on this diagram · 2 diagrams in section
