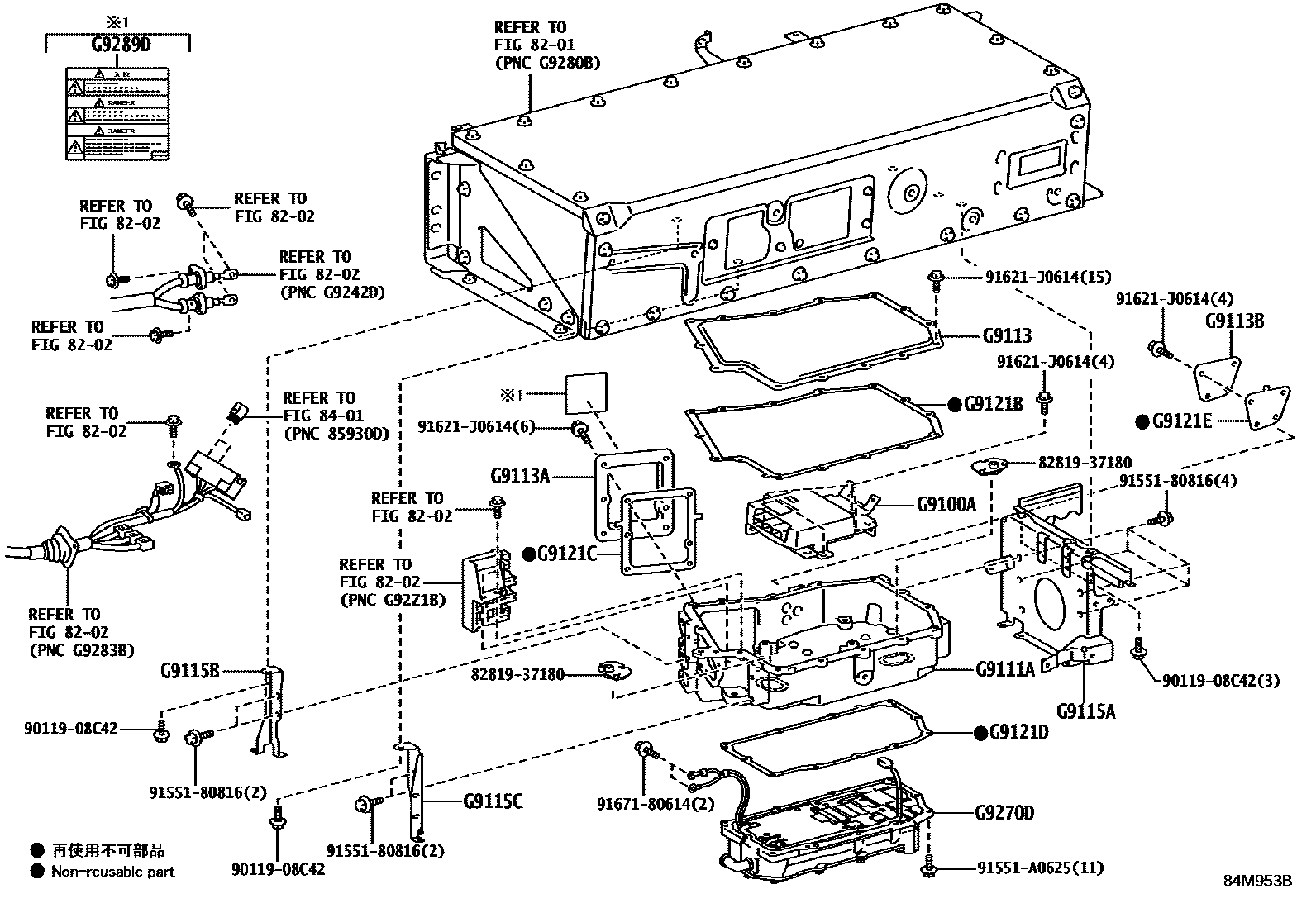

HEV CONTROL COMPUTER

8201

8202

8401

G9100ACONTROLLER ASSY, EV UNIT

mainG910037135iXKC605,XKU605,645,655202103

G9111ACASE, EV UNIT CONTROLLER

mainG911137021iXKC605,XKU605,645,655202103

G9113COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER

mainG911337011iXKC605,XKU605,645,655202103

G9113ACOVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.2

mainG911337021iXKC605,XKU605,645,655202103

G9113BCOVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.3

mainG911337030iXKC605,XKU605,645,655202103

G9115ABRACKET, ELECTRIC VEHICLE UNIT CONTROLLER

mainG911537050iXKC605,XKU605,645,655202103

G9115BBRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.2

mainG911537070iXKC605,XKU605,645,655202103

G9115CBRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.3

mainG911537060iXKC605,XKU605,645,655202103

G9121BGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER

mainG912137010iXKC605,XKU605,645,655202103

G9121CGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.2

mainG912137020iXKC605,XKU605,645,655202103

G9121DGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.3

mainG912137040iXKC605,XKU605,645,655202103

G9121EGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.4

mainG912137030iXKC605,XKU605,645,655202103

G9270DCONVERTER ASSY, EV

mainG927037010iXKC605,XKU605,645,655202103

G9289DLABEL, BATTERY CAUTION

mainG928937040iXKC605,XKU605,645,655202103

8281937180GROMMET, WIRING HARNESS

main82819-37180

9011908C42

main90119-08C42

9155180816

main91551-80816

91551A0625

main91551-A0625

91621J0614

main91621-J0614

9167180614

main91671-80614

23 parts on this diagram · 1 diagram in section
