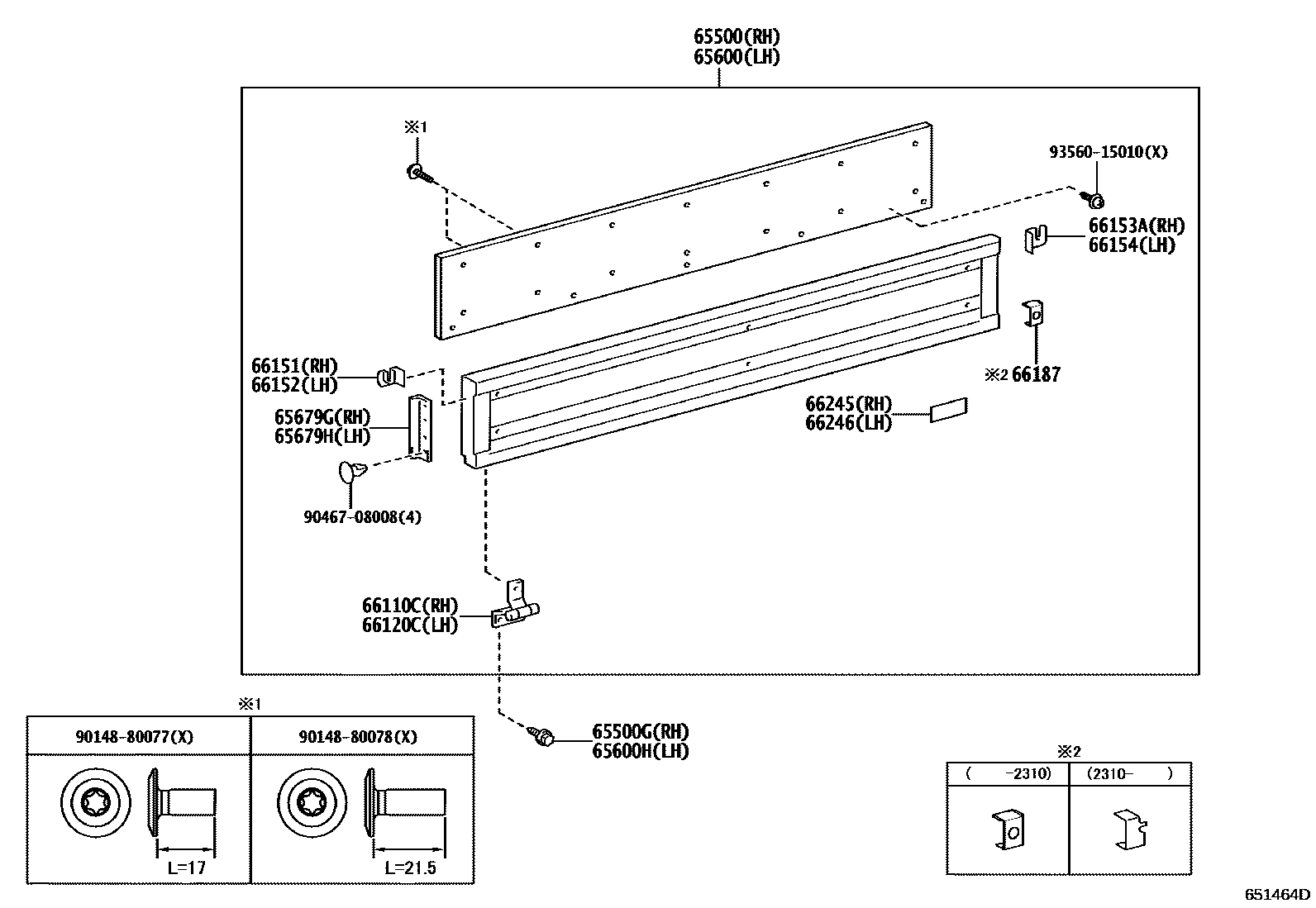

REAR BODY SIDE PANEL
65500PANEL ASSY, REAR BODY SIDE, RH
65500GBOLT, W/WASHER(FOR SIDE GATE, RH)
65600PANEL ASSY, REAR BODY SIDE, LH
65600HBOLT, W/WASHER(FOR SIDE GATE, LH)
65679GSEAL, SIDE GATE
65679HSEAL, SIDE GATE
66110CHINGE ASSY, SIDE GATE, NO.1 RH
66120CHINGE ASSY, SIDE GATE, NO.1 LH
66151LATCH, SIDE GATE FEMALE, RH
66152LATCH, SIDE GATE FEMALE, LH
66153ALATCH, TAIL GATE FEMALE, RH
66154LATCH, TAIL GATE FEMALE, LH
66187HANDLE, SIDE GATE LATCH, CENTER NO.2
66245PROTECTOR, REAR BODY, NO.3 RH
66246PROTECTOR, REAR BODY, NO.3 LH
9014880077
main90148-80077
9014880078
main90148-80078
9046708008
main90467-08008
9356015010
main93560-15010
19 parts on this diagram · 3 diagrams in section
