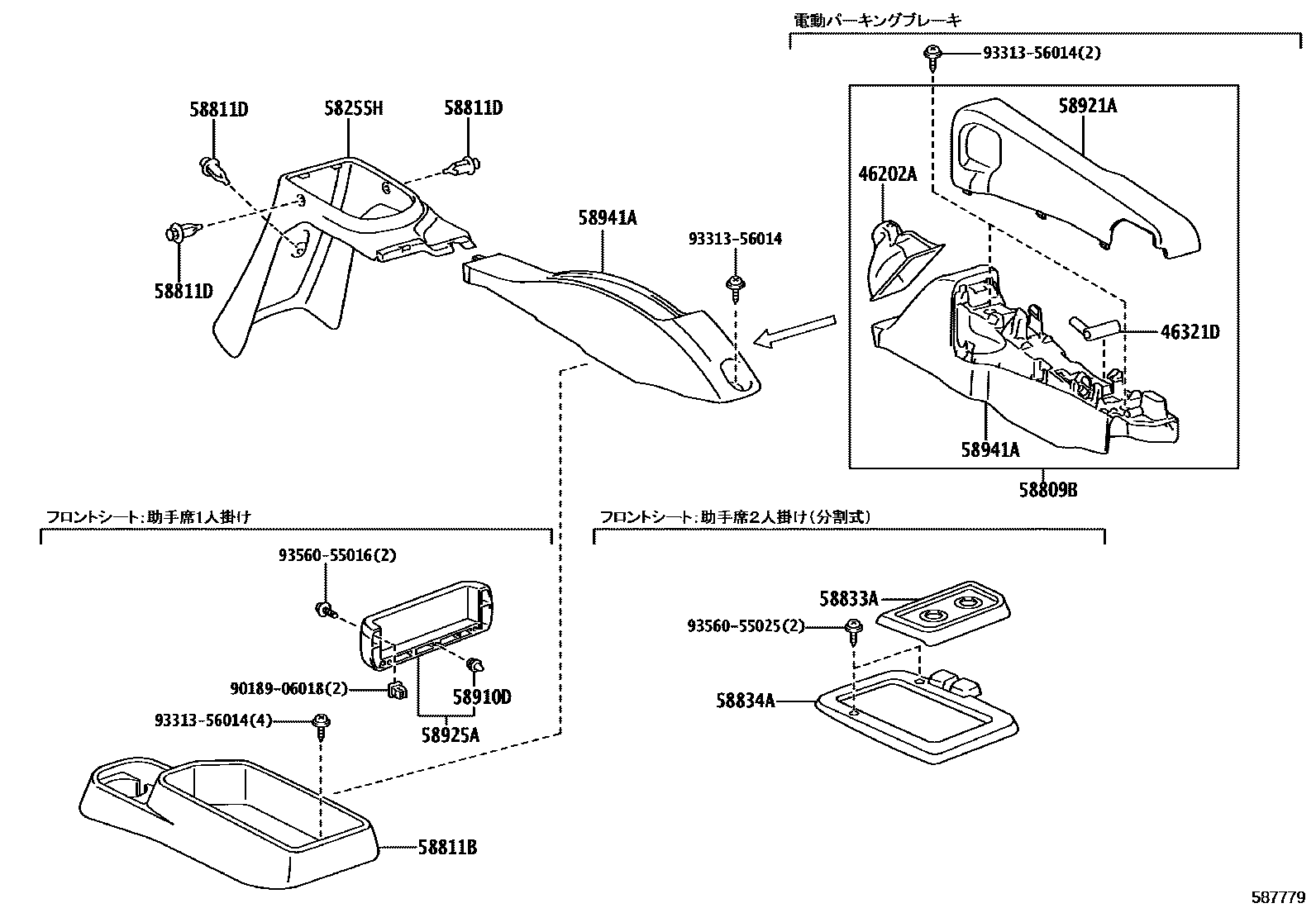

CONSOLE BOX & BRACKET

46202ABOOT SUB-ASSY, PARKING BRAKE LEVER

main46202-37010-C0iXKC605,XKU605,645,655202103

BLACK,TRIM1#

main46202-37010-C0iXKC605,XKU605,645,655202103

46321DLEVER, PARKING BRAKE, CENTER

main46321-37030iXKC605,XKU605,645,655202103

58255HCOVER, SHIFT LEVER BOOT

main58255-37080-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-37010-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

58811BBOX, CONSOLE

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-C1iXKC605,XKU605,645,655202103

BLACK,TRIM1#

sub90467-07191

58833ACOVER, CONSOLE, UPPER

58834ACOVER, CONSOLE, LOWER

58910DCLIP(FOR CONSOLE BOX)

58921APANEL, REAR CONSOLE, UPPER

main58921-37030-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

58925APOCKET, CONSOLE BOX, REAR

58941ACOVER, PARKING BRAKE HOLE

main58941-37120-B0iXKC605,XKU605,645,655202103

GRAY,TRIM1#

9018906018

main90189-06018

9331356014

main93313-56014

9356055016

main93560-55016

9356055025

main93560-55025

16 parts on this diagram · 1 diagram in section
