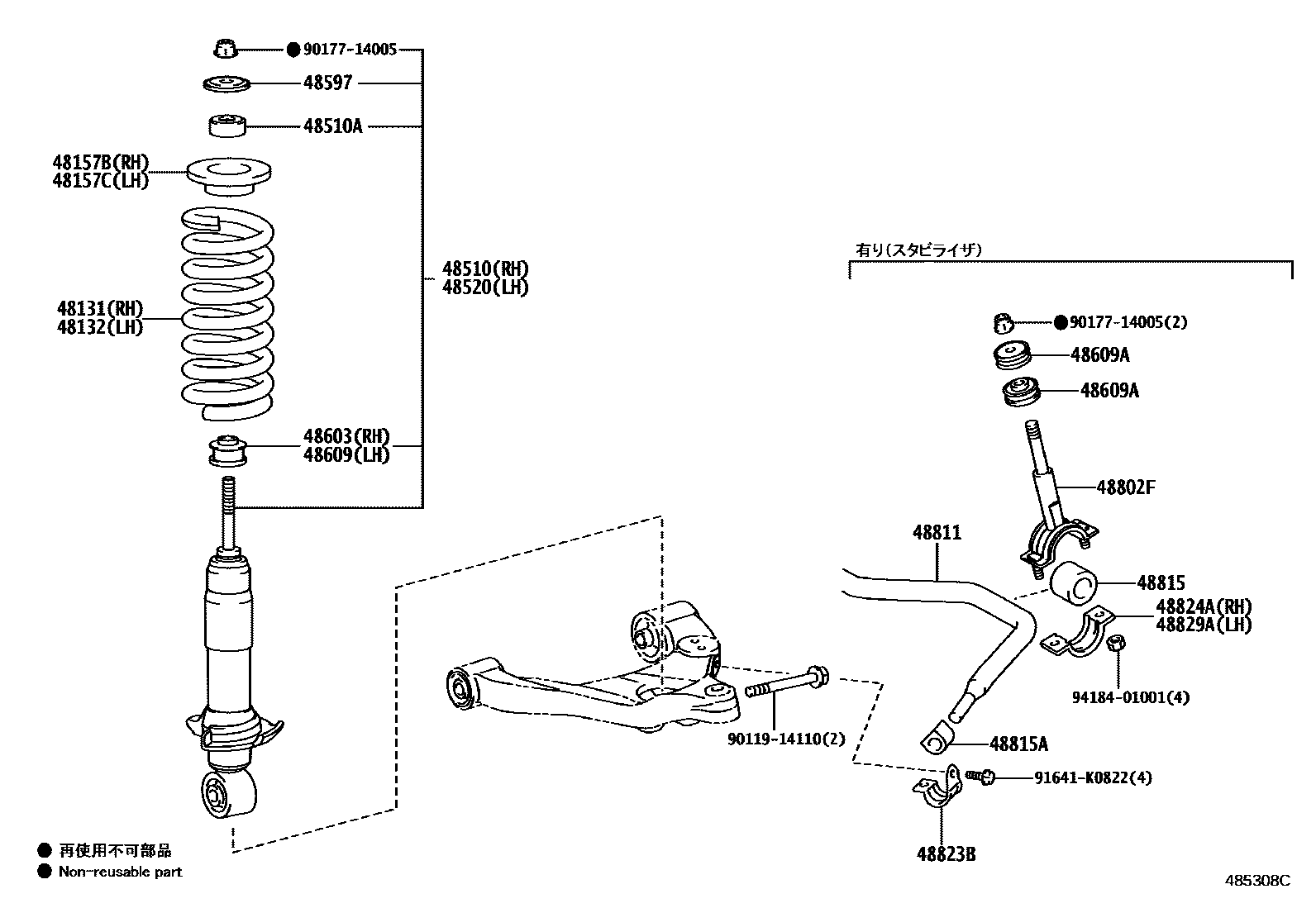

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48510ACUSHION, FRONT SHOCK ABSORBER
48520ABSORBER ASSY, SHOCK, FRONT LH
48597RETAINER, SHOCK ABSORBER CUSHION
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48802FLINK SUB-ASSY, FRONT STABILIZER
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48815ABUSH, FRONT STABILIZER BAR, NO.2
48823BCOVER, FRONT STABILIZER BRACKET
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011914110
main90119-14110
9017714005
main90177-14005
91641K0822
main91641-K0822
9418401001
main94184-01001
22 parts on this diagram · 1 diagram in section
