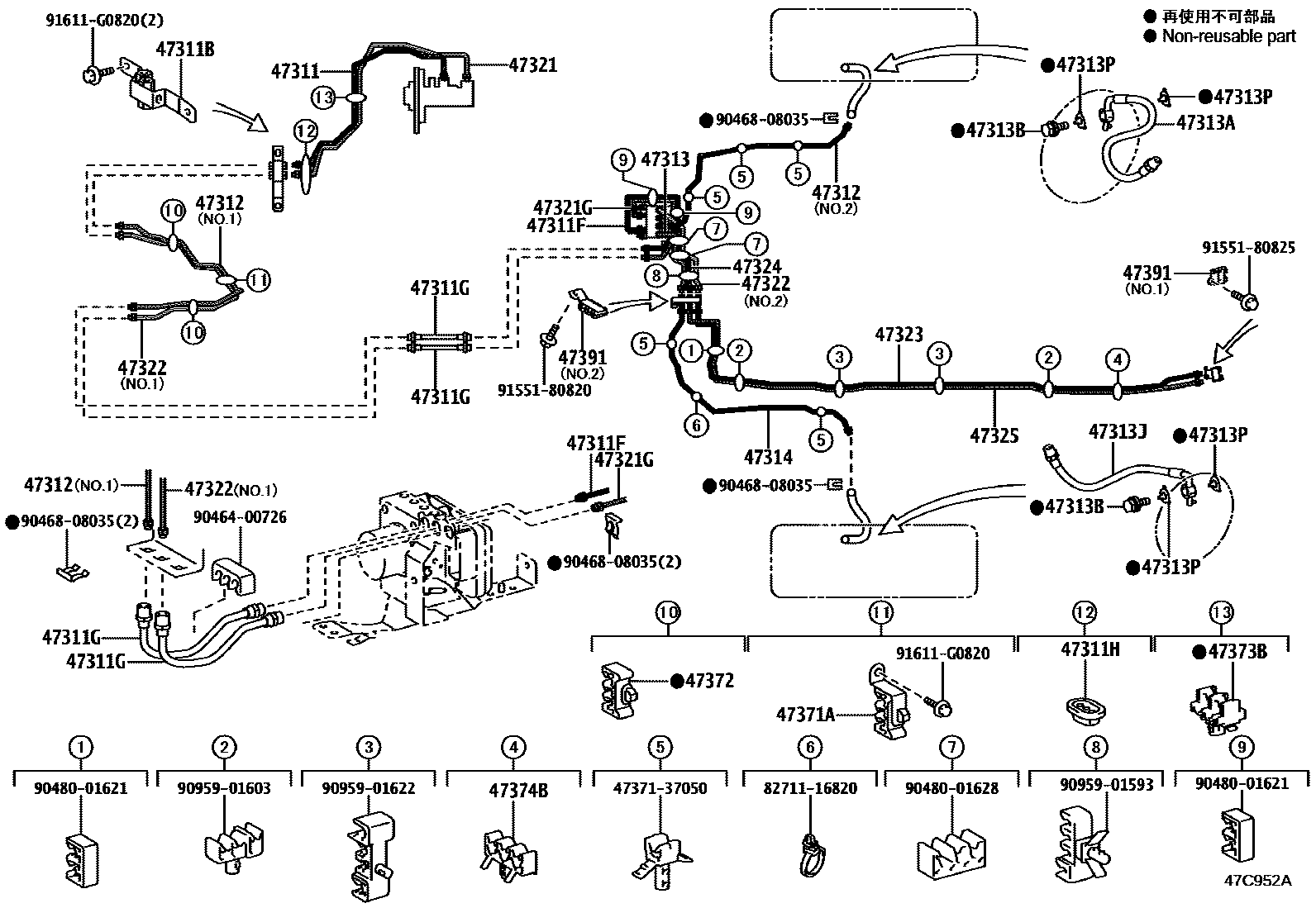

BRAKE TUBE & CLAMP

0001 1 0002 1��(��������) 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

47311TUBE, FRONT BRAKE, NO.1

main47311-37750iXKC605202103-202203

main47311-37751iXKC605202204

main47311-37760iXKU605,645,655202103-202203

main47311-37761iXKU605,645,655202204

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37460iXKC605,XKU605,645,655202103

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37611iXKC605,XKU605,645,655202103

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02J57×2iXKC605,XKU605,645,655202103

47311HGROMMET(FOR BRAKE TUBE)

main47256-37030iXKC605,XKU605,645,655202103

47312TUBE, FRONT BRAKE, NO.2

main47312-37A80iXKC605,XKU605,645,655202103-202203

main47312-37A81iXKC605,XKU605,645,655202204-202407

main47312-37A82iXKC605,XKU605,645,655202408

main47312-37G00iXKC605,XKU605,645,655202103

main47312-37F70iXKU605..IV5202103-202203

main47312-37F71iXKU605..IV5202204

47313TUBE, FRONT BRAKE, NO.3

main47313-37560iXKC605,XKU605,645,655202103

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E92iXKC605,XKU605,645,655202103

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iXKC605,XKU605,645,655202103

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E93iXKC605,XKU605,645,655202103

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iXKC605,XKU605,645,655202103

47314TUBE, FRONT BRAKE, NO.4

main47314-37A80iXKC605,XKU605,645,655202103

47321TUBE, REAR BRAKE, NO.1

main47321-37740iXKC605202103-202203

main47321-37741iXKC605202204

main47321-37750iXKU605,645,655202103-202203

main47321-37751iXKU605,645,655202204

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37580iXKC605,XKU605,645,655202103

47322TUBE, REAR BRAKE, NO.2

main47322-37A91iXKC605,XKU605,645,655202103-202203

main47322-37A92iXKC605,XKU605,645,655202204-202407

main47322-37A93iXKC605,XKU605,645,655202408

main47322-37B00iXKC605,XKU605,645,655202103

main47322-37G90iXKU605..IV5202103-202203

main47322-37G91iXKU605..IV5202204

47323TUBE, REAR BRAKE, NO.3

main47323-37B70iXKC605,XKU605,645,655202103

47324TUBE, REAR BRAKE, NO.4

main47324-37380iXKC605,XKU605,645,655202103

47325TUBE, REAR BRAKE, NO.5

main47325-37640iXKC605,XKU605,645,655202103

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37150iXKC605,XKU605,645,655202103

47372CLAMP, BRAKE TUBE, NO.2

main47371-37160×2iXKU605..IV5202103

47373BCLAMP, BRAKE TUBE, NO.3

main47371-37110iXKC605,XKU605,645,655202103

47374BCLAMP, BRAKE TUBE, NO.4

main47371-37240iXKC605,XKU605,645,655202103

47391WAY, BRAKE TUBE

main47391-37300iXKC605,XKU605,645,655202103

main47391-37670iXKC605,XKU605,645,655202103

main47391-37400iXKU605..IV5202103

4737137050BRACKET, CONNECTOR

main47371-37050

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

9046400726

main90464-00726

9046808035

main90468-08035

9048001621

main90480-01621

9048001628

main90480-01628

9095901593

main90959-01593

9095901603

main90959-01603

9095901622

main90959-01622

9155180820

main91551-80820

9155180825

main91551-80825

91611G0820

main91611-G0820

35 parts on this diagram · 8 diagrams in section
