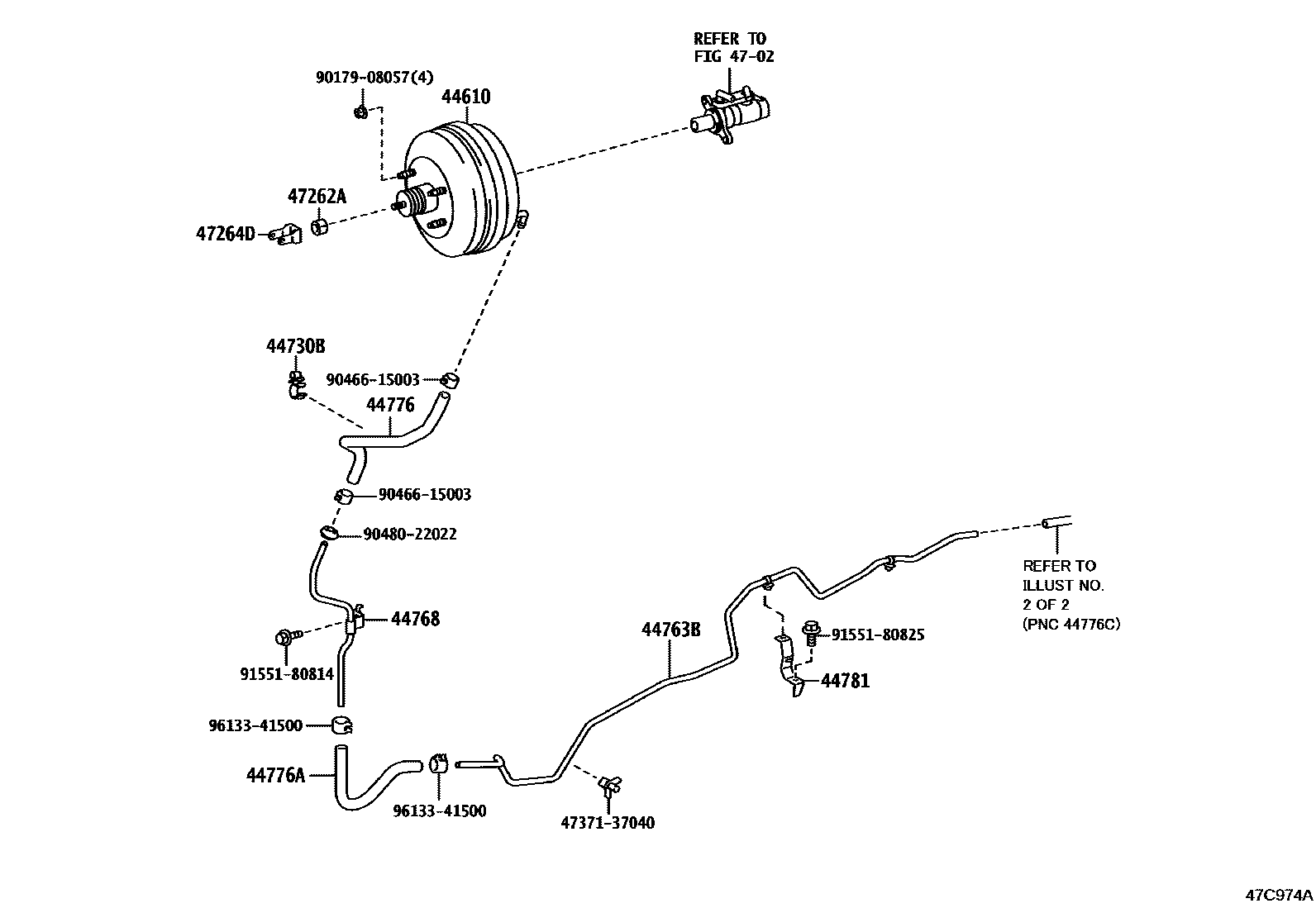

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-37271iXKC605202103

main44610-37280iXKU605,655..20T202103

main44610-37290iXKU605,645,655..30T202103

44730BCLAMP, VACUUM HOSE

main44597-37021iXKU605,645,655202103-202306

44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR

main44764-37B91iXKC605,XKU605,645,655202103

44768TUBE, BOOSTER VACUUM

main44768-37250iXKC605202103

44776HOSE, BRAKE BOOSTER

main44776-37350iXKU605,645,655202103-202306

main44776-37370iXKC605202103

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37190iXKC605,XKU605,645,655202103

44781BRACKET, HOSE

main44781-37171iXKC605,XKU605,645,655202103

4702

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main90179-10065iXKU605,645,655202103

main94120-41000iXKC605202103

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42010iXKC605202103

main47264-50010iXKU605,645,655202103

4737137040BRACKET, CONNECTOR

main47371-37040

9017908057

main90179-08057

9046615003

main90466-15003

9048022022

main90480-22022

9155180814

main91551-80814

9155180825

main91551-80825

9613341500

main96133-41500

17 parts on this diagram · 3 diagrams in section
