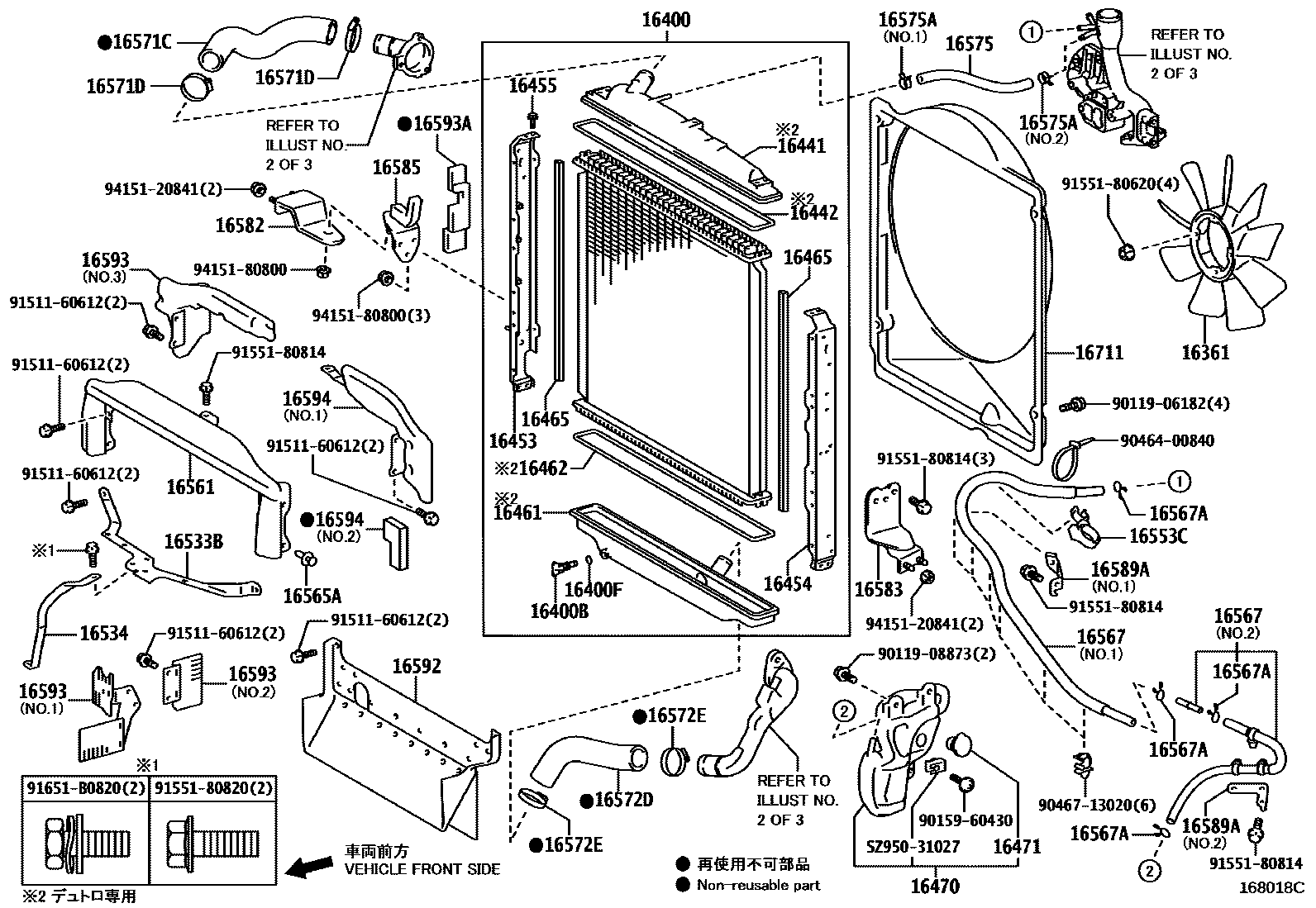

RADIATOR & WATER OUTLET
16361FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16441TANK, RADIATOR, UPPER
16442RING, O(FOR RADIATOR UPPER TANK)
16453PLATE, RADIATOR SIDE
16454PLATE, RADIATOR SIDE
16455BOLT, RADIATOR SIDE SUPPORT PLATE
16461TANK, RADIATOR, LOWER
16462RING, O(FOR RADIATOR LOWER TANK)
16465PACKING, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16533BSUPPORT, RADIATOR, NO.1
16534SUPPORT, RADIATOR, NO.2
16553CCLAMP, HOSE
16561SEAL, RADIATOR TO SUPPORT, NO.1
16565ACLIP
BLACK
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16575HOSE, RADIATOR, NO.5
16575ACLIP, RADIATOR HOSE, NO.5
16582BRACKET, RADIATOR, NO.1
16583BRACKET, RADIATOR, NO.2
16585BRACKET, RADIATOR, NO.3
16589ABRACKET, RADIATOR HOSE CLAMP
16592GUIDE, RADIATOR AIR, NO.3
16593GUIDE, RADIATOR AIR, NO.1
16593AGUIDE, RADIATOR AIR, NO.1 RH
16594GUIDE, RADIATOR AIR, NO.2
16711SHROUD, FAN
9011906182
main90119-06182
9011908873
main90119-08873
9015960430
main90159-60430
9046400840
main90464-00840
9046713020
main90467-13020
9151160612
main91511-60612
9155180620
main91551-80620
9155180814
main91551-80814
9155180820
main91551-80820
91651B0820
main91651-B0820
9415120841
main94151-20841
9415180800
main94151-80800
SZ95031027
mainSZ950-31027
49 parts on this diagram · 3 diagrams in section
