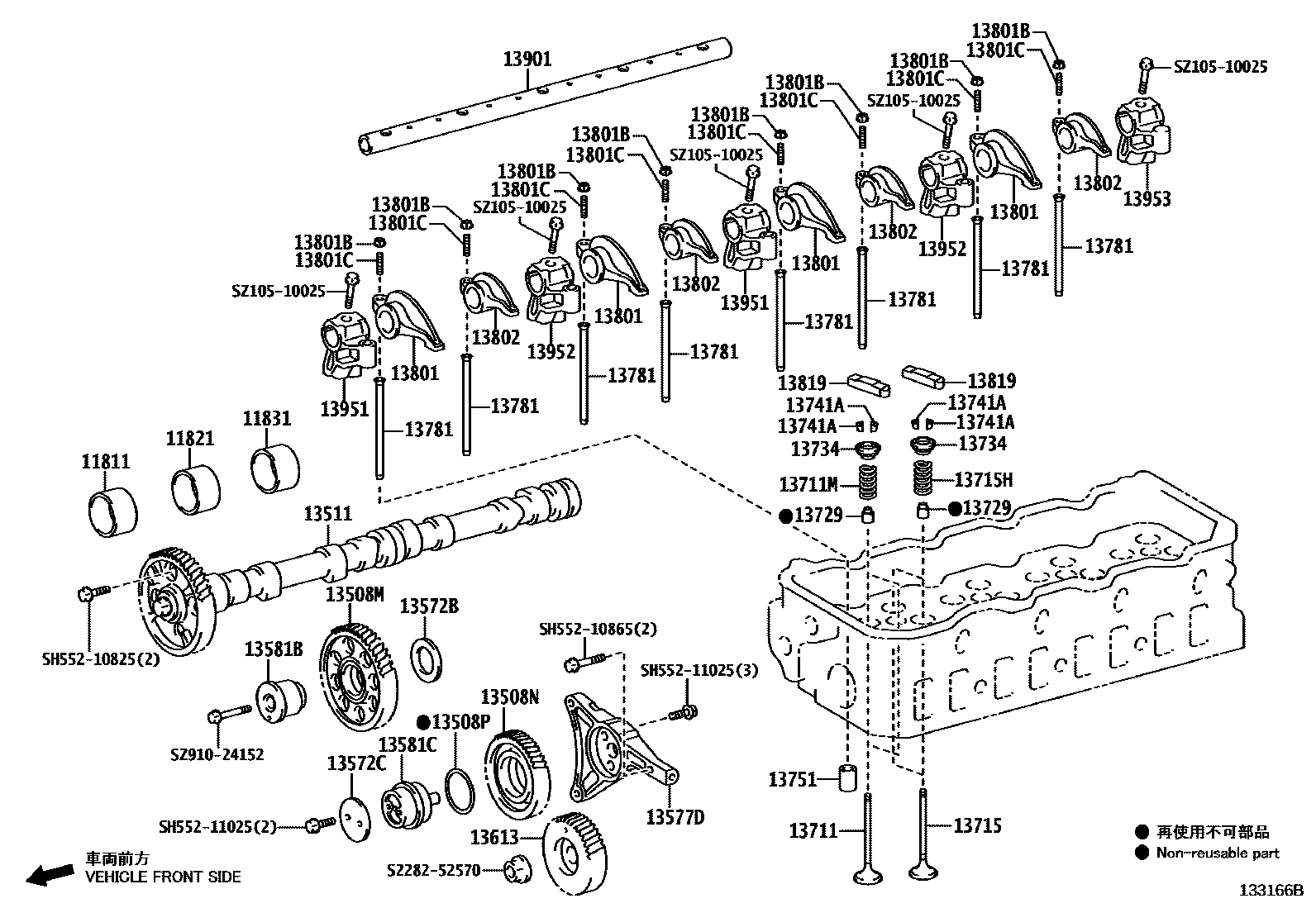

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
11831BEARING, CAMSHAFT, NO.3
13508MGEAR SUB-ASSY, IDLE, NO.1
13508NGEAR SUB-ASSY, IDLE, NO.2
13508PRING, O(FOR IDLE GEAR)
13511CAMSHAFT
13572BPLATE, IDLE GEAR THRUST, NO.1
13572CPLATE, IDLE GEAR THRUST, NO.2
13577DPLATE, LOCK
13581BSHAFT, IDLE GEAR, NO.1
13581CSHAFT, IDLE GEAR. NO.2
13613GEAR, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
13715VALVE, EXHAUST
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
13729SHIELD, VALVE STEM OIL
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13781ROD, VALVE PUSH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13819BRIDGE, VALVE
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13952SUPPORT, VALVE ROCKER, NO.2
13953SUPPORT, VALVE ROCKER, NO.3
S228252570
mainS2282-52570
SH55210825
mainSH552-10825
SH55210865
mainSH552-10865
SH55211025
mainSH552-11025
SZ10510025
mainSZ105-10025
SZ91024152
mainSZ910-24152
37 parts on this diagram · 1 diagram in section
