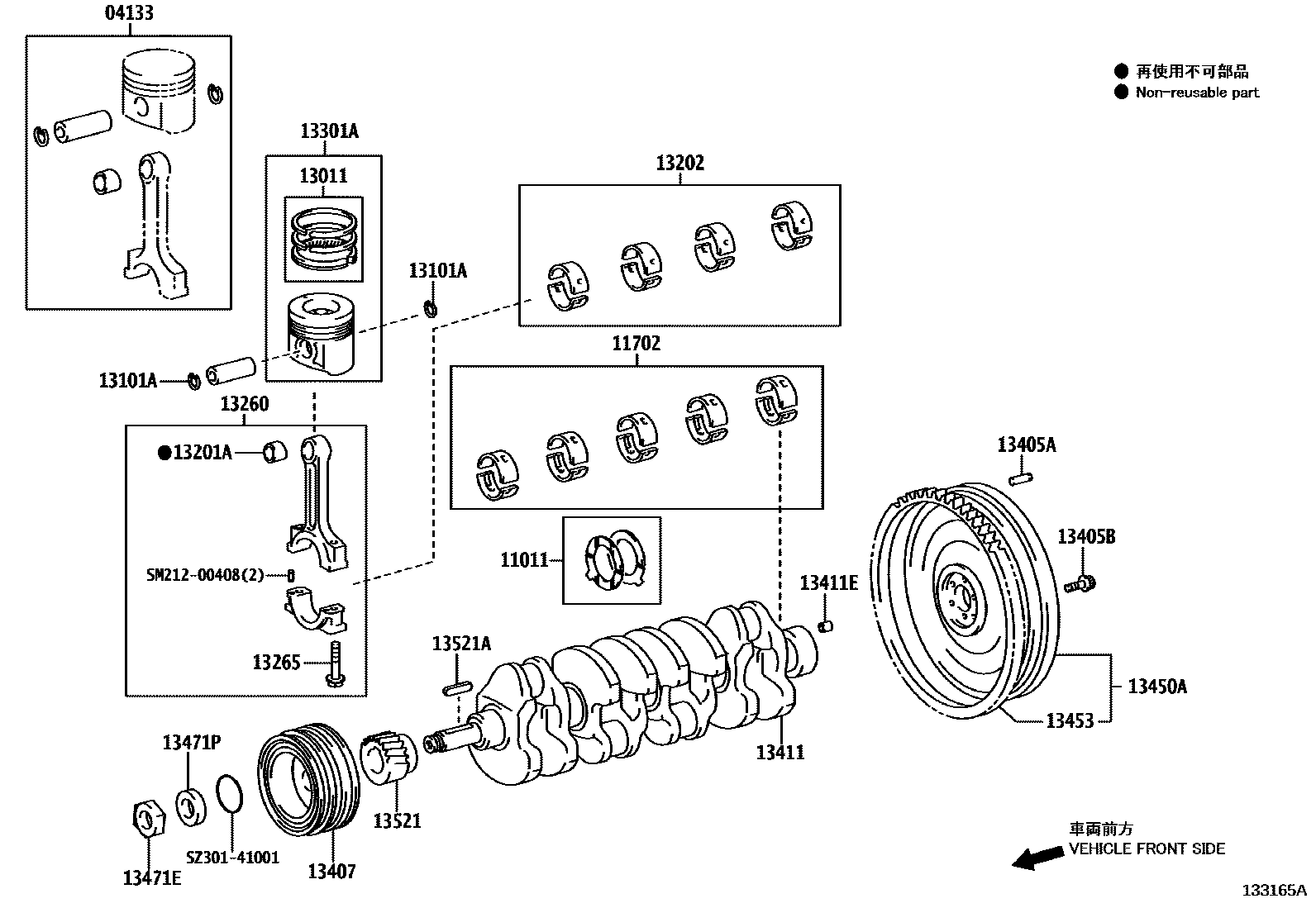

CRANKSHAFT & PISTON
04133PIN KIT, PISTON
11011WASHER SET, CRANKSHAFT THRUST
11702BEARING SET, CRANKSHAFT
13011RING SET, PISTON
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
13260ROD ASSY, CONNECTING
13265BOLT, CONNECTING ROD
13301APISTON SET, W/PISTON RING
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13407DAMPER SUB-ASSY, CRANKSHAFT
13411CRANKSHAFT
13411ECOLLAR(FOR CRANKSHAFT)
13450AFLYWHEEL ASSY
13453GEAR, FLYWHEEL RING
13471ENUT(FOR CRANKSHAFT PULLEY)
13471PSPACER(FOR CRANKSHAFT PULLEY)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
SM21200408
mainSM212-00408
SZ30141001
mainSZ301-41001
23 parts on this diagram · 1 diagram in section
