MOUNTING
12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12325BRACKET, ENGINE MOUNTING, NO.3
12361INSULATOR, ENGINE MOUNTING, FRONT
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12381STABILIZER, ENGINE MOUNTING
12382STABILIZER, ENGINE MOUNTING, LH
12514BAR, ALTERNATOR BELT ADJUSTING
12514ASLIDER, FAN BELT ADJUSTING
16603CPULLEY SUB-ASSY, IDLER
16630PULLEY ASSY, IDLER
16630BCOVER, DUST
16631CBRACKET, IDLER PULLEY
16639ASPACER, IDLER PULLEY
82702BBRACKET SUB-ASSY, WIRING HARNESS
1660178010TENSIONER SUB-ASSY, V-RIBBED BELT
main16601-78010
6177637061STRENGTH, QUARTER PANEL HORIZONTAL, LOWER CENTER RH
main61776-37061
9011912461
main90119-12461
9017912024
main90179-12024
9155180830
main91551-80830
9167381235
main91673-81235
9415181000
main94151-81000
SH55211028
mainSH552-11028
SH55211040
mainSH552-11040
SH55211050
mainSH552-11050
SZ10510067
mainSZ105-10067
SZ10512023
mainSZ105-12023

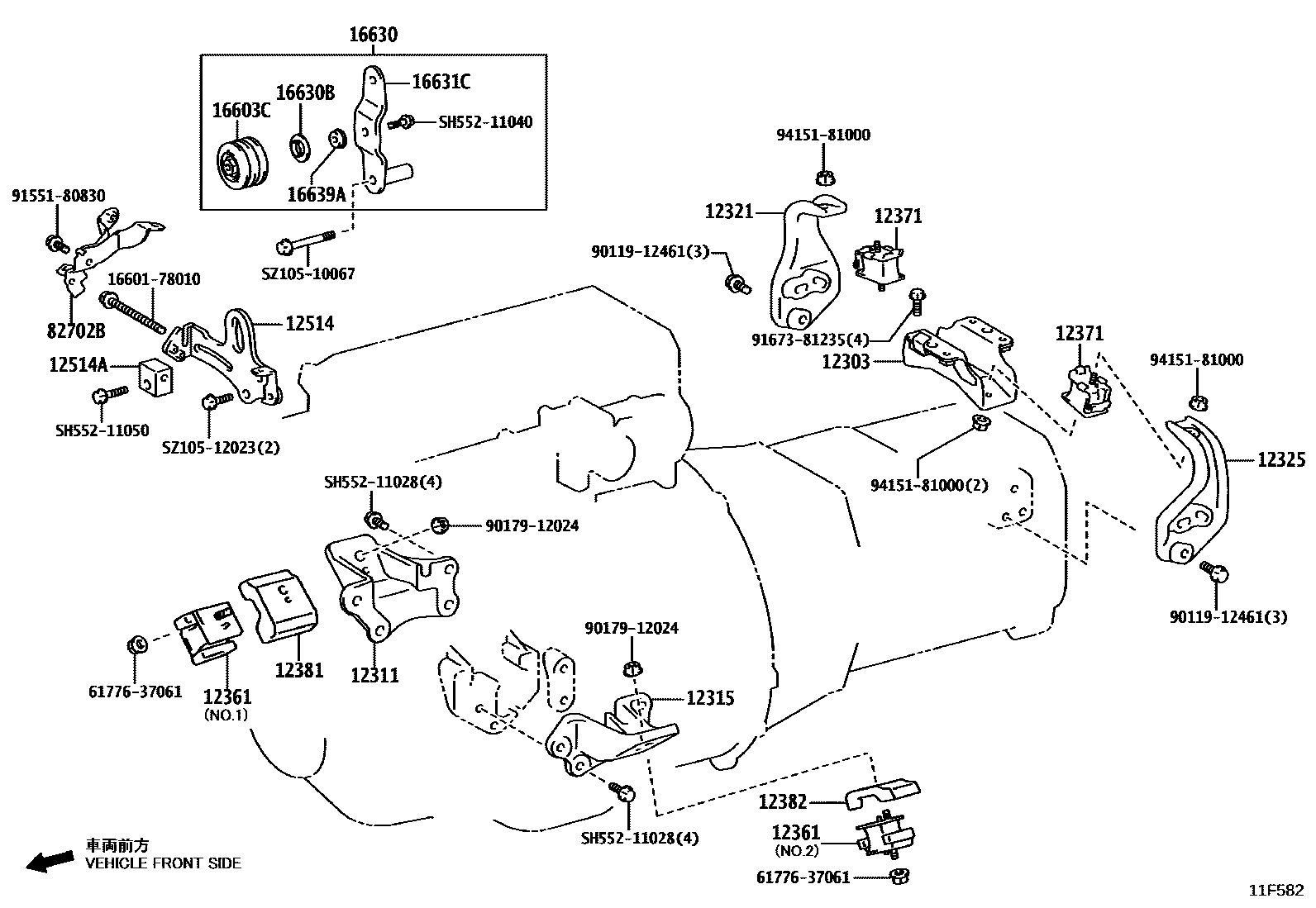

29 parts on this diagram · 1 diagram in section
