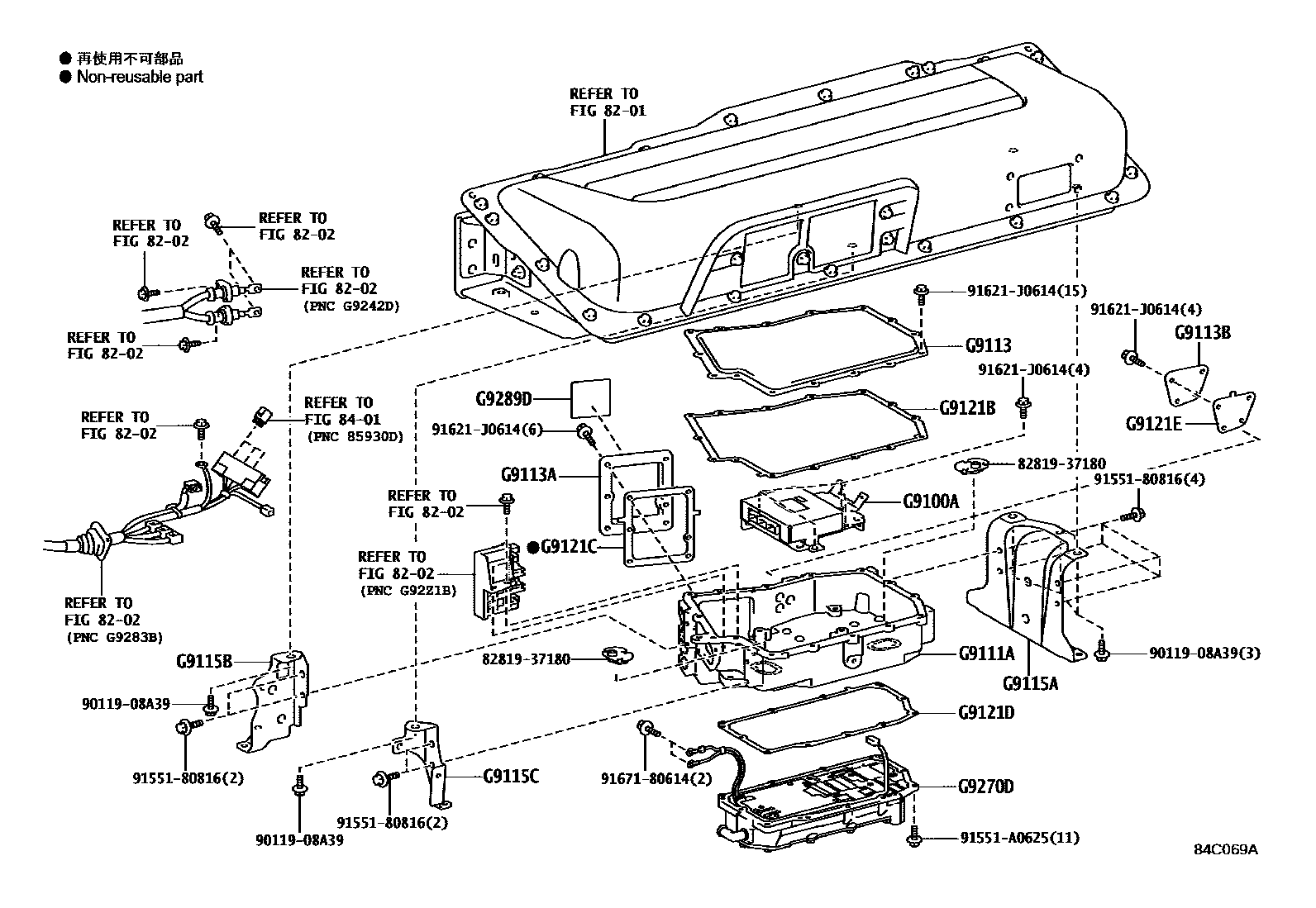

HEV CONTROL COMPUTER

0001 1 0002 1

8201

8202

8401

G9100ACONTROLLER ASSY, EV UNIT

mainG910037020iXKC605,645,655,XKU60#,64#,65#201107-201204

subG9100-37021

mainG910037021iXKC605,645,655,XKU60#,64#,65#201205-201207

subG9100-37022

mainG910037022iXKC605,645,655,XKU60#,64#,65#201208-201212

subG9100-37023

mainG910037023iXKC605,645,655,XKU60#,64#,65#201301-201310

subG9100-37024

mainG910037024iXKC605,645,655,XKU60#,64#,65#201311-201402

subG9100-37025

mainG910037025iXKC605,645,655,XKU60#,64#,65#201403-201406

subG9100-37026

mainG910037026iXKC605,645,655,XKU60#,64#,65#201407-201504

subG9100-37027

mainG910037027iXKC605,645,655,XKU60#,64#,65#201505-201509

subG9100-37028

mainG910037028iXKC605,645,655,XKU60#,64#,65#201510-201604

subG9100-37029

mainG910037029iXKC605,645,655,XKU60#,64#,65#201605-201705

subG9100-37081

mainG910037081iXKC605,645,655,XKU60#,64#,65#..DCRTK201705-201711

mainG910037090iXKC605,645,655,XKU60#,64#,65#..DCRTK201711-201806

subG9100-37091

mainG910037091iXKC605,645,655,XKU60#,64#,65#..DCRTK201807

mainG910037130iXKC605,XKU605,645,655201905-201906

subG9100-37131

mainG910037131iXKC605,XKU605,645,655201906-201908

subG9100-37132

mainG910037132iXKC605,XKU605,645,655201909-202004

subG9100-37133

mainG910037133iXKC605,XKU605,645,655202005-202011

subG9100-37134

mainG910037134iXKC605,XKU605,645,655202012-202102

subG9100-37135

mainG910037135iXKC605,XKU605,645,655202103

G9111ACASE, EV UNIT CONTROLLER

mainG911137021iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9113COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER

mainG911337011iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9113ACOVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.2

mainG911337021iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9113BCOVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.3

mainG911337030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9115ABRACKET, ELECTRIC VEHICLE UNIT CONTROLLER

mainG911537010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

mainG911537050iXKC605,XKU605,645,655201905

G9115BBRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.2

mainG911537020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

mainG911537070iXKC605,XKU605,645,655201905

G9115CBRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.3

mainG911537030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

mainG911537060iXKC605,XKU605,645,655201905

G9121BGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER

mainG912137010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9121CGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.2

mainG912137020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9121DGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.3

mainG912137040iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9121EGASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.4

mainG912137030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9270DCONVERTER ASSY, EV

mainG927037010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

G9289DLABEL, BATTERY CAUTION

mainG928937040iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

8281937180GROMMET, WIRING HARNESS

main82819-37180

9011908A39

main90119-08A39

9155180816

main91551-80816

91551A0625

main91551-A0625

91621J0614

main91621-J0614

9167180614

main91671-80614

23 parts on this diagram · 2 diagrams in section
