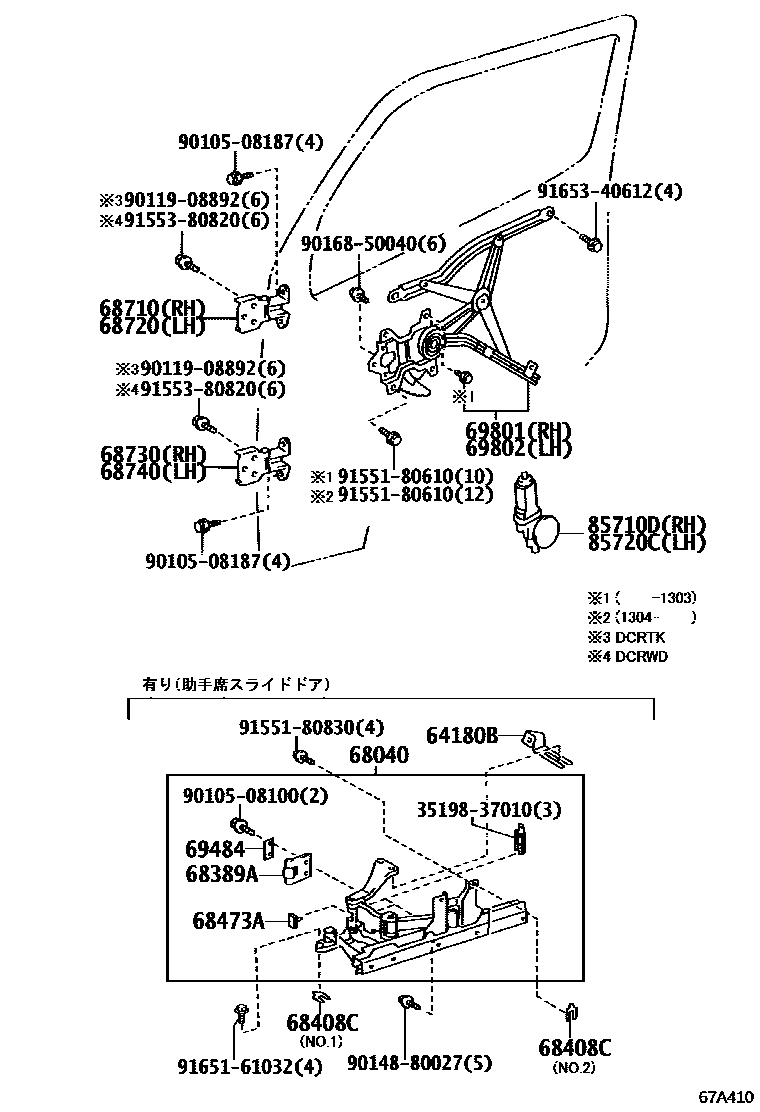

FRONT DOOR WINDOW REGULATOR & HINGE

64180BBRACKET ASSY, REAR MOUNTING, LH

68040GUIDE ASSY, FRONT SLIDE DOOR

main68040-37010

main68040-37011

68389ASPRING, SLIDE DOOR CATCH, LH

68408CSHIM

68473ASTOPPER, FRONT SLIDE DOOR ARM

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iXKU605..IV5201107-201705

main68710-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main68710-37031iXKU650..T3..30T..IV3;XKC605,655,XKU605,655..T4..IV3201107-201705

main68710-37031iXKU650..T3..30T..IV3;XKC605,655,XKU605,655..T4..IV3201107-201705

main68710-37031iXKU600..IV5201705

main68710-37031iXKU650..T3..30T..IV3201107-201705

main68710-37031iXKU605..IV5201905

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iXKC605,XKU605,645,655..CBU,IV3201107-201705

main68730-37031iXKU605..IV5201905

main68730-37031iXKU600..IV5201107-201705

main68730-37031iXKU600..IV5201107-201705

main68730-37031iXKU600..IV5201107-201705

main68730-37031iXKU600..IV5201705

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main68730-37010iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4201107-201705

main68730-37031iXKU645..DCRTK201107-201705

main68730-37031iXKU600..IV5201107-201705

main68730-37031iXKU600..IV5201107-201705

main68730-37031iXKU600..IV5201705

main68730-37031iXKU605..IV5201905

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iXKC605,645,655,XKU60#,64#,65#..DCRTK..(CBU,IV3)201107-201705

main68710-37031iXKC605,XKU60#,645,65#..T4..20T..IV3201107-201705

main68710-37031iXKC605,XKU60#,645,65#..T4..20T..IV3201107-201705

main68710-37031iXKC605,XKU60#,645,65#..T4..20T..IV3201107-201705

main68710-37031iXKU600..IV5201705

main68710-37031iXKU605..IV5201905

69484BASE, SLIDE DOOR OPEN CATCH, LH

main69484-37010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37062iXKC605,645,655,XKU60#,64#,65#201107-201303

sub69801-37063

main69801-37063iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201304-201705

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37062iXKC605,645,655,XKU60#,64#,65#201107-201303

sub69802-37063

main69802-37063iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201304-201705

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37080iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37110iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

3519837010CLAMP, TRANSAXLE APPLY TUBE, NO.4

main35198-37010

9010508100

main90105-08100

9010508187

main90105-08187

9011908892

main90119-08892

9014880027

main90148-80027

9016850040

main90168-50040

9155180610

main91551-80610

9155180830

main91551-80830

9155380820

main91553-80820

9165161032

main91651-61032

9165340612

main91653-40612

25 parts on this diagram · 1 diagram in section
