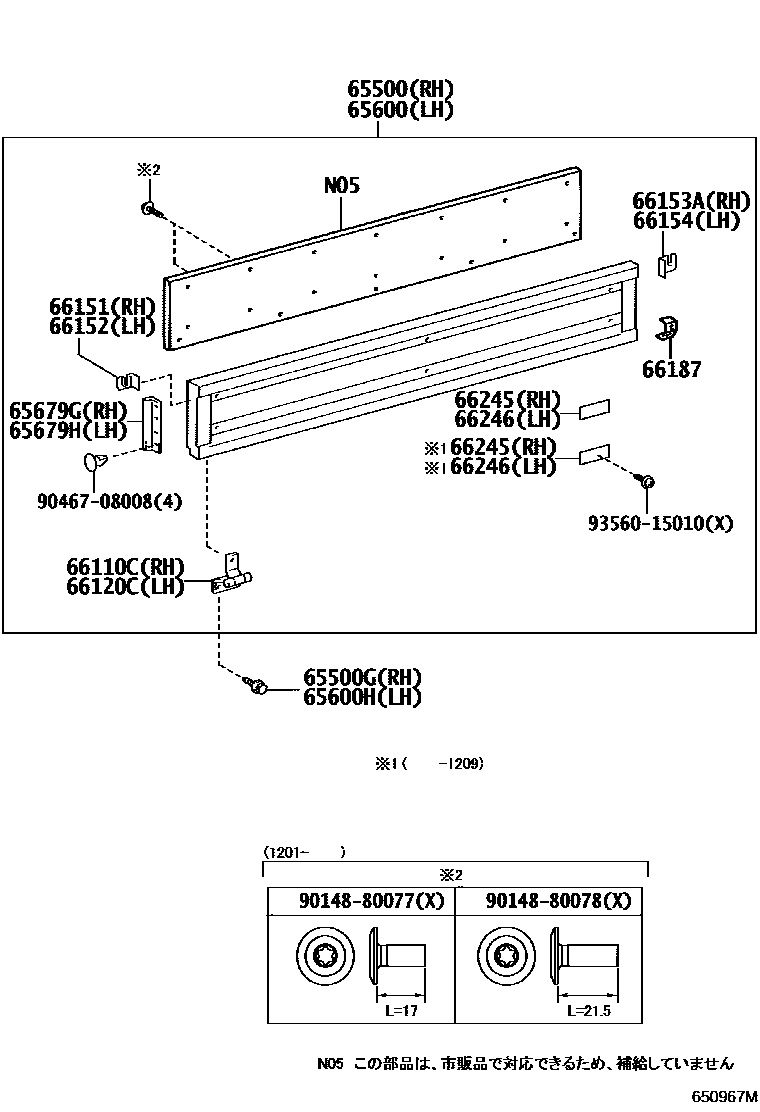

REAR BODY SIDE PANEL

0001 1 0002 1������������ 0003 1������������

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37E71iXKU655..CBU201905

main65500-37F01iXKC605,XKU60#..CBU201107-201112

sub65500-37F02

main65500-37F02iXKC605,XKU60#..CBU201201-201301

sub65500-37K70

main65500-37F51iXKC655,XKU65#..CBU201107-201201

sub65500-37F52

sub66302-37061

sub66996-37011

main65500-37F52iXKU655..CBU;XKC655,XKU650..T4..CBU201201-201705

sub65500-37E71

main65500-37K70iXKU605..30T201905

main65500-37M60iXKU600..T5..30T..CBU;XKC605,XKU60#..T4..CBU201301-201705

sub65500-37K70

65500GBOLT, W/WASHER(FOR SIDE GATE, RH)

main90119-08464iXKC655,XKU65#..CBU201107-201705

main91551-80820iXKC605,XKU605..CBU201905

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-37D61iXKU655..CBU201905

main65600-37F01iXKC605,XKU60#..CBU201107-201112

sub65600-37F02

main65600-37F02iXKC605,XKU60#..CBU201201-201301

sub65600-37F90

main65600-37F51iXKC655,XKU65#..CBU201107-201201

sub65600-37F52

sub66302-37061

sub66996-37011

main65600-37F52iXKC655,XKU65#..DCRTK..CBU201201-201705

sub65600-37D61

main65600-37F90iXKU605..30T201905

main65600-37M60iXKU600..T5..30T..CBU;XKC605,XKU60#..T4..CBU201301-201705

sub65600-37F90

65600HBOLT, W/WASHER(FOR SIDE GATE, LH)

main90119-08464iXKC645,XKU64#201107-201705

main91551-80820iXKU605,645..30T201905

65679GSEAL, SIDE GATE

main65679-37011iXKU650..T3..CBU;XKC655,XKU60#..(T3,T5)..20T..CBU201107-201505

main65679-37011iXKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU201107-201705

main65679-37011iXKC605,XKU605,655..CBU201905

65679HSEAL, SIDE GATE

main65679-37011iXKU650..T3..CBU;XKC655,XKU60#..(T3,T5)..20T..CBU201107-201505

main65679-37011iXKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU201107-201705

main65679-37011iXKC605,XKU605,655..CBU201905

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37070iXKC605,XKU60#..CBU201107-201112

sub65010-37071

main65010-37071iXKU60#..T5..20T..CBU201201-201505

main65010-37071iXKU600..T5..30T..CBU;XKC605,XKU60#..T4..CBU201201-201705

main65010-37071iXKC605,XKU605..CBU201905

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37070iXKC605,XKU60#..CBU201107-201112

sub65010-37071

main65010-37071iXKU60#..T5..20T..CBU201201-201505

main65010-37071iXKU600..T5..30T..CBU;XKC605,XKU60#..T4..CBU201201-201705

main65010-37071iXKC605,XKU605..CBU201905

66151LATCH, SIDE GATE FEMALE, RH

main66151-37030iXKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU201107-201705

main66151-37030iXKU650..T3..CBU;XKC655,XKU60#..(T3,T5)..20T..CBU201107-201505

main66151-37030iXKC605,XKU605,655..CBU201905

66152LATCH, SIDE GATE FEMALE, LH

main66152-37030iXKC645,XKU64#201107-201705

main66152-37030iXKC605,XKU605,655..CBU201905

main66152-37030iXKU650..T3..CBU;XKC655,XKU60#..(T3,T5)..20T..CBU201107-201505

66153ALATCH, TAIL GATE FEMALE, RH

main66153-37010iXKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU201107-201705

main66153-37010iXKC605,XKU605,655..CBU201905

main66153-37010iXKU650..T3..CBU;XKC655,XKU60#..(T3,T5)..20T..CBU201107-201505

66154LATCH, TAIL GATE FEMALE, LH

main66154-37010iXKU650..T3..CBU;XKC655,XKU60#..(T3,T5)..20T..CBU201107-201505

main66154-37010iXKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU201107-201705

main66154-37010iXKU605,645..30T201905

66187HANDLE, SIDE GATE LATCH, CENTER NO.2

main66187-37040iXKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU201107-201705

main66187-37040iXKU600..T5..30T..CBU;XKC655,XKU650..T4..CBU;XKC605,XKU60#,655..(T3,T4)..CBU201107-201705

main66187-37040iXKC605,XKU605,655..CBU201905

main66187-37050iXKU605,645..30T201905

main66187-37050iXKC605,655,XKU60#,65#..DCRTK..CBU201107-201705

main66187-37050iXKC605,655,XKU60#,65#..DCRTK..CBU201107-201705

66245PROTECTOR, REAR BODY, NO.3 RH

main66243-37060iXKC655,XKU65#..CBU201107-201705

main66243-37060iXKC655,XKU65#..CBU201107-201209

main66243-37060iXKC605,XKU605..CBU201905

66246PROTECTOR, REAR BODY, NO.3 LH

main66243-37060iXKC605,XKU60#..CBU201107-201705

main66243-37060iXKC655,XKU65#..CBU201107-201209

main66243-37060iXKC605,XKU605..CBU201905

9014880077

main90148-80077

9014880078

main90148-80078

9046708008

main90467-08008

9356015010

main93560-15010

19 parts on this diagram · 3 diagrams in section
