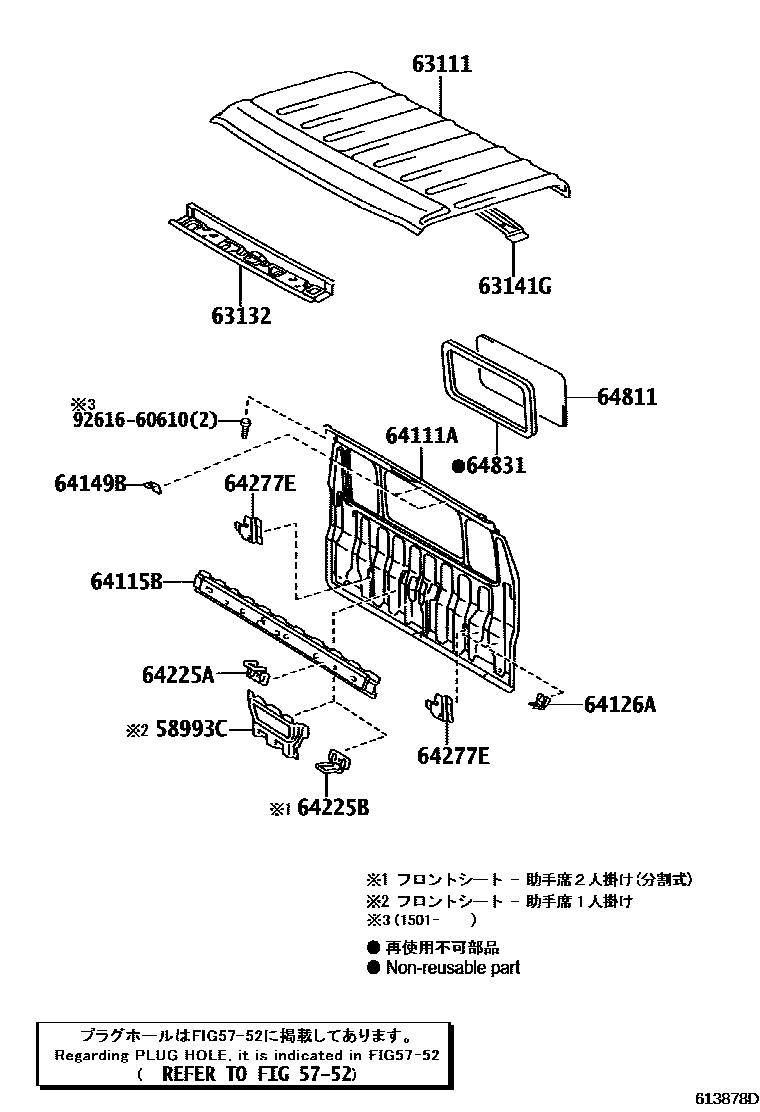

ROOF PANEL & BACK PANEL

0001 1 0002 1����������� 0003 1���������

5752

58993CBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-37050iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..T4201107-201705

63111PANEL, ROOF

main63111-37120iXKC655..T3..IV3201107-201505

main63111-37131iXKC605,XKU60#..IV3201107-201111

main63111-37132iXKU645,655;XKU605..IV5201905

main63111-37311iXKC605,XKU60#..IV3201107-201111

main63111-37312iXKC605,XKU60#..DCRTK..IV3201705

63132PANEL, WINDSHIELD HEADER, INNER

main63132-37071iXKU600..IV5;XKC645,655,XKU64#,65#..IV3201107-201412

main63132-37072iXKU600..IV5;XKC645,655,XKU64#,65#..IV3201412-201604

main63132-37073iXKU600..IV5;XKC645,655,XKU64#,65#..DCRTK..IV3201705-201811

main63132-37074iXKC605,XKU605..T4201905

sub63109-37050

main63132-37082iXKC605,XKU60#..IV3201107-201412

main63132-37083iXKC605,XKU60#..IV3201412-201604

main63132-37084iXKC605,XKU60#..IV3201605-201705

main63132-37085iXKC605,XKU60#..DCRTK..IV3201812

sub63132-37086

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37060iXKU600..IV5;XKC645,655,XKU64#,65#..DCRTK..IV3201705-201901

main63141-37061iXKU600..IV5;XKC645,655,XKU64#,65#..DCRTK..IV3201902

main63141-37070iXKC655..T3;XKU650..T3..CBU201107-201505

64111APANEL, BACK

main64111-37374iXKC605,645,655,XKU60#,64#,65#201107-201410

main64111-37375iXKC605,645,655,XKU60#,64#,65#201410-201501

main64111-37376iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

64115BREINFORCEMENT, BACK PANEL

main64115-25040iXKC605,645,655,XKU60#,64#,65#201607-201705

main64115-37124iXKC605,645,655,XKU60#,64#,65#201107-201607

64126ABRACKET, UPPER BACK PANEL, LH

main64125-37030×2iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

64149BRETAINER, BACK PANEL HEADREST

main64149-37010×2iXKC605,645,655,XKU60#,64#,65#201107-201705

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64209-37010iXKC605,645,655,XKU60#,64#,65#201107-201705

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64209-37030iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37020×2iXKC605,645,655,XKU60#,64#,65#201107-201705

64811GLASS, BACK WINDOW

main64811-37120supersedes 64811-37210iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37041iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

9261660610

main92616-60610

15 parts on this diagram · 3 diagrams in section
