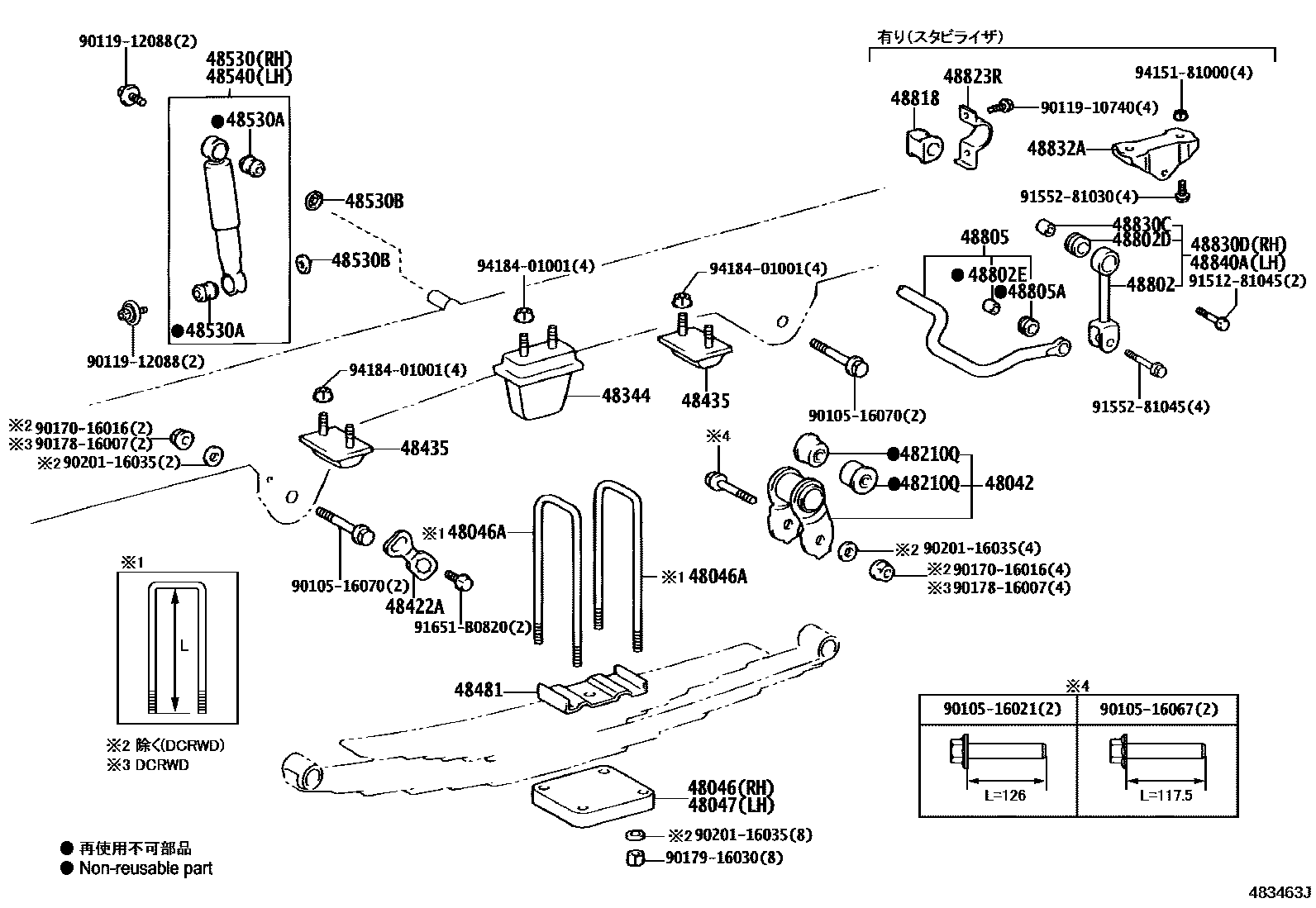

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1MAIN 2+HELPER 2-LEAF 0004 1MAIN 3+HELPER 2-LEAF 0005 13-LEAF 0006 13-LEAF 0007 16-LEAF 0008 16-LEAF 0009 1MAIN 2+HELPER 1-LEAF,TYPE E 0010 1MAIN 2+HELPER 2-LEAF,TYPE B 0011 13-LEAF,TYPE A 0012 13-LEAF,TYPE B

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-37080iXKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4201107-201705

main48473-37180iXKC655,XKU640,65#..DCRTK201107-201705

48046ABOLT, U(FOR REAR SPRING)

main90117-16018iXKU645,655..30T201905

main90117-16022iXKC655,XKU65#..20T..DCRTK201107-201705

main90117-16024iXKU650..T3..30T..CBU201107-201705

main90117-16067iXKU605..IV5201107-201705

main90117-16069iXKC605,XKU605..T4201905

main90117-16077iXKU60#..T5..20T..CBU201107-201705

main90117-16142iXKU655..20T201905

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-37080iXKU605..IV3;XKU600..T5..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKC605,645,XKU600,645..DM6,T4201107-201705

main48473-37180iXKC655,XKU640,65#..DCRTK201107-201705

48210SPRING ASSY, REAR RH

main48210-37380iXKU655;XKC655..T4201107-201510

sub48210-37381

main48210-37381iXKC655,XKU655201511-201705

main48210-37640iXKU600..30T201107-201502

sub48210-37641

main48210-37641iXKU600..30T201503-201705

main48210-37710iXKU640,650..T4..30T201107-201705

main48210-37830iXKU640,650..T3..30T..IV3201107-201705

main48210-37B30iXKU650..T3..20T..CBU201107-201510

sub48210-37B31

main48210-37B31iXKU650..20T201511-201705

main48210-37C20iXKC605,645,XKU60#,645..20T..(CBU,IV3)201107-201504

sub48210-37C21

main48210-37C21iXKC605,645,XKU60#,645..20T..DCRTK..(CBU,IV3)201505-201705

main48210-37Q40iXKU655..20T201905

main48210-37Q70iXKU645,655..30T201905

main48210-37S70iXKC605,XKU605..T4..20T201905

main48210-37T60iXKU605..30T201905

main48210-37U10iXKU605..IV5201905

main48210-3V600iXKU600..IV5201107-201510

sub48210-3V601

main48210-3V601iXKU600..IV5201511-201705

48210QBUSH(FOR REAR SPRING SHACKLE)

main90389-16026iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

48344STOPPER, BUMPER, REAR

main48344-37050iXKU600..30T;XKU600..IV5201107-201705

main48344-37090iXKU655..20T201107-201705

main48344-37170iXKU605..IV3;XKU605..T4..CBU;XKU600..T5..20T..IV3;XKC605,645,XKU600,645..T4..20T201107-201705

main48344-37200iXKU650..T3..30T..CBU201107-201705

48422ASUPPORT, REAR SPRING PIN

main48422-36090iXKC605,645,XKU60#,645..DCRTK201107-201705

main48422-37010iXKC655,XKU640,65#201107-201705

48435ATTACHMENT, HELPER SPRING BRACKET, NO.1

main48435-36050iXKC655,XKU640,65#..DCRTK201107-201705

48481SEAT, REAR SPRING, UPPER

main48481-37081iXKC655,XKU640,65#201107-202102

sub48481-37082

main48481-37082iXKU645,655202103

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80673iXKC655,XKU640,65#201107-201507

sub48531-80796

main48531-80744iXKC605,645,XKU60#,645..20T..(CBU,IV3)201107-201507

sub48531-80800

main48531-80770iXKU600..30T;XKU600..IV5201107-201507

sub48531-80795

main48531-80795iXKU600..30T;XKU600..IV5201507-202104

main48531-80796iXKC655,XKU640,65#..DCRTK201507-201909

sub48531-80833

main48531-80800iXKC605,645,XKU60#,645..20T..(CBU,IV3)201507-202104

main48531-80833iXKU645,655201909-202104

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19011iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80673iXKC655,XKU640,65#201107-201507

sub48531-80796

main48531-80744iXKC605,645,XKU60#,645..20T..(CBU,IV3)201107-201507

sub48531-80800

main48531-80770iXKU600..30T;XKU600..IV5201107-201507

sub48531-80795

main48531-80795iXKU600..30T;XKU600..IV5201507-202104

main48531-80796iXKU645,655201507-201909

sub48531-80833

main48531-80800iXKC605,645,XKU60#,645..20T..(CBU,IV3)201507-202104

main48531-80833iXKU645,655201909-202104

48802LINK SUB-ASSY, STABILIZER

main48802-37010iXKU600..30T;XKU600..IV5201107-201705

48802DBUSH, STABILIZER LINK

main90385-13009iXKU600..30T;XKU600..IV5201107-201705

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10044iXKU600..30T;XKU600..IV5201107-201705

48805BAR SUB-ASSY, REAR STABILIZER

main48805-37030iXKU600..30T;XKU600..IV5201107-201705

48805ABUSH(FOR REAR STABILIZER BAR)

main90385-13009iXKU600..30T;XKU600..IV5201107-201705

48818BUSH, STABILIZER, REAR

main48815-37060iXKU600..30T;XKU600..IV5201107-201705

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-37011iXKU600..30T;XKU600..IV5201107-201705

48830CSPACER(FOR REAR STABILIZER LINK)

main90560-10044iXKU600..30T;XKU600..IV5201107-201705

48830DLINK ASSY, REAR STABILIZER, RH

main48830-37010iXKU600..30T;XKU600..IV5201107-201705

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-37020iXKU600..30T;XKU600..IV5201107-201705

48840ALINK ASSY, REAR STABILIZER, LH

main48830-37010iXKU600..30T;XKU600..IV5201107-201705

9010516021

main90105-16021

9010516067

main90105-16067

9010516070

main90105-16070

9011910740

main90119-10740

9011912088

main90119-12088

9017016016

main90170-16016

9017816007

main90178-16007

9017916030

main90179-16030

9020116035

main90201-16035

9151281045

main91512-81045

9155281030

main91552-81030

9155281045

main91552-81045

91651B0820

main91651-B0820

9415181000

main94151-81000

9418401001

main94184-01001

40 parts on this diagram · 12 diagrams in section
