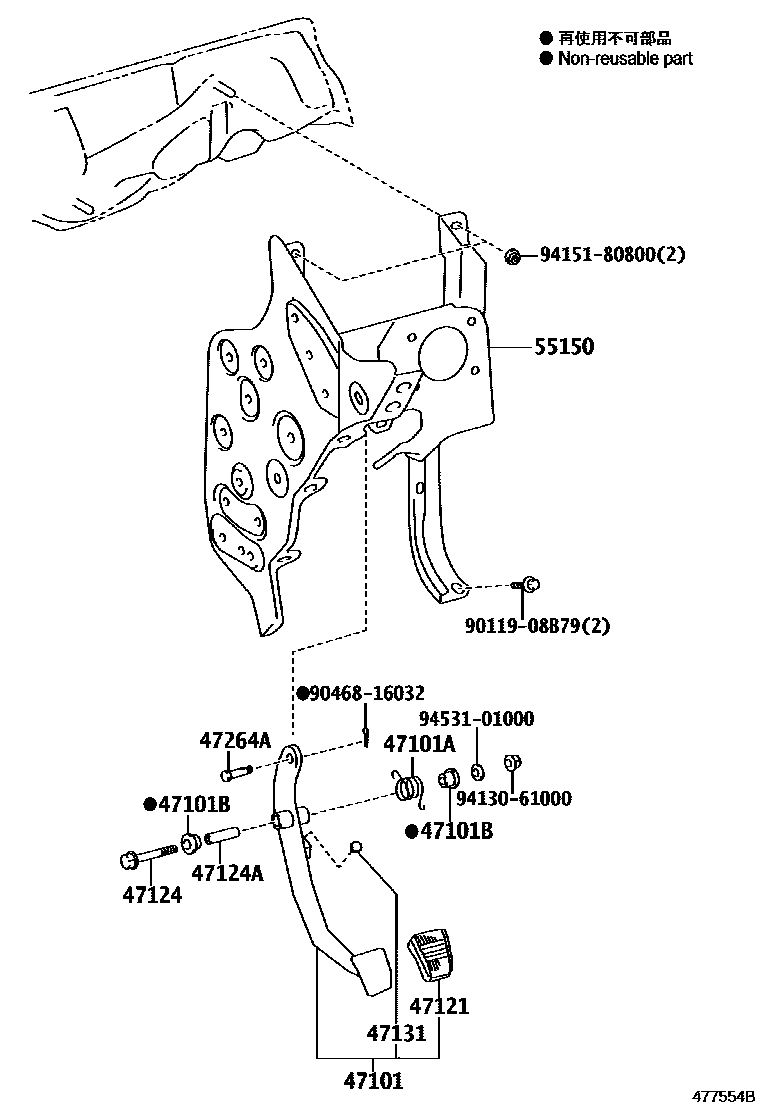

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-37120iXKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201704

sub47101-37121

main47101-37121iXKU60#,64#,65#..DCRTK201705

main47101-37130iXKC655..T3201107-201705

sub47101-37131

main47101-37131iXKC605,645,655..DCRTK201705

main47101-37150iXKU605,645,655201905

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iXKC605,645,655,XKU60#,64#,65#..DCRTK201110-201705

main90508-35324iXKC605,645,655,XKU60#,64#,65#201107-201109

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

47121PAD, BRAKE PEDAL

main31321-14020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main31321-52020iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

47124SHAFT, BRAKE PEDAL

main91112-61070iXKC605,XKU605,645,655201107-201705

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

47264APIN(FOR PUSH ROD)

main90240-10037iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

55150BRACKET ASSY, PEDAL

main55150-37240iXKU60#,64#,65#201107-201209

sub55150-37241

main55150-37241iXKU60#,64#,65#201210-201408

main55150-37250iXKC605,645,655201107-201209

sub55150-37251

main55150-37251iXKC605,645,655201210-201408

main55150-37310iXKU650..T4;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKU600,64#,655..DM6,T3,T4201408-201705

main55150-37320iXKC605,645,655..T4201408-201705

main55150-37450iXKU605,645,655201905

sub55150-37451

main55150-37460iXKC605201905

sub55150-37461

9011908B79

main90119-08B79

9046816032

main90468-16032

9413061000

main94130-61000

9415180800

main94151-80800

9453101000

main94531-01000
