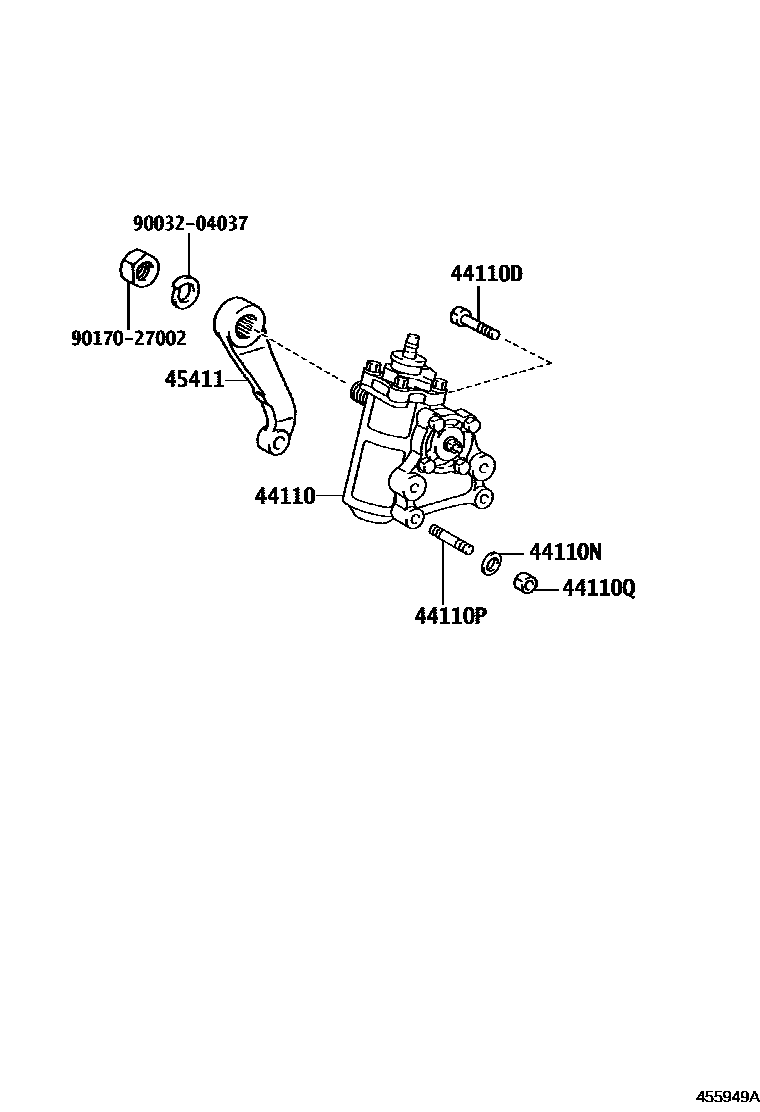

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44110GEAR ASSY, POWER STEERING

main44110-37270iXKU600,640,650201107-201705

main44110-37271iXKU600,640,650201711

44110DBOLT(FOR POWER STEERING GEAR)

main91554-L1475×2iXKU600,640,650201705

44110NWASHER, PLAIN(FOR POWER STEERING GEAR)

main94622-51400×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

44110PBOLT, STUD(FOR POWER STEERING GEAR)

main90116-14020×2iXKU650..T4;XKU600..T5..30T..CBU;XKU600,640..DM6,T3,T4;XKU600,650..(T3,T5)..IV3201107-201705

44110QNUT, FLANGE(FOR POWER STEERING GEAR)

main90178-14008×2iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

45411ARM, PITMAN

main45411-37261iXKU650..T3..CBU;XKU600..T5..20T..CBU201107-201505

9003204037

main90032-04037

9017027002

main90170-27002

8 parts on this diagram · 3 diagrams in section
