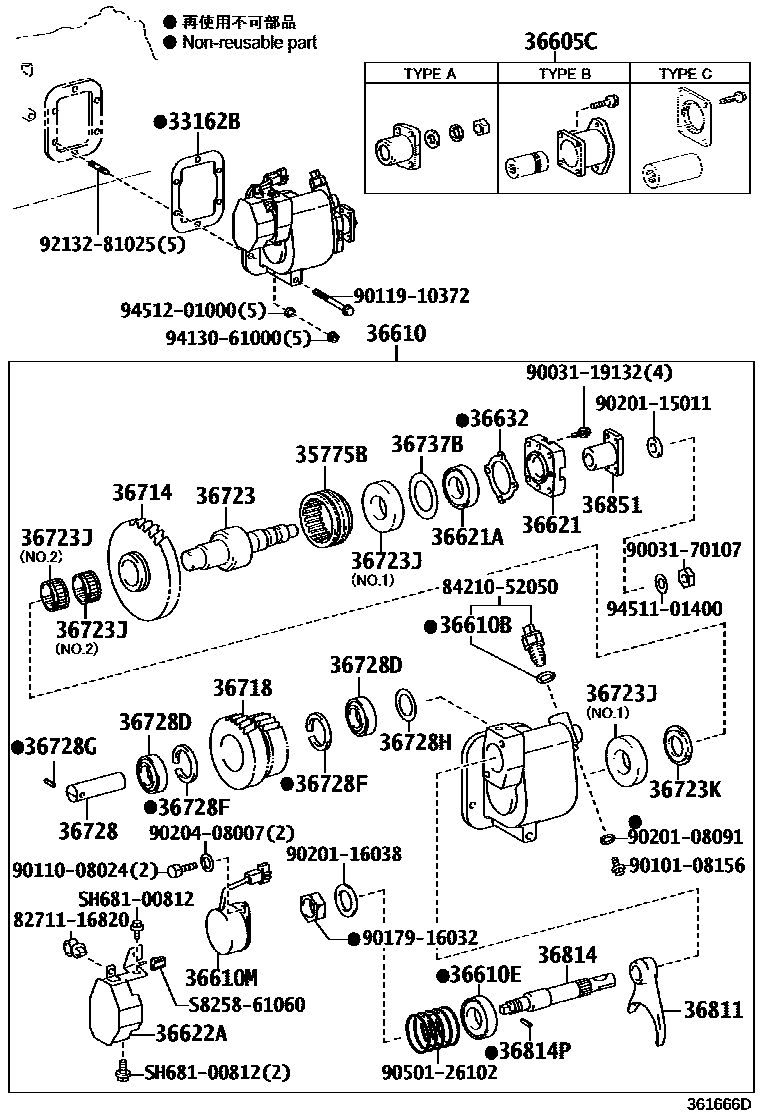

POWER TAKE-OFF CASE & GEAR
33162BGASKET, POWER TAKE-OFF COVER
36605CPOWER TAKE-OFF SET
36610BGASKET, SEAT (FOR POWER TAKE-OFF)
36610ESEAL, OIL (FOR POWER TAKE-OFF)
36610MSOLENOID ASSY, POWER TAKE-OFF
36621RETAINER, POWER TAKE-OFF BEARING
36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
36622ACOVER, POWER TAKE-OFF
36632GASKET, POWER TAKE-OFF JOINT RETAINER
36714GEAR, POWER TAKE-OFF OUTPUT
36718GEAR, POWER TAKE-OFF IDLER
36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723KCOLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)
36728SHAFT, POWER TAKE-OFF IDLER
36728DBEARING (FOR POWER TAKE-OFF IDLER SHAFT)
36728FRING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)
36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)
36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
36811FORK, POWR TAKE-OFF SHIFT, NO.1
36814SHAFT, POWR TAKE-OFF FORK, NO.1
36851RETAINER, POWER TAKE-OFF JOINT
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8421052050SWITCH ASSY, BACK-UP LAMP
main84210-52050
9003119132
main90031-19132
9003170107
main90031-70107
9010108156
main90101-08156
9011008024
main90110-08024
9011910372
main90119-10372
9017916032
main90179-16032
9020108091
main90201-08091
9020115011
main90201-15011
9020116038
main90201-16038
9020408007
main90204-08007
9050126102
main90501-26102
9213281025
main92132-81025
9413061000
main94130-61000
9451101400
main94511-01400
9451201000
main94512-01000
S825861060
mainS8258-61060
SH68100812
mainSH681-00812
45 parts on this diagram · 2 diagrams in section
