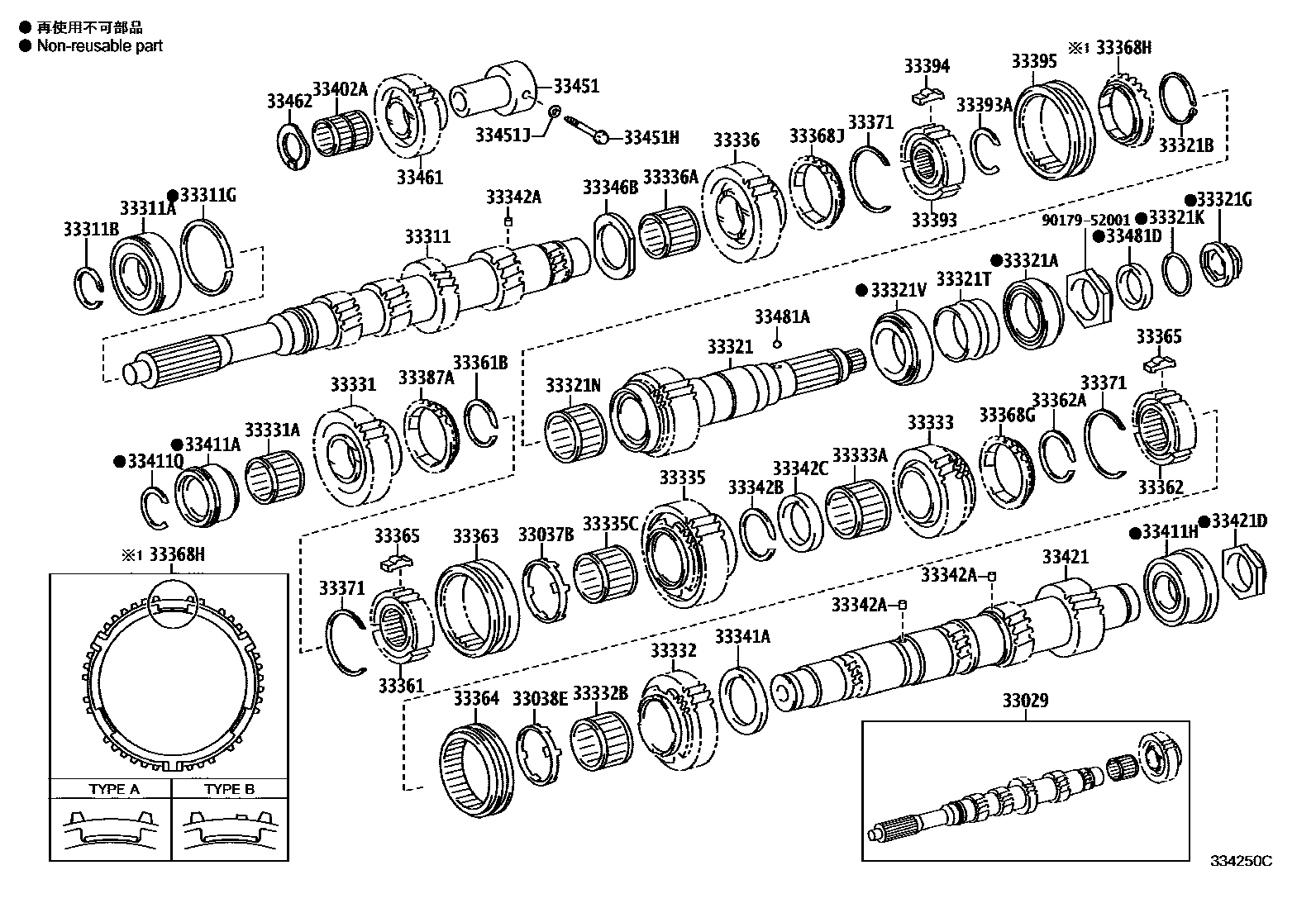

TRANSMISSION GEAR (MTM)

0001 1M550 0002 1RE62 0003 1RE62

33029SHAFT SET, INPUT

main33029-37060iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33037BRING SET, SYNCHRONIZER, NO.1

main33037-37050iXKC605,645,655,XKU60#,64#,65#201107-201705

33038ERING SET, SYNCHRONIZER, NO.2

main33038-37040iXKC605,645,655,XKU60#,64#,65#201107-201705

33311SHAFT, INPUT

main33301-37280iXKC605,XKU605,645,655201905

main33311-37310iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-45032iXKC605,XKU605,645,655201905

main90363-47001iXKC605,645,655,XKU60#,64#,65#201107-201705

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-42002iXKC605,XKU605,645,655201905

main90520-42003iXKC605,XKU605,645,655201905

main90520-42004iXKC605,XKU605,645,655201905

main90520-42005iXKC605,XKU605,645,655201905

main90520-42006iXKC605,XKU605,645,655201905

main90520-42007iXKC605,XKU605,645,655201905

main90520-42022iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-42023iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90520-42024iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90520-42025iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-42026iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-42027iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-76001iXKC605,XKU605,645,655201905

main90520-99009iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33321SHAFT, OUTPUT

main33302-36010iXKC605,645,655,XKU60#,64#,65#..DCRTK201810

main33302-37030iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201810

sub33302-36010

main33321-37150iXKC605,XKU605,645,655201905

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-41006iXKC605,XKU605,645,655201905

main90363-42002iXKC605,XKU605,645,655201905

main90366-55057iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90521-58001iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90521-95002iXKC605,XKU605,645,655201905

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-24008iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)

main90301-31003iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90364-30017iXKC605,XKU605,645,655201905

main90364-38021iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33321TSPACER (FOR OUTPUT SHAFT)

main35775-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90560-30015iXKC605,XKU605,645,655201905

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90365-50004iXKC605,XKU605,645,655201905

main90366-55060iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33331GEAR, REVERSE

main33425-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33331ABEARING (FOR REVERSE GEAR)

main90364-43010iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33332GEAR, 2ND

main33424-37040iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-54010iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33333GEAR, 3RD

main33034-37110iXKC605,XKU605,645,655201905

main33044-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-54011iXKC605,645,655,XKU60#,64#,65#201107-201706

main90364-54012iXKC605,645,655,XKU60#,64#,65#..DCRTK201706

main90364-62001iXKC605,XKU605,645,655201905-202104

33335GEAR, 1ST

main33335-37120iXKC605,XKU605,645,655201905

main33426-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-49004iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90364-62001iXKC605,XKU605,645,655201905-202104

33336GEAR, 5TH

main33336-37070iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-48008iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90364-48009iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90364-48010iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90364-48011iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90364-48012iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33341AWASHER, 2ND GEAR THRUST

main33341-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)

main90250-04056iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)

main90520-45021iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-45022iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-45023iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-45024iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-45025iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-45026iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33342CWASHER, 3RD GEAR THRUST

main33342-37010iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201606

main33342-37020iXKC605,645,655,XKU60#,64#,65#201607-201705

33346BWASHER, 5TH GEAR THRUST

main33346-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-37060iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)

main90520-40013iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-40014iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-40015iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-40016iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90520-40017iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-40018iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-37030iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-50010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90520-50011iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90520-50012iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-50013iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-50014iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-50015iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-37060iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-37051iXKC605,645,655,XKU60#,64#,65#201107-201209

sub33364-37052

main33364-37052iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201209-201705

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-37050iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33368GRING, SYNCHRONIZER (FOR 3RD GEAR)

main33369-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33368HRING, SYNCHRONIZER (FOR 4TH GEAR)

main33381-37050iXKC605,645,655,XKU60#,64#,65#201107-201209

sub33381-37051

main33381-37051iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201209-201705

33368JRING, SYNCHRONIZER (FOR 5TH GEAR)

main33396-36010iXKC605,645,655,XKU60#,64#,65#201506-201705

main33396-37020iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201506

sub33396-36010

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-37040iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33387ARING, REVERSE SYNCHRONIZER

main33387-37030iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-37050iXKC605,645,655,XKU60#,64#,65#201107-201209

sub33393-37051

main33393-37051iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201209-201705

33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)

main90520-39032iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-39033iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-39034iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90520-39035iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-39036iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-39037iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-41024iXKC605,XKU605,645,655201905

main90520-41025iXKC605,XKU605,645,655201905

main90520-41026iXKC605,XKU605,645,655201905

main90520-41027iXKC605,XKU605,645,655201905

main90520-41028iXKC605,XKU605,645,655201905

main90520-41029iXKC605,XKU605,645,655201905

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33394-36030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201309-201705

main33394-37020iXKC605,645,655,XKU60#,64#,65#201107-201309

sub33394-36030

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-36050iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201309-201705

main33395-37030iXKC605,645,655,XKU60#,64#,65#201107-201309

sub33395-36050

33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)

main90364-28010iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90363-30085iXKC605,XKU605,645,655201905

main90365-38006iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-40075iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90365-27004iXKC605,XKU605,645,655201905

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-27053iXKC605,XKU605,645,655201905

main90520-27054iXKC605,XKU605,645,655201905

main90520-27055iXKC605,XKU605,645,655201905

main90520-27056iXKC605,XKU605,645,655201905

main90520-27057iXKC605,XKU605,645,655201905

main90520-27058iXKC605,XKU605,645,655201905

main90520-27100iXKC605,XKU605,645,655201905

main90520-27101iXKC605,XKU605,645,655201905

main90520-34018iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main90520-34019iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main90520-34020iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-34021iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-34022iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

main90520-34023iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33421GEAR, COUNTER

main33421-37140iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33421-37210iXKC605,XKU605,645,655201905

33421DNUT(FOR COUNTER GEAR REAR)

main90179-36007iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33451SHAFT, REVERSE IDLER GEAR

main33451-37030iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33451-37070iXKC605,XKU605,645,655201905

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90105-10530iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08010iXKC605,XKU605,645,655201905

main90430-10021iXKU640,655;XKU605..IV3;XKU605..T4..CBU;XKU600..T5..30T..CBU;XKU600,650..(T3,T5)..IV3;XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

33461GEAR, REVERSE IDLER

main33461-37040iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33461-37060iXKC605,XKU605,645,655201905

33462WASHER, REVERSE IDLER THRUST

main33462-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33462-37020iXKC605,XKU605,645,655201905

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-05012iXKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-37040iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201705

main33487-37060iXKC605,XKU605,645,655201905

9017952001

main90179-52001

60 parts on this diagram · 3 diagrams in section
