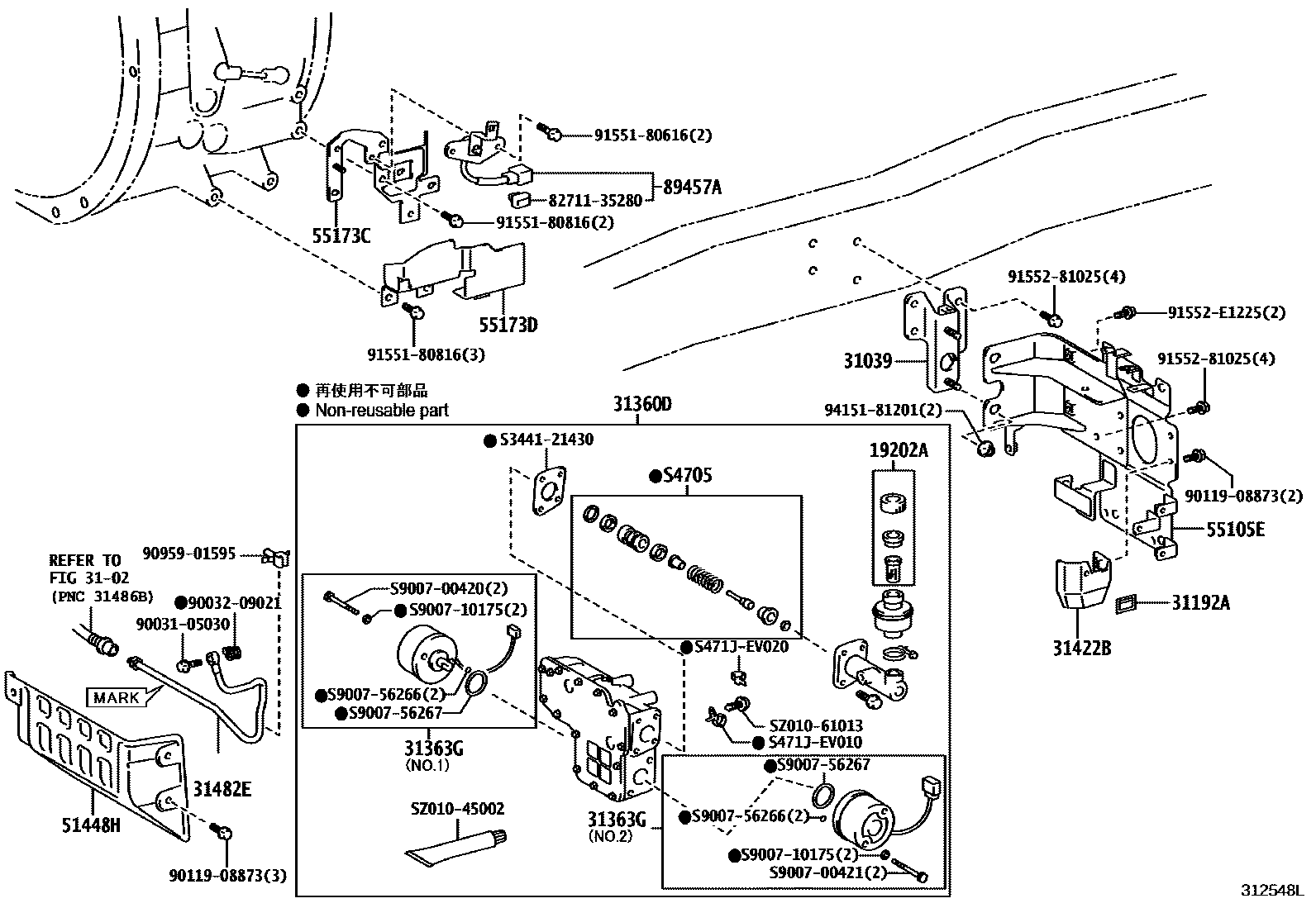

FREE TRONIC

0001 1 0002 1

19202ACAP KIT(FOR CLUTCH ACTUATOR)

main19202-EV010iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

3102

31039SUPPORT SUB-ASSY, CLUTCH RELEASE SECTOR

main31039-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main31039-37021iXKC605,XKU605,645,655201905

31192ALABEL, CLUTCH NOTICE

main31192-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

31360DACTUATOR ASSY, CLUTCH

main31360-37011iXKC605,645,655,XKU60#,64#,65#201107-201307

main31360-37012iXKC605,645,655,XKU60#,64#,65#201308-201402

main31360-37013iXKC605,645,655,XKU60#,64#,65#201402-201409

main31360-37014iXKC605,645,655,XKU60#,64#,65#201410-201501

main31360-37015iXKC605,645,655,XKU60#,64#,65#201502-201505

main31360-37018iXKC605,645,655,XKU60#,64#,65#201505-201705

main31360-37020iXKC605,XKU605,645,655201905

31363GMOTOR, CLUTCH ACTUATOR

main31363-37010iXKC605,XKU605,645,655201905

main31363-EV010iXKC605,645,655,XKU60#,64#,65#201107-201308

main31363-EV011iXKC605,645,655,XKU60#,64#,65#201308-201402

main31363-EV012iXKC605,645,655,XKU60#,64#,65#201402-201410

main31363-EV013iXKC605,645,655,XKU60#,64#,65#201410-201505

main31363-EV014iXKC605,645,655,XKU60#,64#,65#201505-201705

main31363-EV030iXKC605,645,655,XKU60#,64#,65#201107-201308

main31363-EV031iXKC605,645,655,XKU60#,64#,65#201308-201402

main31363-EV032iXKC605,645,655,XKU60#,64#,65#201402-201410

main31363-EV033iXKC605,645,655,XKU60#,64#,65#201410-201505

main31363-EV034iXKC605,645,655,XKU60#,64#,65#201505-201705

main31363-EV110iXKC605,645,655,XKU60#,64#,65#..DCRTK201705

31422BBRACKET, CLUTCH RESERVOIR

main31422-37010iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main31422-37020iXKC605,XKU605,645,655201905

31482ETUBE, CLUTCH RELEASE, NO.1

main31482-37401iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main31482-37431iXKC605,XKU605,645,655201905

51448HPROTECTOR, MOTOR UNDER SIDE

main51448-37160iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

main51448-37300iXKC605,XKU605,645,655201905

55105ESUPPORT SUB-ASSY, CLUTCH MASTER CYLINDER

main55105-37081iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

55173CBRACKET, ELECTRICAL PART

main55173-37270iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

55173DBRACKET, ELECTRICAL PART, NO.2

main55173-37280iXKC605,645,655,XKU60#,64#,65#201107-201109

main55173-37281iXKC605,645,655,XKU60#,64#,65#201110-201405

main55173-37282iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201406-201505

main55173-37283iXKC605,645,655,XKU60#,64#,65#..DCRTK201707

89457ASTROKE SENSOR, CLUTCH

main89457-37020iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

S4705REPAIR KIT, CUP

mainS470591370iXKC655..T3;XKU650..T3..CBU;XKU60#..T5..20T..CBU201107-201505

8271135280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35280

9003105030

main90031-05030

9003209021

main90032-09021

9011908873

main90119-08873

9095901595

main90959-01595

9155180616

main91551-80616

9155180816

main91551-80816

9155281025

main91552-81025

91552E1225

main91552-E1225

9415181201

main94151-81201

S344121430

mainS3441-21430

S471JEV010

mainS471J-EV010

S471JEV020

mainS471J-EV020

S900700420

mainS9007-00420

S900700421

mainS9007-00421

S900710175

mainS9007-10175

S900756266

mainS9007-56266

S900756267

mainS9007-56267

SZ01045002

mainSZ010-45002

SZ01061013

mainSZ010-61013

34 parts on this diagram · 2 diagrams in section
