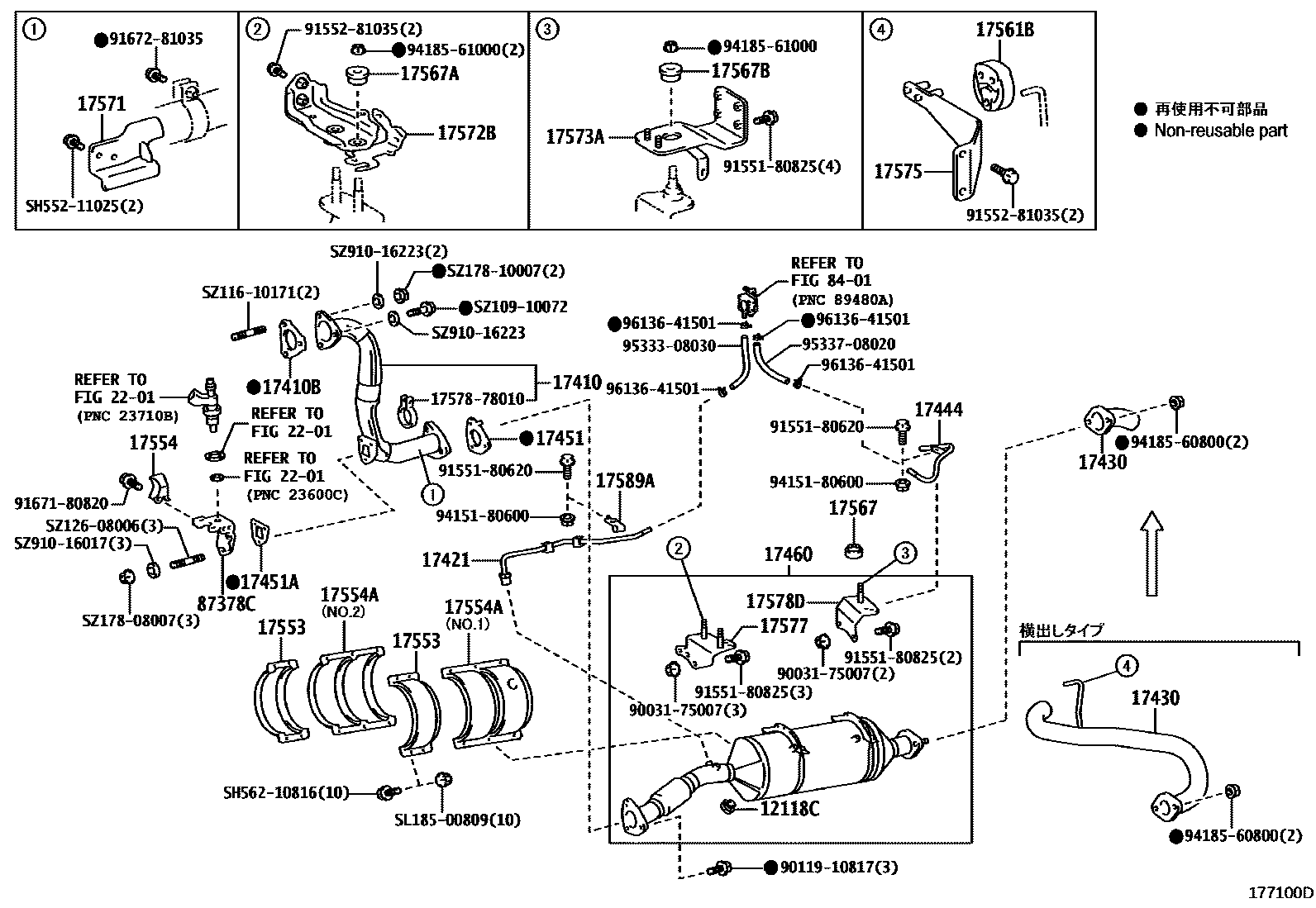

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

12118CPLUG, DRAIN

main12118-78010iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK¥1,000201107-201705

17410PIPE ASSY, EXHAUST, FRONT

main17401-78420iN04C..XKC605,XKU605,645,655¥98,000201905

main17401-E0Q50iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥98,000201107-201705

17410BGASKET, EXHAUST PIPE

main17451-E0110iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥940201107-201705

17421PIPE, EXHAUST, NO.2

main17421-78140iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK¥5,900201107-201705

main17421-78340iN04C..XKC605,XKU605,645,655¥11,000201905

17430PIPE ASSY, EXHAUST, TAIL

main17405-78F10iN04C..XKU600..30T;N04C..XKU600..IV5¥12,000201107-201705

main17405-78G70iN04C..XKU600..20T..(CBU,IV3);N04C..XKC605,645,655,XKU605,64#,65#..DCRTK¥6,100201107-201705

main17405-78K00iN04C..XKC605,XKU605¥17,000201905

main17405-78K10iN04C..XKU645,655¥18,500201905

17444PIPE, EXHAUST, NO.4

main17444-78110iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥2,500201107-201705

main17444-78220iN04C..XKC605,XKU605,645,655¥3,200201905

17451GASKET, EXHAUST PIPE

main17451-78060iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥980201107-201607

sub17451-78061¥980

main17451-78061iN04C..XKC605,645,655,XKU60#,64#,65#¥980201608-201705

17451AGASKET, EXHAUST PIPE, NO.2

main17451-E0121iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥700201107-201705

17460CONVERTER ASSY, CATALYTIC W/PIPE

main17406-78310iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥325,000201107-201710

sub17406-78311¥325,000

main17406-78311iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK¥325,000201711

17553INSULATOR, EXHAUST PIPE HEAT, NO.3

main17553-78020iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥4,100201107-201705

main17553-78170iN04C..XKC605,XKU605,645,655201905

17554INSULATOR, EXHAUST PIPE HEAT, FRONT

main17554-78101iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥330201107-201705

17554AINSULATOR, EXHAUST PIPE HEAT, NO.4

main17553-78180iN04C..XKC605,XKU605,645,655201905

main17554-78080iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥8,400201107-201705

main17554-78090iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK¥8,500201107-201705

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-73020iN04C..XKU600..30T;N04C..XKU600..IV5¥780201107-201705

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-78040iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥340201107-201705

main17567-78060iN04C..XKC605,XKU605,645,655¥750201905

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-78030iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥630201107-201705

17567BCUSHION, EXHAUST PIPE SUPPORT, NO.3

main17567-78030iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥630201107-201705

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-78150iN04C..XKC605,XKU605,645,655¥1,440201905

main17571-E0490iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥3,600201107-201705

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-78330iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥4,150201107-201705

main17572-78500iN04C..XKC605,XKU605,645,655¥9,600201905

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-78360iN04C..XKC605,XKU60#¥4,550201107-201309

sub17573-78361¥4,550

main17573-78361iN04C..XKU60#..T5..20T..CBU¥4,550201310-201705

main17573-78470iN04C..XKC655..T3;N04C..XKU650..T3..CBU¥3,950201107-201705

main17585-78170iN04C..XKC605,XKU605,645,655¥1,830201905

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-78200iN04C..XKU600..30T;N04C..XKU600..IV5¥2,430201107-201705

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

main17577-78200iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥3,400201107-201705

main17586-78190iN04C..XKC605,XKU605,645,655¥1,000201905

17578DBRACKET, EXHAUST PIPE SUPPORT, NO.8

main17577-78400iN04C..XKC605,XKU605,645,655¥4,500201905

main17578-78280iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4¥2,750201107-201705

17589ACLAMP, EXHAUST PIPE

main17589-78021iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU¥440201107-201705

2201

8401

87378CPIPE, EXHAUST

main87378-E0032iXKC605,645,655,XKU60#,64#,65#¥5,800201107-201505

sub87378-E0033¥5,800

main87378-E0033iXKC605,645,655,XKU60#,64#,65#¥5,800201506-201705

1757878010CLAMP, PIPE

main17578-78010¥1,860

9003175007

main90031-75007¥80

9011910817

main90119-10817¥220

9155180620

main91551-80620¥60

9155180825

main91551-80825¥80

9155281035

main91552-81035¥120

9167180820

main91671-80820¥80

9167281035

main91672-81035¥120

9415180600

main94151-80600¥60

9418560800

main94185-60800¥100

9418561000

main94185-61000¥110

9533308030

main95333-08030¥660

9533708020

main95337-08020¥310

9613641501

main96136-41501¥70

SH55211025

mainSH552-11025¥400

SH56210816

mainSH562-10816¥340

SL18500809

mainSL185-00809¥210

SZ10910072

mainSZ109-10072¥420

SZ11610171

mainSZ116-10171¥350

SZ12608006

mainSZ126-08006¥220

SZ17808007

mainSZ178-08007¥320

SZ17810007

mainSZ178-10007¥340

SZ91016017

mainSZ910-16017¥150

SZ91016223

mainSZ910-16223¥420

50 parts on this diagram · 5 diagrams in section
