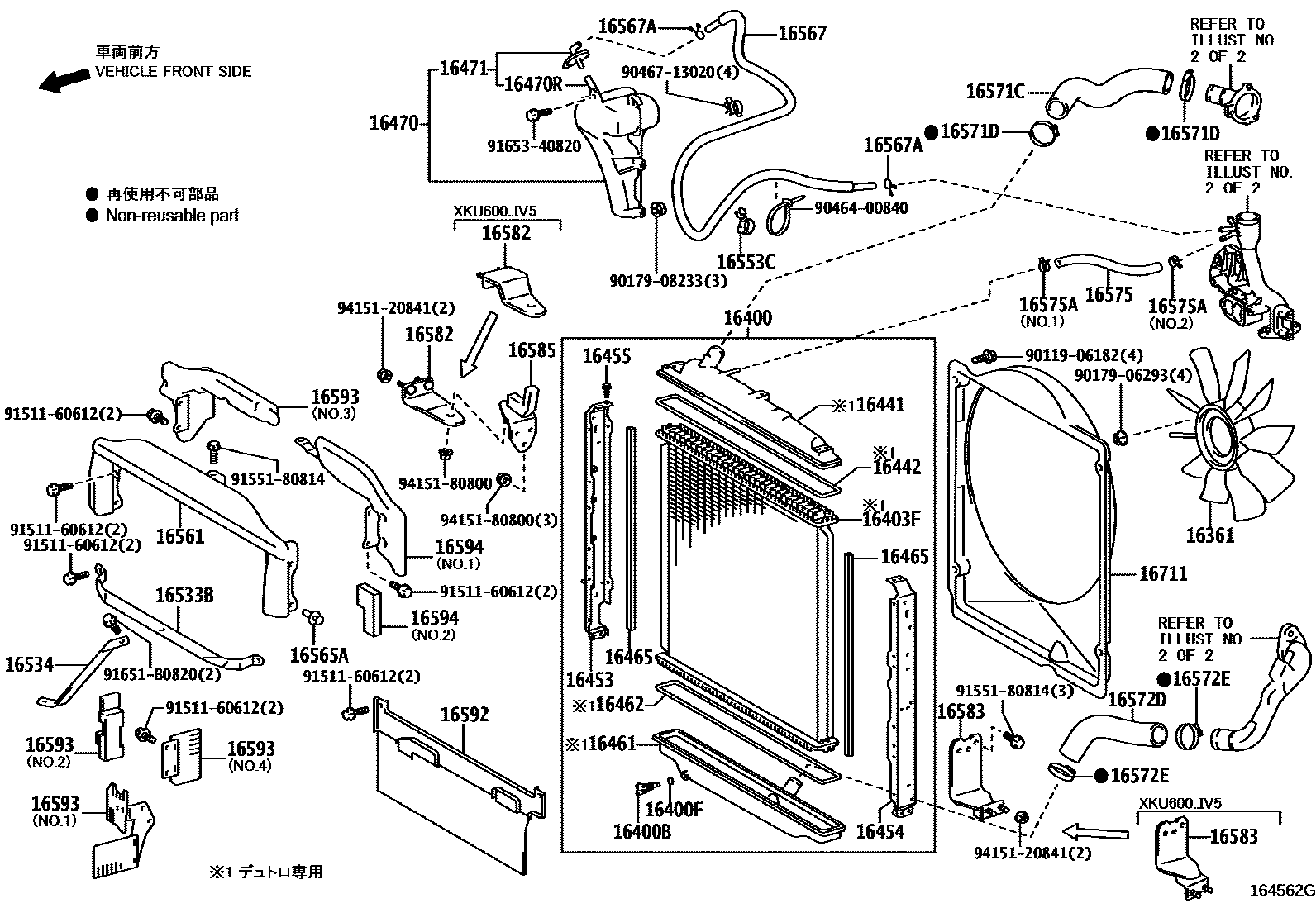

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16361FAN

main16361-78100iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main16361-78220iN04C..XKC605,XKU605,645,655201905

main16361-78120iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK..IV3201705

16400RADIATOR ASSY

main16400-78850iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

sub16400-78851

main16400-78D00iN04C..XKC605,XKU605,645,655201905-202004

main16400-78D01iN04C..XKC605,XKU605,645,655202005

16400BPLUG, RADIATOR DRAIN COCK

main16417-15210iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-15520iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16403FCORE SUB-ASSY, RADIATOR

main16403-78850iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16441TANK, RADIATOR, UPPER

main16441-78281iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main16441-78282iN04C..XKC605,XKU605,645,655202005

16442RING, O(FOR RADIATOR UPPER TANK)

main16442-78080iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

16453PLATE, RADIATOR SIDE

main16453-78830iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main16453-78D00iN04C..XKC605,XKU605,645,655201905-202005

main16453-78D01iN04C..XKC605,XKU605,645,655202005

16454PLATE, RADIATOR SIDE

main16454-78830iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main16454-78C90iN04C..XKC605,XKU605,645,655201905

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16455-61160×8iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16461TANK, RADIATOR, LOWER

main16461-78150iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16462RING, O(FOR RADIATOR LOWER TANK)

main16442-78080iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16465PACKING, RADIATOR

main16465-78080×2iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16470TANK ASSY, RADIATOR RESERVE

main16470-78010iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main16470-78120iN04C..XKC605,XKU605,645,655201905

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16471CAP SUB-ASSY, RESERVE TANK

main16405-78010iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main16475-E0030iN04C..XKC605,XKU605,645,655201905

16533BSUPPORT, RADIATOR, NO.1

main16533-78100iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main16533-78170iN04C..XKC605,XKU605,645,655201905

16534SUPPORT, RADIATOR, NO.2

main16534-78140iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main16534-78170iN04C..XKC605,XKU605,645,655201905

16553CCLAMP, HOSE

main16581-78120iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-78060iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16565ACLIP

main90467-07206×5iN04C..XKC605,645,655,XKU60#,64#,65#201107-201505

main90467-07206-C0×5iN04C..XKC605,645,655,XKU60#,64#,65#201505-201705

BLACK

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-78570iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201506

main16567-78780iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main16567-78830iN04C..XKC605,XKU605,645,655201905-201912

main16567-78831iN04C..XKC605,XKU605,645,655202001

main16567-78A10iN04C..XKC605,XKU605,645,655201905

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-12058×4iN04C..XKC605,XKU605,645,655201905

16571CHOSE, RADIATOR, NO.1

main16571-78350iN04C..XKC605,645,655,XKU60#,64#,65#201107-201208

main16571-78351iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201209-201505

main16571-78370iN04C..XKC605,XKU605,645,655201905

16571DCLIP, RADIATOR HOSE, NO.1

main16581-78150×2iN04C..XKC605,645,655,XKU60#,64#,65#201107-201108

main16581-78151×2iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201404-201505

main16581-78191×2iN04C..XKC605,645,655,XKU60#,64#,65#201109-201403

16572DHOSE, RADIATOR, NO.2

main16572-78160iN04C..XKC605,645,655,XKU60#,64#,65#201107-201208

main16572-78162iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201209-201505

16572ECLIP, RADIATOR HOSE, NO.2

main16581-78150×2iN04C..XKC605,645,655,XKU60#,64#,65#201107-201108

main16581-78151×2iN04C..XKC605,XKU605,645,655201905

main16581-78191×2iN04C..XKC605,645,655,XKU60#,64#,65#201109-201404

16575HOSE, RADIATOR, NO.5

main16575-78041iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

16575ACLIP, RADIATOR HOSE, NO.5

main90467-15022iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main96136-41501iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main96138-41501iN04C..XKC605,XKU605,645,655201905

16582BRACKET, RADIATOR, NO.1

main16582-78060iN04C..XKU600..IV5201107-201705

main16582-78080iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..T4201107-201705

16583BRACKET, RADIATOR, NO.2

main16583-78061iN04C..XKU600..IV5201107-201705

main16583-78080iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16585BRACKET, RADIATOR, NO.3

main16585-78100iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

16592GUIDE, RADIATOR AIR, NO.3

main16592-78010iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main16592-78070iN04C..XKC605,XKU605,645,655201905

16593GUIDE, RADIATOR AIR, NO.1

main16593-78140iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main16593-78150iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main16593-78200iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main16593-78210iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

16594GUIDE, RADIATOR AIR, NO.2

main16594-78120iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

main16594-78130iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

16711SHROUD, FAN

main16711-78280iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201505

9011906182

main90119-06182

9017906293

main90179-06293

9017908233

main90179-08233

9046400840

main90464-00840

9046713020

main90467-13020

9151160612

main91511-60612

9155180814

main91551-80814

91651B0820

main91651-B0820

9165340820

main91653-40820

9415120841

main94151-20841

9415180800

main94151-80800

47 parts on this diagram · 5 diagrams in section
