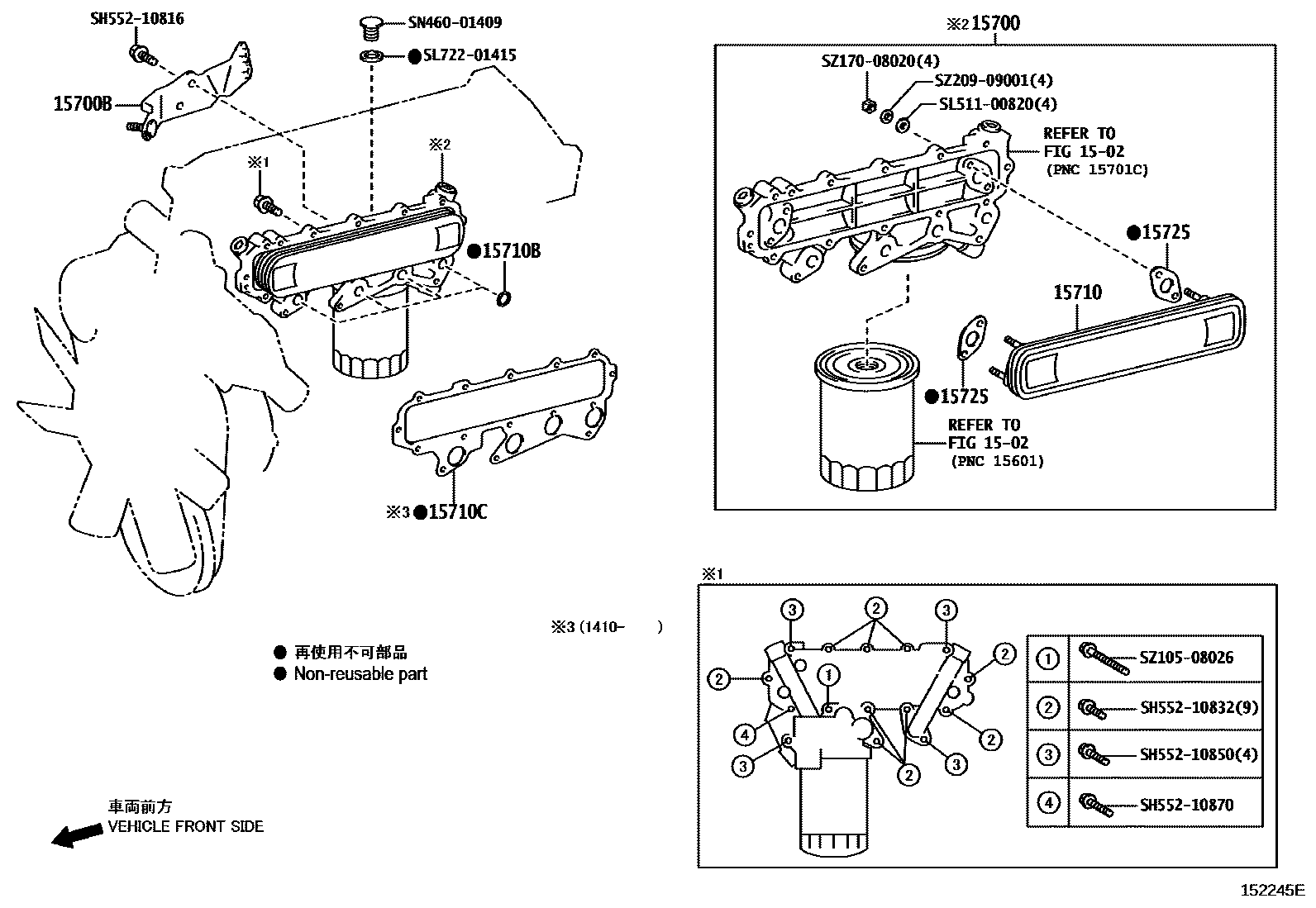

ENGINE OIL COOLER

0001 1 0002 1 0003 1

1502

15700COOLER ASSY, OIL W/BRACKET

main15700-78140iN04C..XKC605,XKU605,645,655201905

sub15700-78141

main15700-E0023iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201810

sub15700-E0024

main15700-E0024iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201811

15700BBRACKET(FOR OIL COOLER)

main16269-78030iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

main16269-78090iN04C..XKC605,XKU605,645,655201905

15710COOLER ASSY, OIL

main16491-78140iN04C..XKC605,XKU605,645,655201905

main16491-EV050iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201811

mainS157122260iN04C..XKC605,645,655,XKU60#,64#,65#201107-201811

sub16491-EV050

15710BRING, O(FOR OIL COOLER)

mainSZ30119015iN04C..XKC605,645,655,XKU60#,64#,65#201107-201410

mainSZ30119018iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201410-201705

mainSZ30119018iN04C..XKC605,XKU605,645,655201905

15710CGASKET(FOR OIL COOLER)

main15725-E0020iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201410-201705

15725GASKET, OIL COOLER COVER

main15785-EV010iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201212-201705

mainS157171270iN04C..XKC605,645,655,XKU60#,64#,65#201107-201212

sub15785-EV010

SH55210816

mainSH552-10816

SH55210832

mainSH552-10832

SH55210850

mainSH552-10850

SH55210870

mainSH552-10870

SL51100820

mainSL511-00820

SL72201415

mainSL722-01415

SN46001409

mainSN460-01409

SZ10508026

mainSZ105-08026

SZ17008020

mainSZ170-08020

SZ20909001

mainSZ209-09001

17 parts on this diagram · 3 diagrams in section
