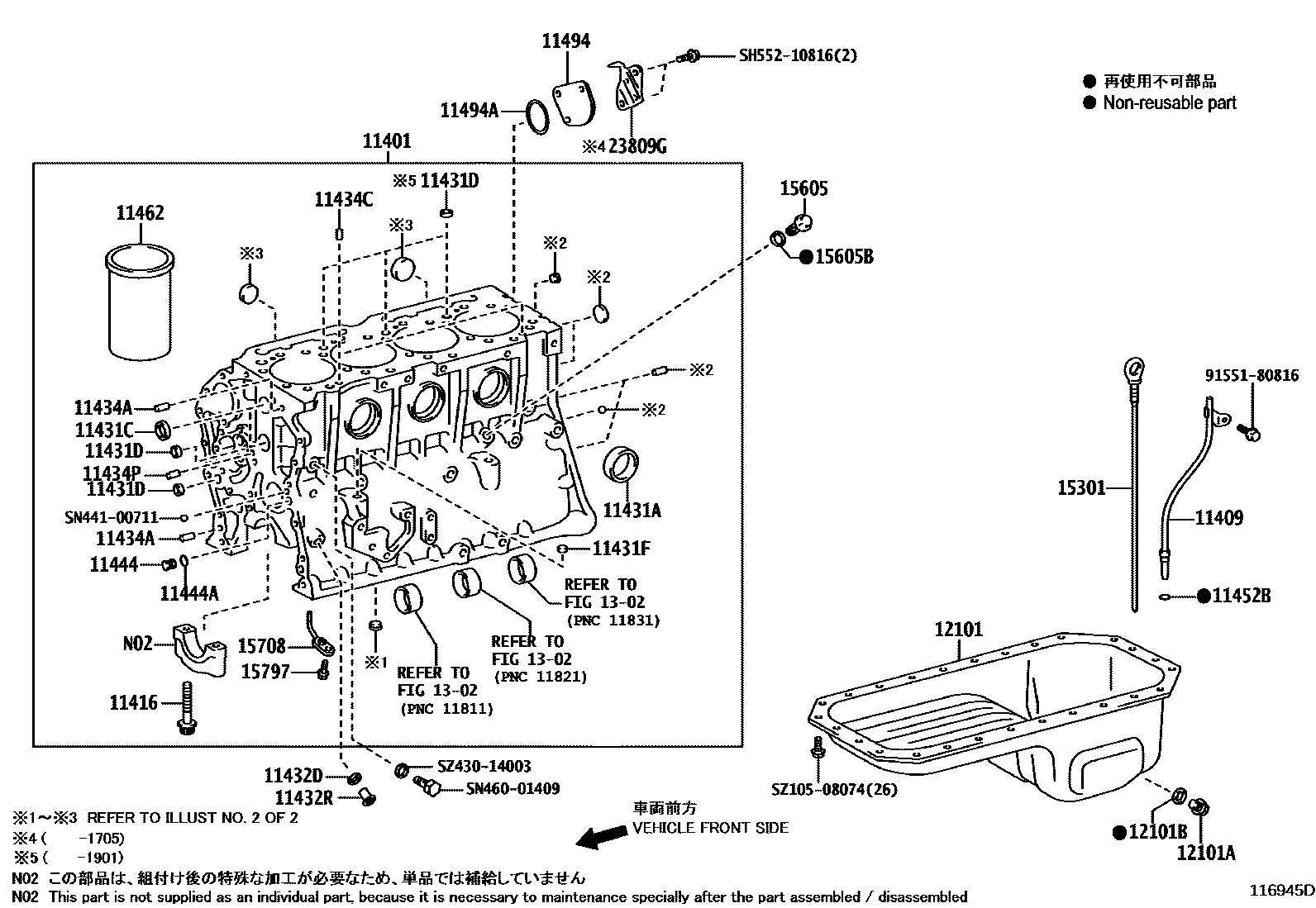

CYLINDER BLOCK

0001 1 0002 1

11401BLOCK SUB-ASSY, CYLINDER

main11410-78423iN04C..XKC605,XKU605,645,655201905

sub11410-78424

main11410-78460iN04C..XKC605,645,655,XKU60#,64#,65#201901-201905

sub11410-78461

sub11701-78170

sub15703-78060

main11410-E0D71iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201811

sub11410-E0D72

main11410-E0D72iN04C..XKC605,645,655,XKU60#,64#,65#201812-201901

sub11410-78460

sub11115-78100

11409GUIDE SUB-ASSY, OIL LEVEL GAGE

main11409-78210iN04C..XKC605,XKU605,645,655201905

main11409-78230iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

mainS115211410iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

mainSN41105016iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

mainSN41103616iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

mainSN41101712iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201901

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

mainSZ33114001iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

11432DGASKET, W/HEAD TAPER SCREW PLUG

mainSZ43010004iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

subSL723-01010

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

mainSN46101011iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

mainSZ25008008iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

mainSZ25008007iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

11434PPIN, STRAIGHT(FOR OIL PUMP SET)

mainSM21200510iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

11444PLUG, HOLE

mainS114531130iN04C..XKC605,XKU605,645,655201107-201705

11444ARING, O

mainSN73200051iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

mainSZ30110025iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

11462LINER, CYLINDER

main11462-78020iN04C..XKC605,XKU605,645,655201905

main11462-78030iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201901

main11462-E0170iN04C..XKC605,645,655,XKU60#,64#,65#201705-201901

main11463-78020iN04C..XKC605,XKU605,645,655201905

main11463-78030iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201901

main11463-E0140iN04C..XKC605,645,655,XKU60#,64#,65#201705-201901

main11464-78020iN04C..XKC605,XKU605,645,655201905

main11464-78030iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201901

main11464-E0140iN04C..XKC605,645,655,XKU60#,64#,65#201705-201901

mainS114671762iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

sub11462-E0170

mainS114671772iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

sub11463-E0140

mainS114671792iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

sub11464-E0140

11494PLATE, OIL HOLE COVER

main11494-78020iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

main16269-78041iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705-201711

sub16269-78042

main16269-78042iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201712

11494ARING, O(FOR OIL HOLE COVER)

mainSN73210693iN04C..XKC605,645,655,XKU60#,64#,65#201107-201201

mainSN74110693iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201201-201705

12101PAN SUB-ASSY, OIL

main12101-E0450iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

12101APLUG(FOR OIL PAN DRAIN)

mainSZ34118014iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

12101BGASKET(FOR OIL PAN DRAIN PLUG)

mainSZ43018009iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201107-201705

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-78320iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201705

main15301-78351iN04C..XKC605,XKU605,645,655201905

main15301-E0A70iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

15605VALVE SUB-ASSY, OIL CHECK

main15602-E0010iN04C..XKC605,645,655,XKU60#,64#,65#..DCRTK201508-201705

main15703-78050iN04C..XKC605,XKU605,645,655201905

mainS156021200iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201507

sub15602-E0010

15605BGASKET(FOR OIL CHECK VALVE)

mainSZ43024001iN04C..XKC605,XKU605,645,655201107-201705

15708NOZZLE SUB-ASSY, OIL, NO.1

mainS110BE0010iN04C..XKU640,655;N04C..XKU605..IV3;N04C..XKU605..T4..CBU;N04C..XKU600..T5..30T..CBU;N04C..XKU600,650..(T3,T5)..IV3;N04C..XKC605,645,655,XKU600,645,650..DM6,T4201107-201705

15797BOLT, OIL NOZZLE UNION

mainSH55210816iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

23809GSUPPORT SUB-ASSY, FUEL PIPE

main23809-78091iN04C..XKC655..T3;N04C..XKU650..T3..CBU;N04C..XKU60#..T5..20T..CBU201107-201705

9155180816

main91551-80816

SH55210816

mainSH552-10816

SN44100711

mainSN441-00711

SN46001409

mainSN460-01409

SZ10508074

mainSZ105-08074

SZ43014003WASHER, SOFT, NO.1

mainSZ430-14003

34 parts on this diagram · 2 diagrams in section
