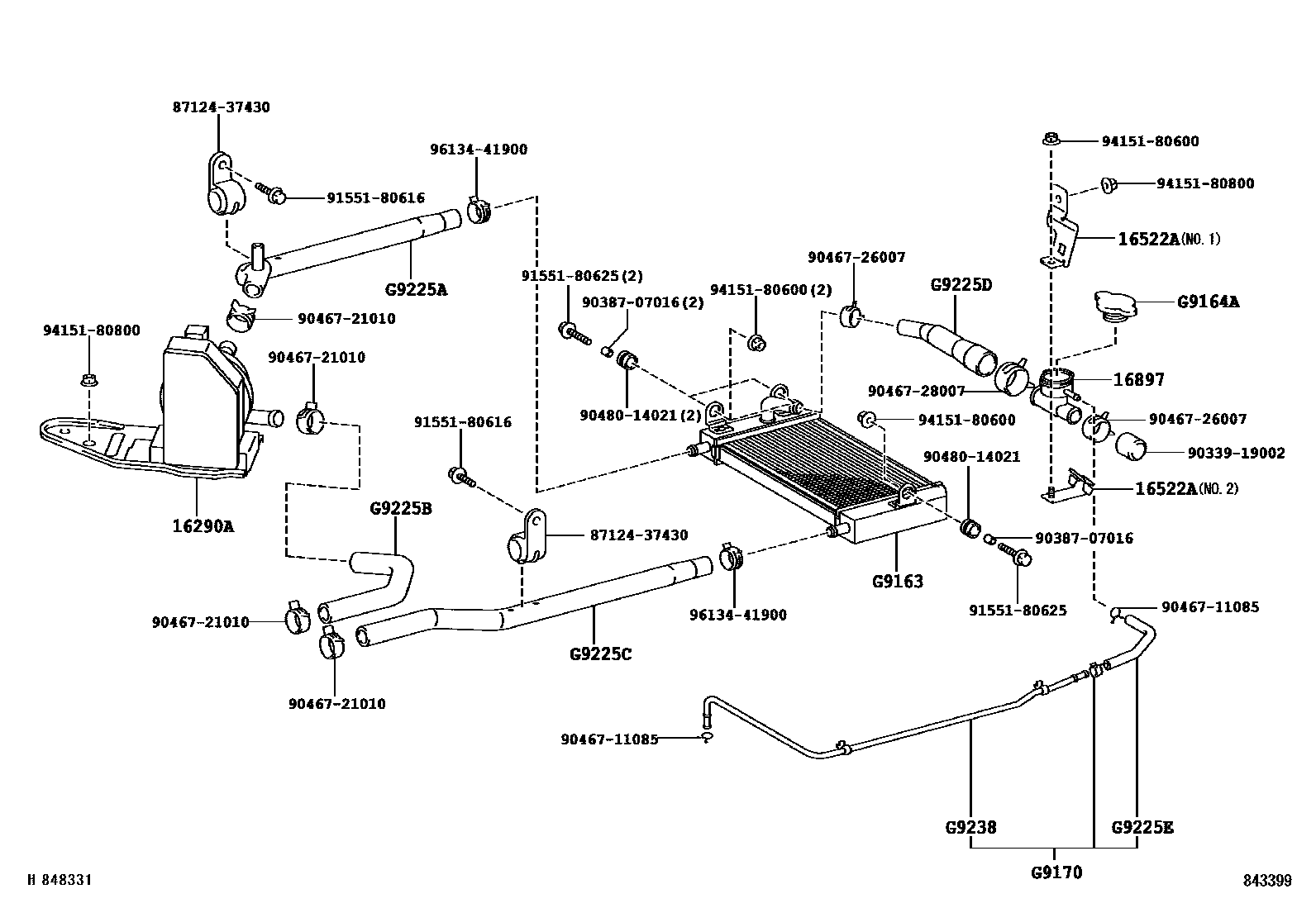

INVERTER COOLING

16290APUMP ASSY, WATER W/MOTOR & BRACKET

mainG902047021iN04C..XKU30#,338,34#,508200610-200707

subG9020-47022

mainG902047022iN04C..XKU30#,338,34#,508200708

16522ABRACKET, WATER FILLER

main16522-89201iN04C..XKU30#,338,34#,508200610

main16522-89202iN04C..XKU30#,338,34#,508200610

16897NECK, FILLER

main16897-89201iN04C..XKU30#,338,34#,508200610

G9163RADIATOR, INVERTER

mainG916389201iXKU30#,338,34#,508200610

G9164ACAP, INVERTER RADIATOR

mainG916489101iXKU30#,338,34#,508200610

G9170PIPE ASSY, INVERTER COOLING NO.1

mainG917089201iXKU30#,338,34#,508200610

G9225AHOSE, INVERTER COOLING, NO.7

mainG922589201iXKU30#,338,34#,508200610

G9225BHOSE, INVERTER COOLING, NO.8

mainG922689201iXKU30#,338,34#,508200610

G9225CHOSE, INVERTER COOLING, NO.9

mainG922789201iXKU30#,338,34#,508200610

G9225DHOSE, INVERTER COOLING, NO.10

mainG922889201iXKU30#,338,34#,508200610

G9225EHOSE, INVERTER COOLING, NO.11

mainG922989201iXKU30#,338,34#,508200610

G9238PIPE, INVERTER COOLING

mainG923889201iXKU30#,338,34#,508200610

8712437430CLAMP, HEATER

main87124-37430

9033919002

main90339-19002

9038707016

main90387-07016

9046711085

main90467-11085

9046721010

main90467-21010

9046726007

main90467-26007

9046728007

main90467-28007

9048014021

main90480-14021

9155180616

main91551-80616

9155180625

main91551-80625

9415180600

main94151-80600

9415180800

main94151-80800

9613441900

main96134-41900

25 parts on this diagram · 1 diagram in section
