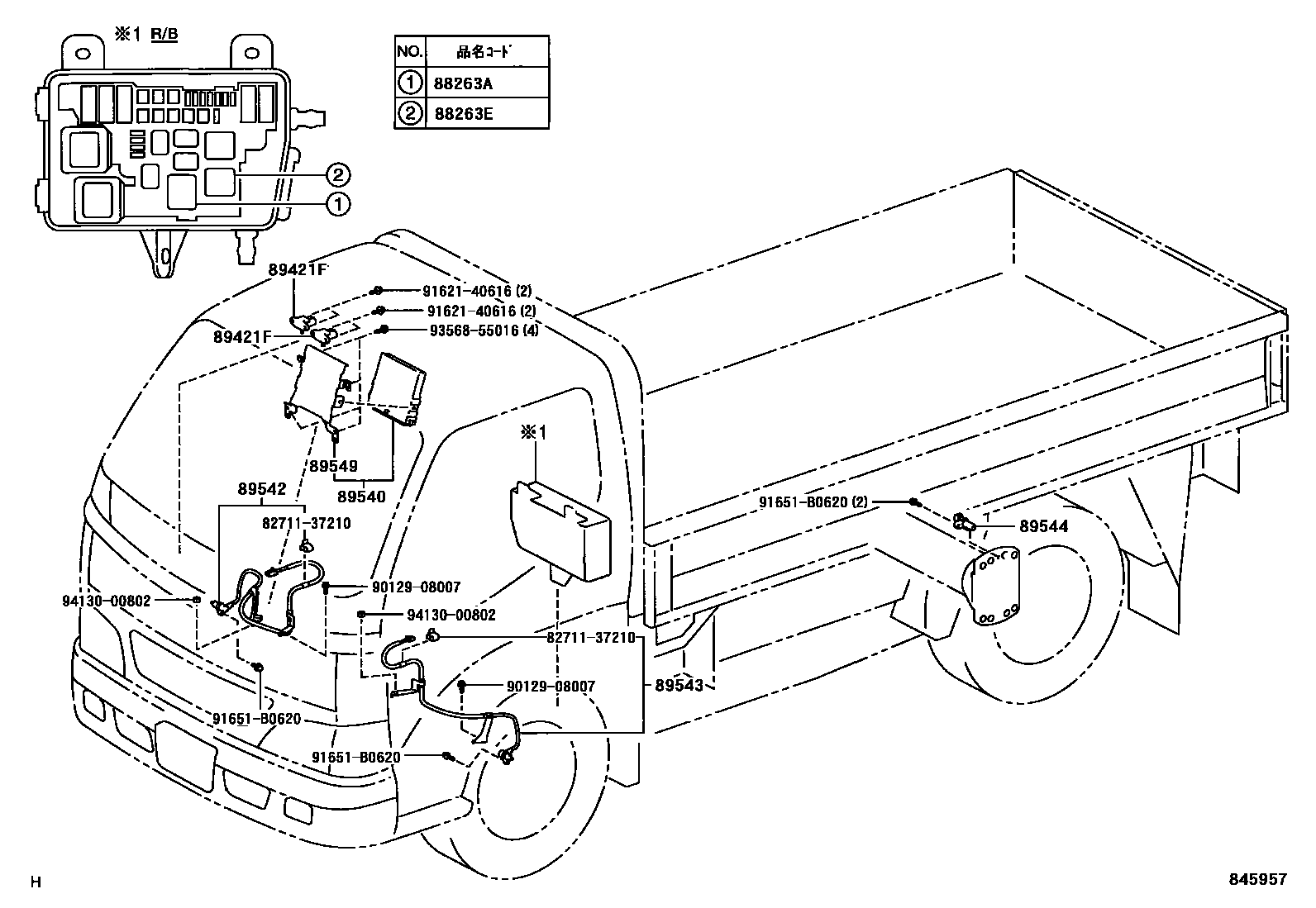

ABS & VSC

0001 1 0002 1��� 0003 1���� ���-����� 0004 1�� ���-�����

88263ARELAY, SKID CONTROL

main88263-36040iXKU304,344200310-200610

88263ERELAY, SKID CONTROL NO.2

main88263-36050iXKU304,344200310-200610

89421FSENSOR, VACUUM (FOR SKID CONTROL)

main89421-37010×2iXKU304,344200310-200610

main89421-37030×2iXKU30#,338,34#,508201009

89540COMPUTER ASSY, SKID CONTROL

main89540-37220iXKU304200310-200610

main89540-37230iXKU344200310-200610

main89540-37280iXKU344..6FC200801

main89540-37290iXKU30#,508..6FC200801

main89540-37300iXKU34#..5F200610

main89540-37310iXKU30#,338,508..5F200610

89542SENSOR, SPEED, FRONT RH

main89542-37070iXKU304,344200310-200610

main89542-37100iXKU308,338,348,508200610-201106

89543SENSOR, SPEED, FRONT LH

main89543-37100iXKU304,344200310-200610

main89543-37230iXKU308,338,348,508200610-201106

89544SENSOR, SKID CONTROL

main89544-36030×2iXKU304,344200310-200610

89549BRACKET, SKID CONTROL COMPUTER

main89549-37040iXKU304,344200310-200610

8271137210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-37210

9012908007

main90129-08007

9162140616

main91621-40616

91651B0620

main91651-B0620

9356855016

main93568-55016

9413000802

main94130-00802

14 parts on this diagram · 4 diagrams in section
