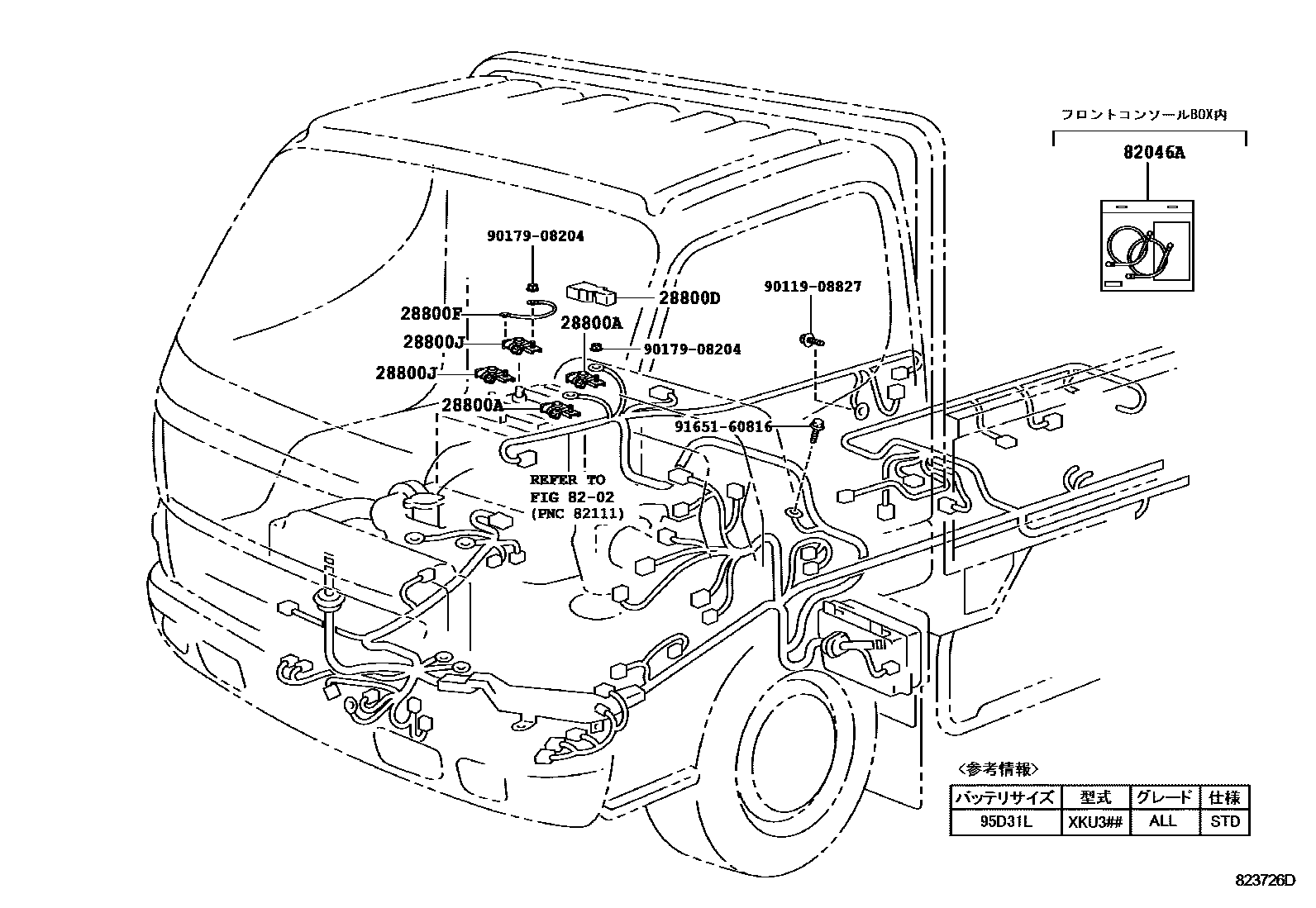

BATTERY & BATTERY CABLE

0001 112V ����� 0002 112V ����� 0003 1HV ����� 0004 1HV ����� 0005 1HV �����

28800ATERMINAL, BATTERY POSITIVE

main90982-05040iN04C..XKU30#,338,34#,508¥950200610

main90982-05042iN04C..XKU304,344¥870200310-200610

main90982-05056iN04C..XKU30#,338,34#,508¥850200610

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-37071iN04C..XKU304,344¥630200310-200610

28800FCABLE, BATTERY TO BATTERY

main82123-37040iN04C..XKU304,344¥4,970200310-200610

main82123-37170iN04C..XKU30#,338,34#,508¥2,730200610

28800JTERMINAL, BATTERY NEGATIVE

main90982-06028iN04C..XKU304,344¥1,390200310-200610

8202

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-37190iXKU304,344¥7,500200409-200610

sub82046-37191¥8,200

9011908827

main90119-08827¥90

9017908204

main90179-08204¥140

9165160816

main91651-60816¥100

9 parts on this diagram · 5 diagrams in section
