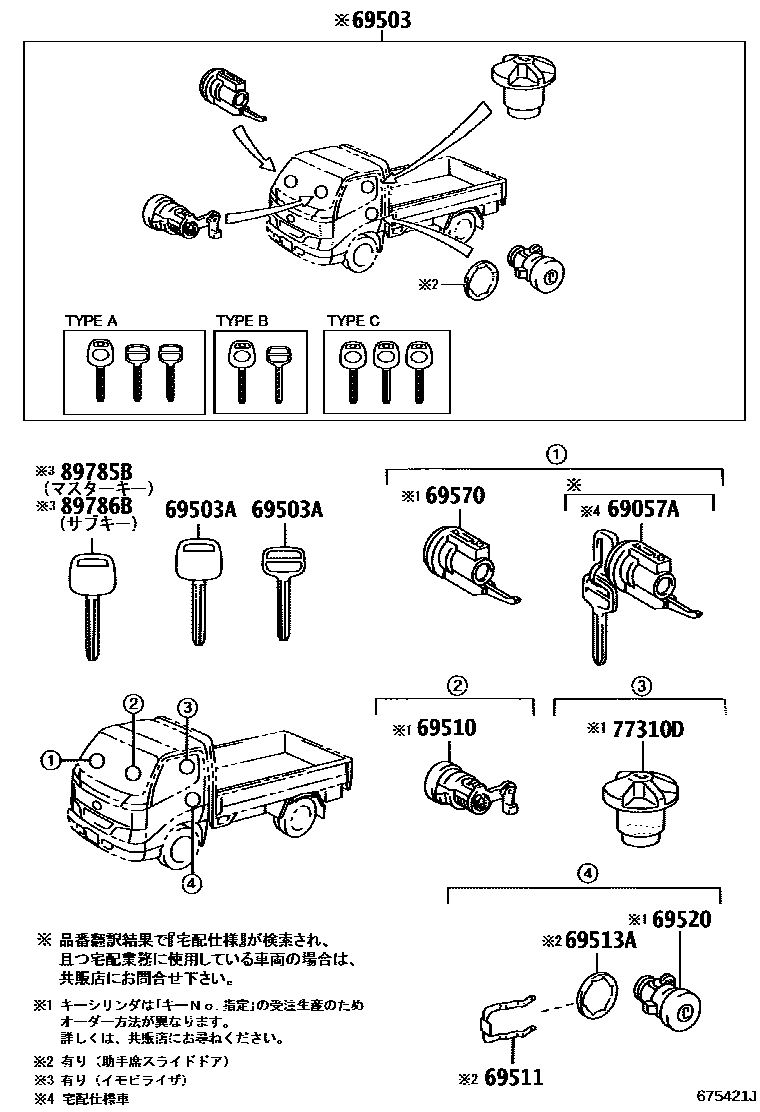

LOCK CYLINDER SET

0001 1DYNA OR TOYOACE 0002 1DUTRO

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37120iXKU308,508..6FC..DCRTJ;XKU308,348,508..T4..DCRUE¥7,100200803

main69057-37120iXKU304,344¥7,100200310-200610

main69057-37120iXKU30#,338,34#,508¥7,100200610-200908

DUTRO

main69057-37140iXKU308,348,508..T4..DCRUE¥7,100200610-200801

main69057-37140iXKU304¥7,100200310-200610

main69057-37210iXKU348..T4;XKU308,344,508..(T3,T4)..5F¥8,000200801-200803

main69057-37220iXKU30#,338,34#,508¥6,000200801

main69057-37230iXKU308,508..6FC¥8,000200801-200803

69503CYLINDER SET, LOCK

main69005-37010iXKU304,344¥17,900200310-200610

sub69005-37011¥17,900

main69005-37010iXKU30#,338,34#,508¥17,900200610-201106

sub69005-37011¥17,900

main69005-37030iXKU304¥17,200200610-200801

main69005-37080iXKU30#,338,34#,508¥18,000200610-201106

main69005-37080iXKU308,348,508..T4..DCRTJ¥18,000200803-201106

main69005-37080iXKU304,344¥18,000200310-200610

main69005-37100iXKU304¥17,200200610-200801

main69005-37800iXKU30#,338,34#,508¥26,900200801-200904

sub69005-37801¥27,000

main69005-37801iXKU30#,338,34#,508¥27,000200905-201106

sub69005-37802¥17,300

main69005-37810iXKU304¥26,900200801-200904

sub69005-37811¥26,900

main69005-37811iXKU304¥26,900200905-201106

sub69005-37812¥17,200

main69005-37820iXKU308,508..6FC¥26,900200801-200904

sub69005-37821¥27,000

main69005-37821iXKU348..T4;XKU308,344,508..(T3,T4)..5F¥27,000200905-201106

sub69005-37822¥20,700

main69005-37840iXKU30#,338,34#,508¥26,900200801-200904

sub69005-37841¥26,900

main69005-37841iXKU30#,338,34#,508¥26,900200905-201106

sub69005-37842¥15,600

main69005-37850iXKU304¥26,900200801-200904

sub69005-37851¥26,900

main69005-37851iXKU304¥26,900200905-201106

sub69005-37852¥15,600

main69005-37860iXKU348..T4;XKU308,344,508..(T3,T4)..5F¥26,900200801-200904

sub69005-37861¥27,000

main69005-37861iXKU348..T4;XKU308,344,508..(T3,T4)..5F¥27,000200905-201106

sub69005-37862¥17,300

69503AKEY, BLANK

main90999-00185iXKU304,344¥1,790200310-200610

main90999-00185iXKU304¥1,790200610-200801

main90999-00185iXKU308,348,508..T4..DCRTJ¥1,790200610-201106

main90999-00186iXKU304¥1,430200610-201106

main90999-00186iXKU304,344¥1,430200310-200610

main90999-00186iXKU30#,338,34#,508¥1,430200610-200801

main90999-00224iXKU304,344¥2,070200310-200610

main90999-00224iXKU308,348,508..T4..DCRTJ¥2,070200610-201106

main90999-00225iXKU304,344¥1,550200310-200610

main90999-00225iXKU308,348,508..T4..DCRUE¥1,550200610-201106

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-37020iXKU304,344¥5,600200310-200610

main69510-37020iXKU30#,338,34#,508¥5,600200610

DYNA OR TOYOACE

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iXKU304¥160200610

69513APAD, DOOR CYLINDER

main69513-32010iXKU304¥120200610

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-37040iXKU304,344¥5,600200310-200610

main69520-37040iXKU30#,338,34#,508¥5,600200610

DYNA OR TOYOACE

main69520-37050iXKU304¥8,800200610

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-37040iXKU304,344¥12,000200310-200610

sub69570-37050¥12,000

main69570-37040iXKU30#,338,34#,508¥12,000200610-200711

sub69570-37050¥12,000

main69570-37050iXKU30#,338,34#,508¥12,000200711-200801

main69570-37060iXKU30#,338,34#,508¥10,000200801-200804

sub69570-37070¥11,900

main69570-37070iXKU30#,338,34#,508¥11,900200804-201106

77310DCAP ASSY, FUEL TANK

main77310-37020iXKU304,344¥7,200200310-200610

main77310-37020iXKU30#,338,34#,508¥7,200200610-201106

DYNA OR TOYOACE

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-37020iXKU30#,338,34#,508¥2,340200801

main89785-60160iXKU30#,338,34#,508¥2,570200801

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-37020iXKU30#,338,34#,508¥3,720200801-200904

sub89786-37021¥2,340

main89786-37021iXKU30#,338,34#,508¥2,340200905

main89786-37040iXKU30#,338,34#,508¥2,570200905

main89786-60170iXKU30#,338,34#,508¥3,090200801-200904

11 parts on this diagram · 2 diagrams in section
