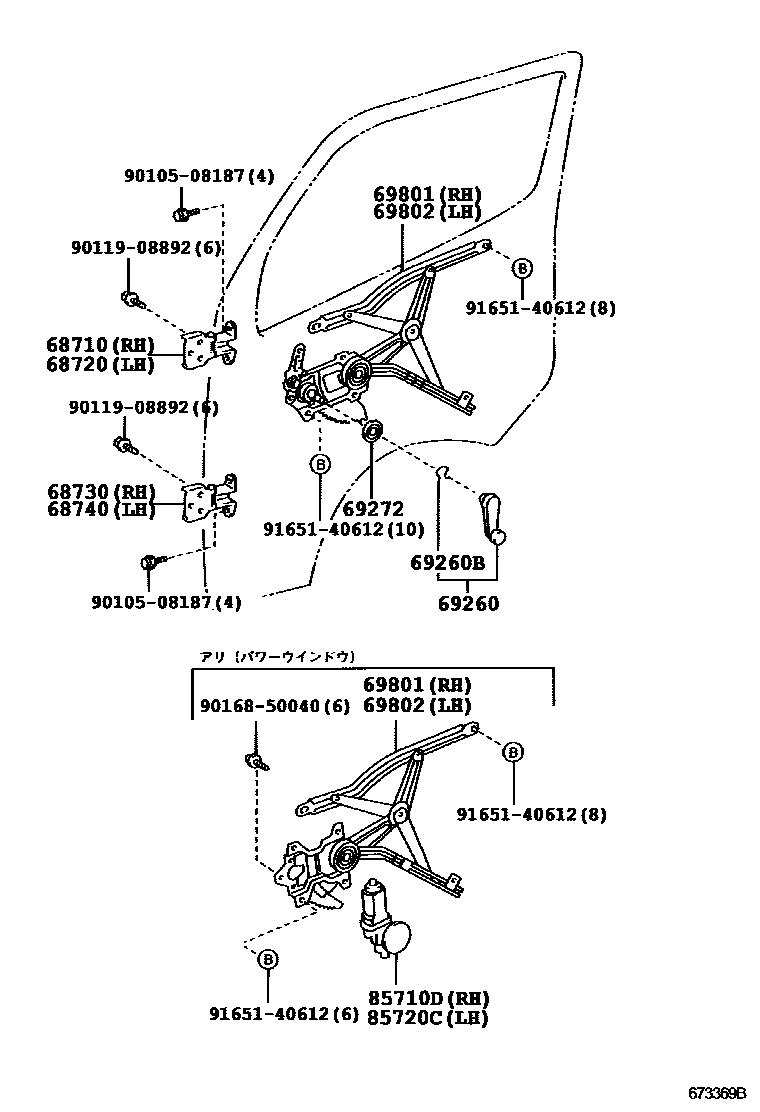

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iXKU304,344200310-200610

main68710-37020iXKU30#,338,34#,508200610-201106

main68710-37031iXKU304200402-200610

main68710-37031iXKU348..T4..DCRTJ200610-201106

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iXKU308,338,34#,508200610-201106

main68730-37010iXKU304,344200310-200610

main68730-37031iXKU344..5F;XKU348..T4..DCRUE;XKU30#,508..DM6,T4200610-201106

main68730-37031iXKU304200402-200610

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iXKU304,344200310-200610

main68730-37010iXKU30#,338,34#,508200610-201106

main68730-37031iXKU304200402-200610

main68730-37031iXKU344..5F;XKU348..T4..DCRUE;XKU30#,508..DM6,T4200610-201106

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iXKU308,338,34#,508200610-201106

main68710-37020iXKU304,344200310-200610

main68710-37031iXKU344..5F;XKU348..T4..DCRUE;XKU30#,508..DM6,T4200610-201106

main68710-37031iXKU304200402-200610

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B3iXKU304,344200310-201106

MD.CHARCOAL,TRIM1#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iXKU304,344200310-200610

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iXKU30#,338,34#,508200310-200610

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37020iXKU304,344200310-200610

sub69801-37050

main69801-37030iXKU304,344200310-200610

sub69801-37060

main69801-37050iXKU30#,338,34#,508200610-200704

sub69801-37051

main69801-37051iXKU30#,338,34#,508200705-200905

sub69801-37052

main69801-37052iXKU30#,338,34#,508200906

main69801-37060iXKU30#,338,34#,508200610-200704

sub69801-37061

main69801-37061iXKU30#,338,34#,508200705-200905

sub69801-37062

main69801-37062iXKU30#,338,34#,508200906

sub69801-37063

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37020iXKU304,344200310-200610

sub69802-37050

main69802-37030iXKU304,344200310-200610

sub69802-37060

main69802-37050iXKU30#,338,34#,508200610-200704

sub69802-37051

main69802-37051iXKU30#,338,34#,508200705-200905

sub69802-37052

main69802-37052iXKU30#,338,34#,508200906

main69802-37060iXKU30#,338,34#,508200610-200704

sub69802-37061

main69802-37061iXKU30#,338,34#,508200705-200905

sub69802-37062

main69802-37062iXKU30#,338,34#,508200906

sub69802-37063

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37040iXKU304,344200310-200610

main85710-37080iXKU30#,338,34#,508200610

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37050iXKU304,344200310-200610

main85720-37070iXKU304200610

main85720-37110iXKU30#,338,34#,508200610

9010508187

main90105-08187

9011908892

main90119-08892

9016850040

main90168-50040

9165140612

main91651-40612

15 parts on this diagram · 2 diagrams in section
