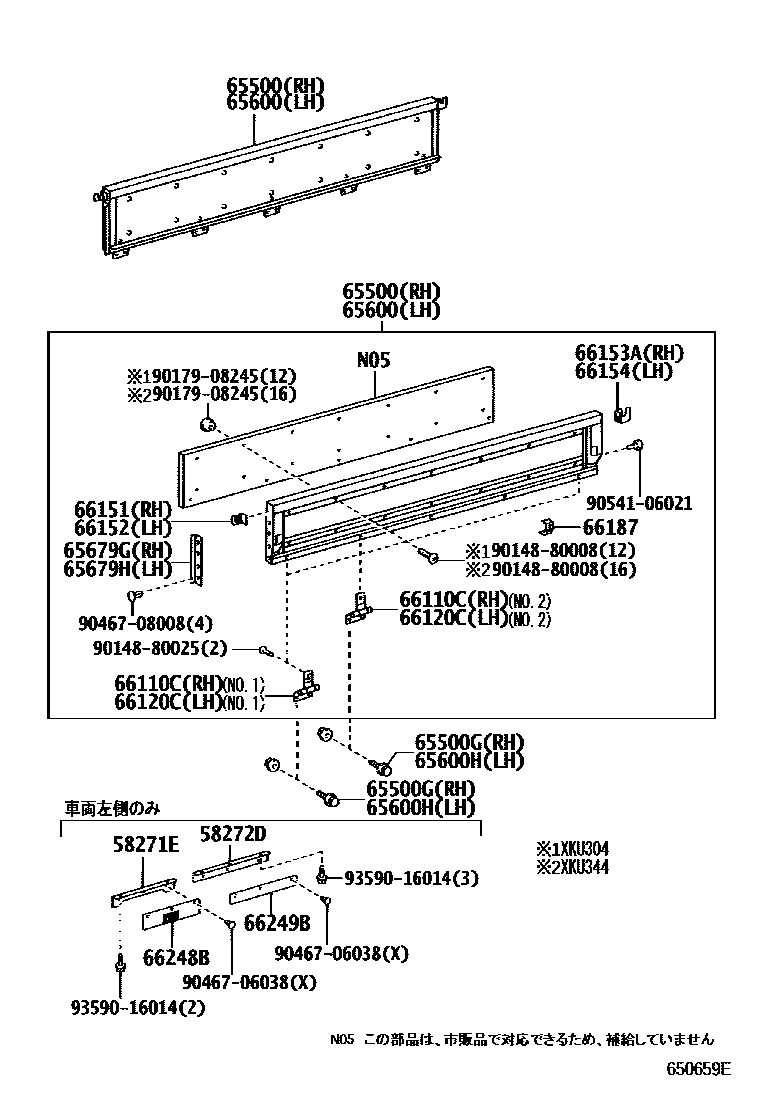

REAR BODY SIDE PANEL

0001 1 0002 1�������� ���� 0003 1 0004 1�������� ����

58271EPLATE, FLOOR SIDE, NO.1

main58271-37100iXKU304¥1,820200406-200610

main58271-37110iXKU344¥1,600200406-200610

58272DPLATE, FLOOR SIDE, NO.2

main58272-37130iXKU304¥2,380200406-200610

main58272-37140iXKU344¥2,230200406-200610

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37A40iXKU338¥116,000200908-201106

main65500-37A60iXKU304¥95,000200406-201106

main65500-37A80iXKU508..T4..5F¥90,800200908-201106

main65500-3V670iXKU34#..T3..5F¥137,000200406-201106

65500GBOLT, W/WASHER(FOR SIDE GATE, RH)

main90119-08464iXKU304¥120200406-200610

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-37A40iXKU338¥116,000200908-201106

main65600-37A60iXKU304¥95,000200406-201106

main65600-3V600iXKU508..T4..5F¥90,800200908-201106

main65600-3V670iXKU34#..T3..5F¥137,000200406-201106

65600HBOLT, W/WASHER(FOR SIDE GATE, LH)

main90119-08464iXKU304¥120200406-200610

65679GSEAL, SIDE GATE

main65679-37010iXKU304,344¥820200406-201103

sub65679-37011¥510

main65679-37011iXKU338,508..5F;XKU308,34#..(T3,T5)..5F¥510201104-201106

65679HSEAL, SIDE GATE

main65679-37010iXKU304,344¥820200406-201103

sub65679-37011¥510

main65679-37011iXKU338,508..5F;XKU308,34#..(T3,T5)..5F¥510201104-201106

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37040iXKU344¥2,690200406-200807

main65010-37040iXKU308,508..T5;XKU338,508..T4..5F..DCRUE¥2,690200807-201012

main65010-37041iXKU34#..T3..5F¥2,690201101-201106

sub65010-37042¥1,860

main65050-37080iXKU308,34#,508..(T3,T5)..5F¥2,690200406-200807

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37040iXKU304¥2,690200406-200807

main65010-37040iXKU308,508..T5;XKU338,508..T4..5F..DCRUE¥2,690200807-201012

main65010-37041iXKU34#..T3..5F¥2,690201101-201106

sub65010-37042¥1,860

main65050-37080iXKU304,344¥2,690200406-200807

66151LATCH, SIDE GATE FEMALE, RH

main66151-92703iXKU304,344¥1,130200406-200610

66152LATCH, SIDE GATE FEMALE, LH

main66152-92703iXKU338,508..T4..5F..DCRUE;XKU308,34#,508..(T3,T5)..5F¥1,130200406-200610

66153ALATCH, TAIL GATE FEMALE, RH

main66153-37010iXKU304,344¥620200406-200610

66154LATCH, TAIL GATE FEMALE, LH

main66154-37010iXKU344¥620200406-200610

66187HANDLE, SIDE GATE LATCH, CENTER NO.2

main66187-37010iXKU304,344¥480200406-200610

sub66187-37011¥330

66248BPROTECTOR, REAR BODY SIDE PANEL, RH

main66248-37010iXKU304¥1,080200406-200610

main66248-37020iXKU344¥1,080200406-200610

66249BPROTECTOR, REAR BODY SIDE PANEL, LH

main66249-37010iXKU344¥610200406-200610

main66249-37020iXKU304¥1,080200406-200610

9014880008

main90148-80008¥110

9014880025

main90148-80025¥440

9017908245

main90179-08245¥120

9046706038

main90467-06038¥160

9046708008

main90467-08008¥170

9054106021

main90541-06021¥210

9359016014

main93590-16014¥280

24 parts on this diagram · 4 diagrams in section
