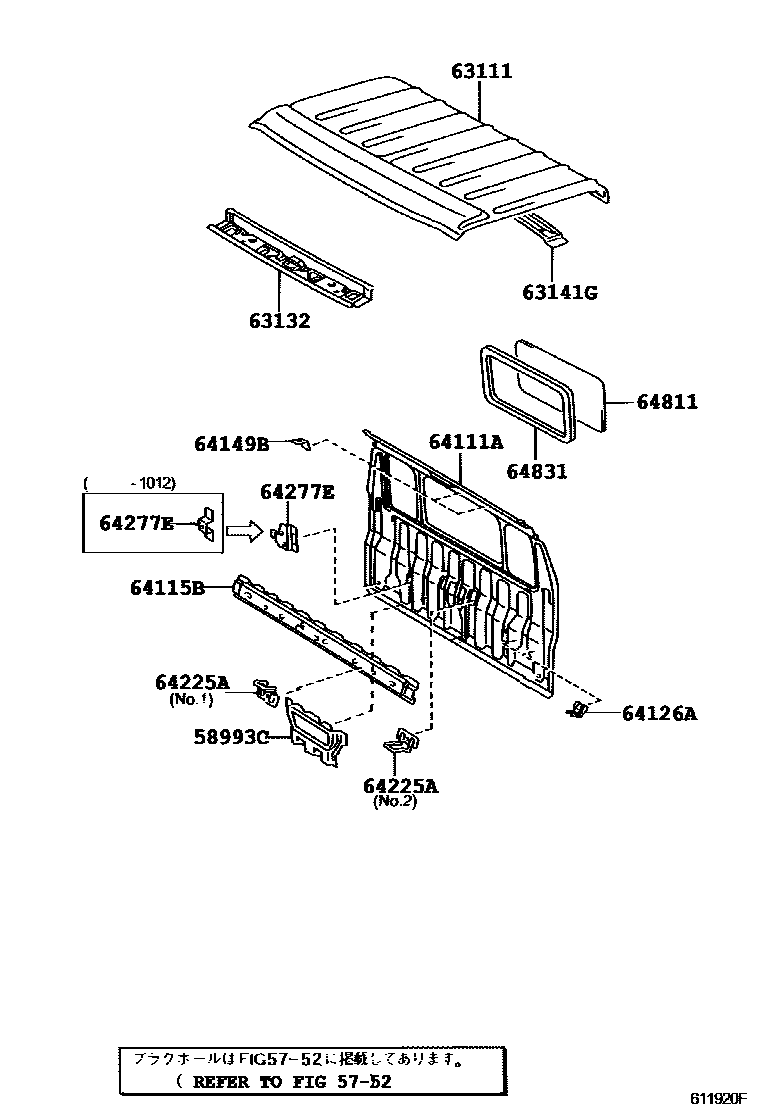

ROOF PANEL & BACK PANEL

0001 1 0002 1��(�-� ������ ������) 0003 1��(�-� ���)

5752

58993CBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-37050iXKU304,344200310-200603

63111PANEL, ROOF

main63111-37120iXKU30#,338,34#,508200610

main63111-37130iXKU30#,338,34#,508200610

sub63111-37131

63132PANEL, WINDSHIELD HEADER, INNER

main63132-37070iXKU304,344200310-200603

main63132-37071iXKU304,344200604-200610

main63132-37081iXKU304,344200310-200603

main63132-37082iXKU304,344200604-200610

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37060iXKU30#,338,34#,508200610-201106

main63141-37070iXKU304;XKU344..30T200310-200610

64111APANEL, BACK

main64111-37372iXKU304,344200310-200603

main64111-37373iXKU304,344200604-200610

main64111-37374iXKU30#,338,34#,508201012

64115BREINFORCEMENT, BACK PANEL

main64115-37121iXKU304,344200310-200603

main64115-37122iXKU304,344200604-200610

main64115-37123iXKU30#,338,34#,508201008-201012

main64115-37124iXKU30#,338,34#,508201012

sub64115-25040

64126ABRACKET, UPPER BACK PANEL, LH

main64125-37030×2iXKU30#,338,34#,508200610

64149BRETAINER, BACK PANEL HEADREST

main64149-37010×2iXKU30#,338,34#,508200610

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64209-37010iXKU30#,338,34#,508200610

main64209-37030iXKU30#,338,34#,508200610

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010×2iXKU304,344200310-200603

main64277-37020×2iXKU30#,338,34#,508201012

64811GLASS, BACK WINDOW

main64811-37120iXKU304,344200310-200610

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37040iXKU304,344200310-200312

main64831-37041iXKU304,344200312-200610

13 parts on this diagram · 3 diagrams in section
