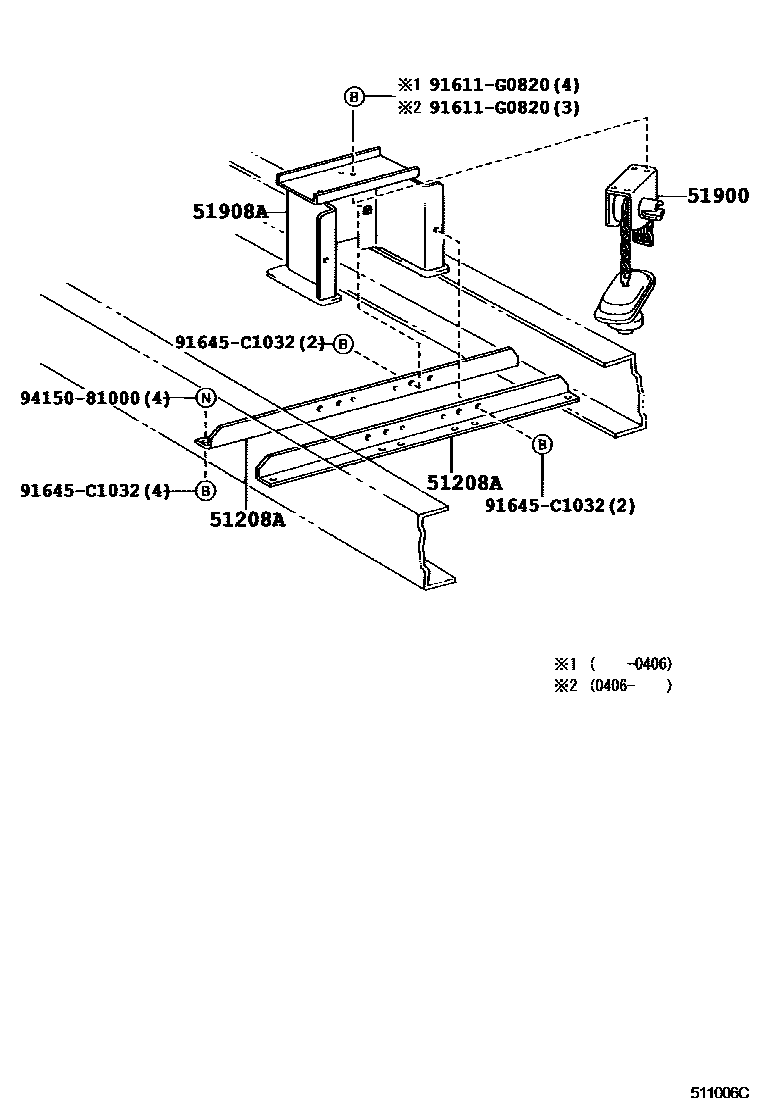

SPARE WHEEL CARRIER

0001 1�� 0002 1�� 0003 1����� 0004 1

51208AMEMBER SUB-ASSY, SPARE WHEEL SET

main51261-37020iXKU304,344200310-200610

51900CARRIER ASSY, SPARE WHEEL

main51900-37030iXKU304200310-200406

main51900-37060iXKU344200310-200405

main51900-37100iXKU304200406-200610

main51900-37120iXKU344200406-200610

main51900-37160iXKU308,338,34#,508200610-201106

51908ABRACKET SUB-ASSY, SPARE WHEEL MOUNTING

main51908-37090iXKU304200310-200406

main51908-37260iXKU304200406-200610

main51908-37400iXKU308,508200610

sub51908-37580

main51908-37460iXKU338,34#200610

sub51908-37590

91611G0820

main91611-G0820

91645C1032

main91645-C1032

9415081000

main94150-81000

6 parts on this diagram · 4 diagrams in section
