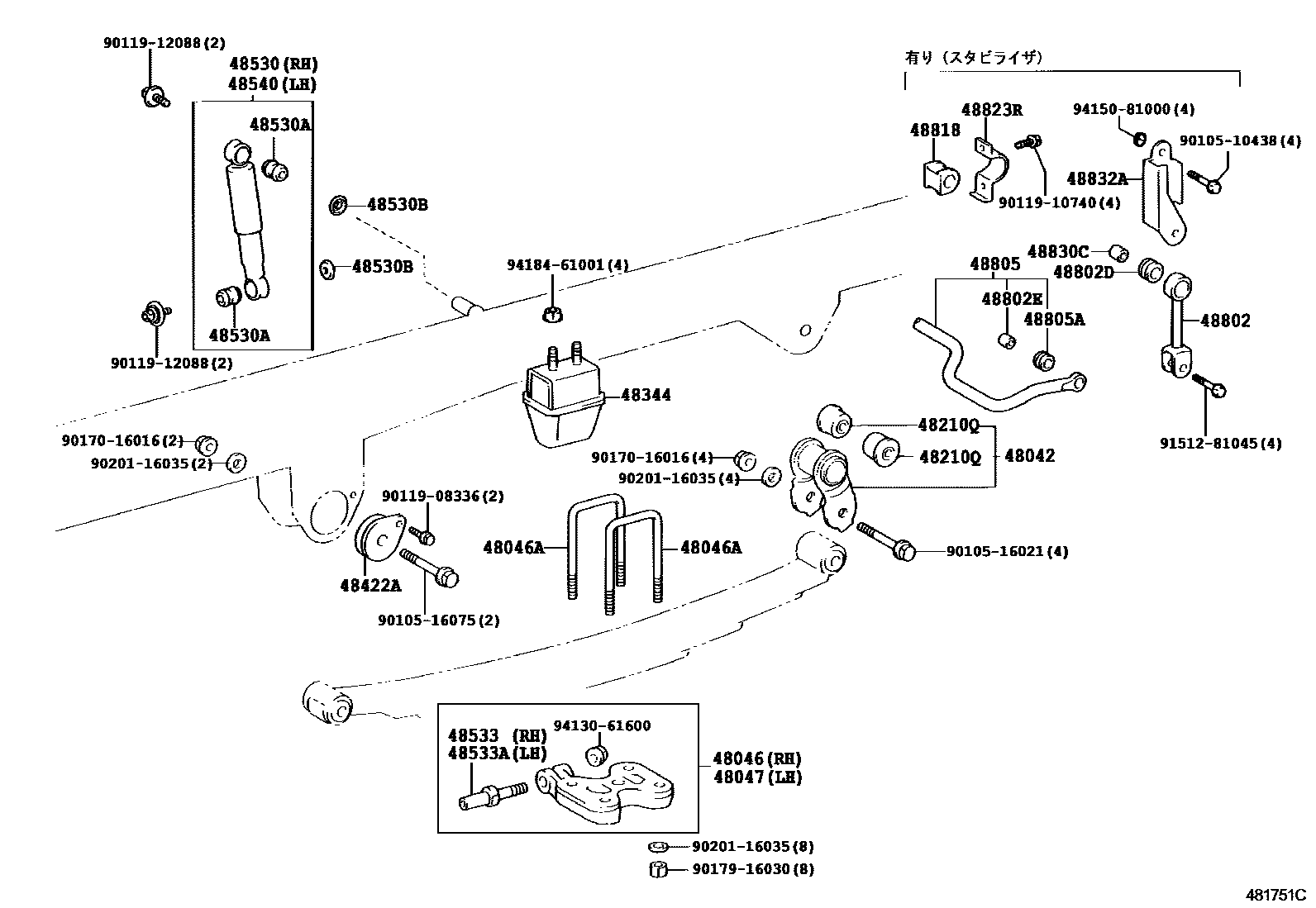

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 16-LEAF 0006 1MAIN 3+HELPER 2-LEAF 0007 1MAIN 2+HELPER 2-LEAF 0009 13-LEAF 0010 13-LEAF 0011 1MAIN 3+HELPER 2-LEAF 0012 1

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020iXKU30#,338,34#,508200310-200610

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-37080iXKU338;XKU30#..DM6,T5200310-200610

main48046-37120iXKU508;XKU308..T4200610

main48473-37180iXKU34#200310-200610

48046ABOLT, U(FOR REAR SPRING)

main90117-16014iXKU508;XKU308..T4200610

main90117-16022iXKU348200505-200610

main90117-16024iXKU344200310-200610

main90117-16067iXKU304200906

main90117-16068iXKU304200310-200905

main90117-16077iXKU338;XKU308..T5200610

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-37080iXKU304200310-200610

main48047-37120iXKU508;XKU308..T4200610

main48473-37180iXKU34#200610

48210SPRING ASSY, REAR RH

main48210-37570iXKU344..30T200310-200610

main48210-37570iXKU344200610

main48210-37640iXKU304200310-200610

sub48210-37641

main48210-37830iXKU344..30T200310-200610

main48210-37830iXKU344200610

main48210-37B30iXKU348200505-201106

sub48210-37B31

main48210-37C20iXKU308,338,508200610-201106

sub48210-37C21

main48210-3V600iXKU304200610-201106

sub48210-3V601

48210QBUSH(FOR REAR SPRING SHACKLE)

main90389-16026iXKU304,344200310-200610

48344STOPPER, BUMPER, REAR

main48344-37050iXKU508;XKU30#..DM6,T4200610

main48344-37090iXKU344..20T200505-200610

main48344-37100iXKU304200310-200610

main48344-37170iXKU338;XKU308..T5200610

main48344-37200iXKU344..30T200310-200610

48422ASUPPORT, REAR SPRING PIN

main48422-36090iXKU304200310-200610

main48422-37010iXKU344200310-200610

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80672iXKU304200310-200610

sub48531-80802

main48531-80673iXKU344200310-200610

sub48531-80796

main48531-80744iXKU308,338,508200610

sub48531-80800

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19011iXKU304,344200310-200610

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iXKU304,344200310-200610

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-37030iXKU304200310-200610

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48522-37030iXKU304200310-200610

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80672iXKU304200310-200610

sub48531-80802

main48531-80673iXKU34#200310-200610

sub48531-80796

main48531-80744iXKU308,338,508200610

sub48531-80800

48802LINK SUB-ASSY, STABILIZER

main48802-37010iXKU304200310-200610

48802DBUSH, STABILIZER LINK

main90385-13009iXKU304200310-200610

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10044iXKU304200310-200610

48805BAR SUB-ASSY, REAR STABILIZER

main48805-37030iXKU304200310-200610

main48805-37040iXKU348200610

48805ABUSH(FOR REAR STABILIZER BAR)

main90385-13009iXKU304200310-200610

48818BUSH, STABILIZER, REAR

main48815-37060iXKU304200310-200610

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-37011iXKU304200310-200610

48830CSPACER(FOR REAR STABILIZER LINK)

main90560-10044iXKU304200310-200610

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-37010iXKU348200610

main48832-37020iXKU304200310-200610

9010510438

main90105-10438

9010516021

main90105-16021

9010516075

main90105-16075

9011908336

main90119-08336

9011910740

main90119-10740

9011912088

main90119-12088

9017016016

main90170-16016

9017916030

main90179-16030

9020116035

main90201-16035

9151281045

main91512-81045

9413061600

main94130-61600

9415081000

main94150-81000

9418461001

main94184-61001

36 parts on this diagram · 11 diagrams in section
