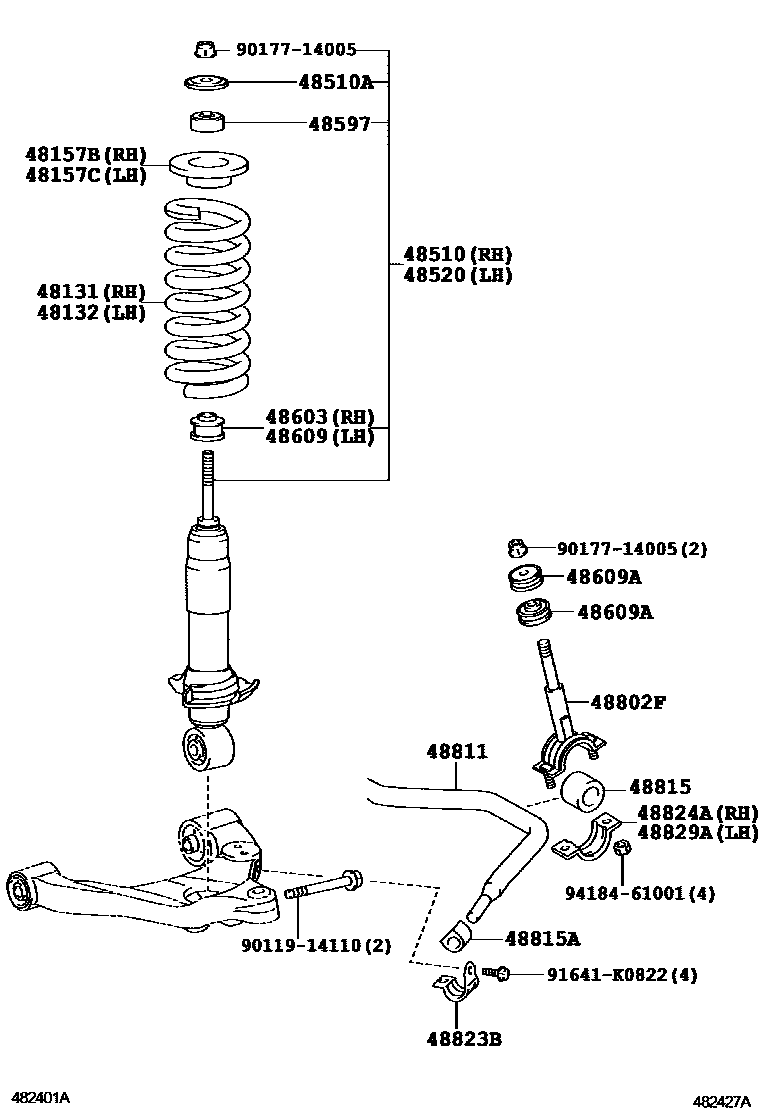

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48510ACUSHION, FRONT SHOCK ABSORBER
48597RETAINER, SHOCK ABSORBER CUSHION
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48811BAR, STABILIZER, FRONT
48815ABUSH, FRONT STABILIZER BAR, NO.2
48823BCOVER, FRONT STABILIZER BRACKET
48824BRACKET, STABILIZER, FRONT
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011914110
main90119-14110
9017714005
main90177-14005
91641K0822
main91641-K0822
9418461001
main94184-61001
23 parts on this diagram · 5 diagrams in section
