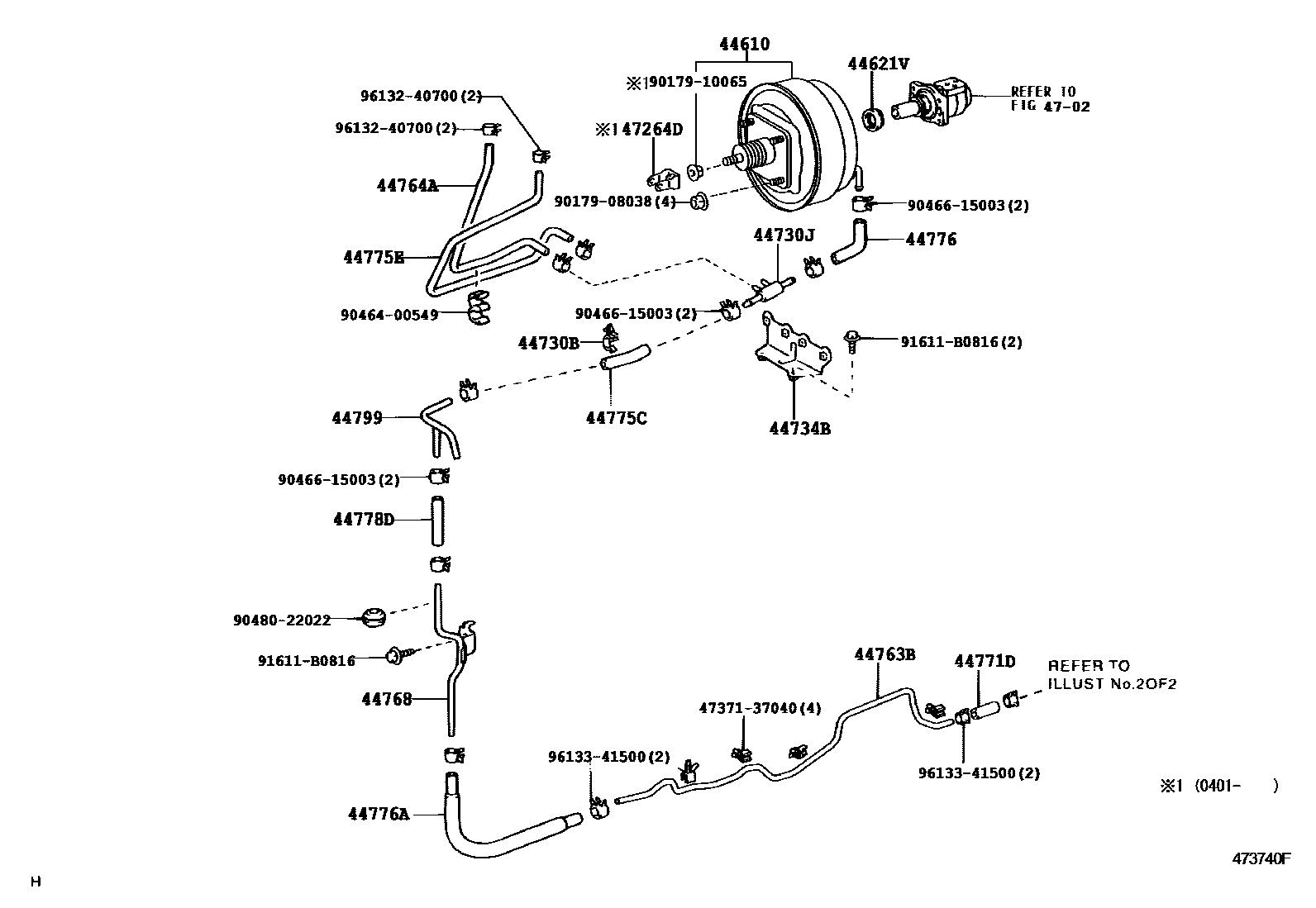

BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
44621VSEAL, BOOSTER BODY
44730BCLAMP, VACUUM HOSE
44730JWAY(FOR BOOSTER VACUUM)
44734BBRACKET, BOOSTER SUPPORT
44763BTUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764AHOSE, BOOSTER VACUUM
44768TUBE, BOOSTER VACUUM
44771HOSE, VACUUM TUBE CONNECTOR
44771DHOSE, VACUUM TUBE CONNECTOR
44775CHOSE, CONNECTOR TO WAY
44775EHOSE, WAY TO CONNECTOR
44776HOSE, BRAKE BOOSTER
44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44778HOSE, CONNECTOR TO CHECK VALVE
44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE
44799WAY, BRAKE VACUUM HOSE
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
4737137040BRACKET, CONNECTOR
main47371-37040
9017908038
main90179-08038
9017910065
main90179-10065
9046400549
main90464-00549
9046615003
main90466-15003
9048022022
main90480-22022
91611B0816
main91611-B0816
9613240700
main96132-40700
9613341500
main96133-41500
28 parts on this diagram · 5 diagrams in section
