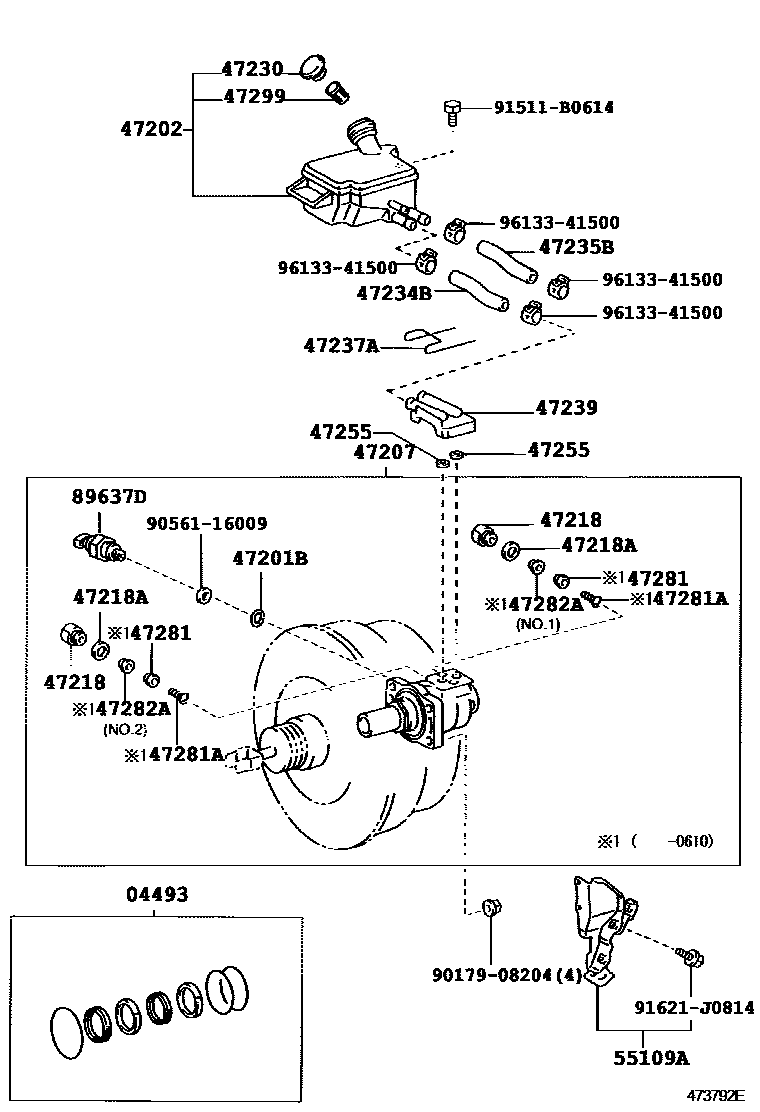

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-36230iXKU304,344200310-200610

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iXKU508201011

main90029-20059iXKU508200610-201011

main90301-15014iXKU30#,338,34#200310-200610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37051iXKU304,344200310-200610

main47220-37110iXKU508..5F;XKU30#,338,34#..5F..DCRTJ200610-200910

sub47220-37111

main47220-37111iXKU30#,338,34#..5F200909

main47220-37130iXKU304..6FC200801-200911

sub47220-37131

main47220-37131iXKU30#,344..6FC;XKU508..6FC..DCRUE200909

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-36021iXKU304,344200310-200401

sub47207-37060

main47207-37060iXKU304,344200401-200610

main47207-37091iXKU30#,338,34#200610

main47207-37110iXKU508200610-201010

main47207-37180iXKU508201011

sub47207-37181

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091iXKU30#,338,34#200310-200610

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16013iXKU304,344200310-200610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iXKU304,344200310-200610

47234BTUBE, RESERVOIR, NO.1

main47234-37080iXKU304,344200310-200610

main47234-37130iXKU508200610-201011

main47234-37140iXKU30#,338,34#200610-201106

main47234-37220iXKU508201011-201106

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37070iXKU304,344200310-200610

main47235-37120iXKU508200610-201011

main47235-37130iXKU30#,338,34#200610-201106

main47235-37210iXKU508201011-201106

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-36020iXKU304,344200310-200610

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-37010iXKU304,344200310-200610

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iXKU304,344200310-200610

main90029-48001iXKU508200610

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-36010iXKU304,344200310-200610

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90905-01054iXKU304,344200310-200610

47282ASEAT, OUTLET CHECK VALVE, NO.1

main47282-36010iXKU304,344200310-200610

main47282-36020iXKU304,344200310-200610

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iXKU304,344200310-200610

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-37010iXKU30#,338,34#200310-200712

sub55109-37011

main55109-37011iXKU30#,338,34#200801-201106

main55109-37030iXKU508200610-200712

main55109-37031iXKU508200801-201011

main55109-37060iXKU508201011-201106

89637DSENSOR, OIL PRESSURE

main89637-51010iXKU304,344200310-201106

9017908204

main90179-08204

9056116009

main90561-16009

91511B0614

main91511-B0614

91621J0814

main91621-J0814

9613341500

main96133-41500

23 parts on this diagram · 2 diagrams in section
