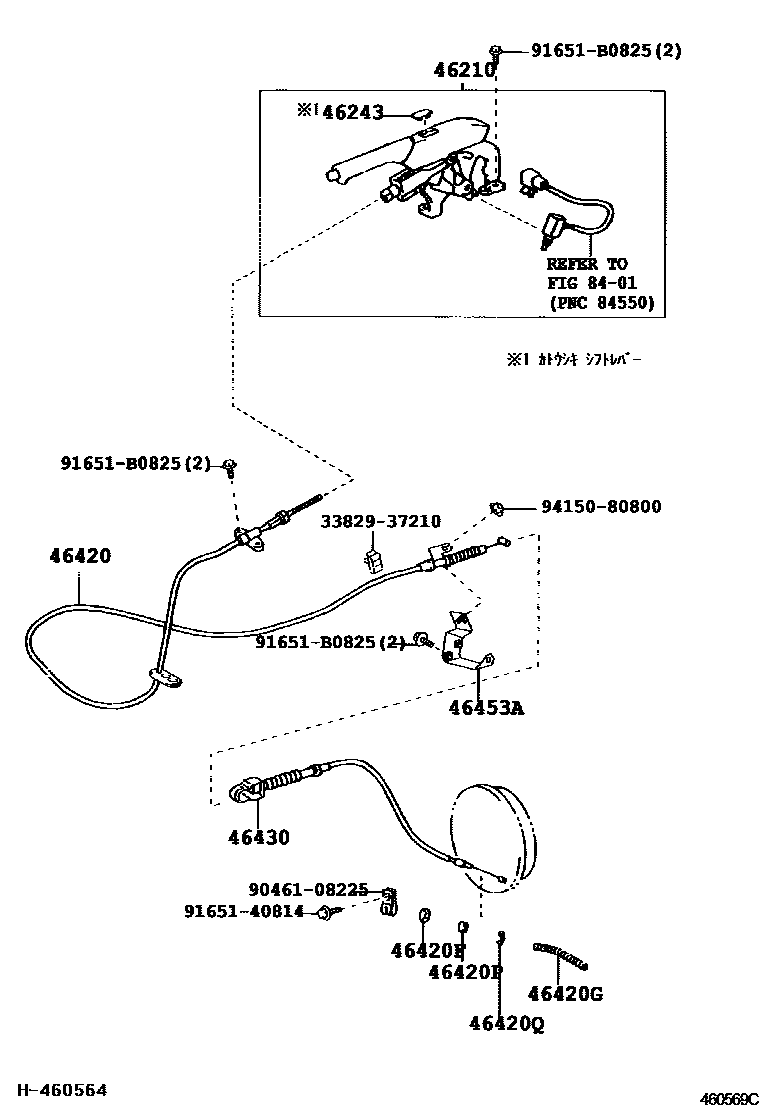

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1 0005 1 0008 1

46210LEVER ASSY, PARKING BRAKE

main46210-37012-B0iXKU304,344200310-200610

main46210-37091-B0iXKU304,344200310-200610

main46210-37100-B0iXKU308,338,34#,508200705-200912

sub46210-37101

main46210-37101-B0iXKU308,338,34#,508201001-201106

sub46210-37240

sub46211-37070

main46210-37110-B0iXKU30#,338,34#,508200610-200912

DK.CHARCOAL,TRIM1#

sub46210-37111

main46210-37111-B0iXKU30#,338,34#,508201001-201106

DK.CHARCOAL,TRIM1#

sub46210-37250

sub46211-37080

main46210-37120-B0iXKU304200610-200910

sub46210-37121

main46210-37121-B0iXKU304200911-200912

sub46210-37122

main46210-37122-B0iXKU304201001-201010

sub46210-37123

main46210-37123-B0iXKU304201011-201104

sub46210-37124

main46210-37124-B0iXKU304201105-201106

sub46210-37260

sub46211-37090

46243COVER, PARKING BRAKE LEVER

main46243-37020-B0iXKU304,344200310-200610

DK.CHARCOAL,TRIM1#

sub46243-37020

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37430iXKU304,344200310-200610

main46420-37560iXKU304;XKU344..5F200610

main46420-37570iXKU308,344,508..6FC200801

main46420-37700iXKU308,338,348,508..5F200610

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXKU304..6FC;XKU308,338,34#,508200310-200610

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXKU304,344200310-200610

46420PSPACER, PARKING BRAKE

main90560-08002iXKU304,344200310-200610

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXKU304,344200310-200610

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37580iXKU304,344200310-200610

main46430-37880iXKU308,344,508..6FC200801-201106

main46430-37A10iXKU304..6FC200908-201106

main46430-37B70iXKU304..5F200610-201106

main46430-37B80iXKU308,338,348,508..5F200610-201106

main46430-37C00iXKU344..5F200610-201106

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37190iXKU304,344200310-200610

main46453-37260iXKU308,344,508..6FC200801

main46453-37300iXKU308,338,348,508..5F200610

8401

3382937210SUPPORT, TRANSMISSION CONTROL CABLE

main33829-37210

9046108225

main90461-08225

9165140814

main91651-40814

91651B0825

main91651-B0825

9415080800

main94150-80800

15 parts on this diagram · 5 diagrams in section
