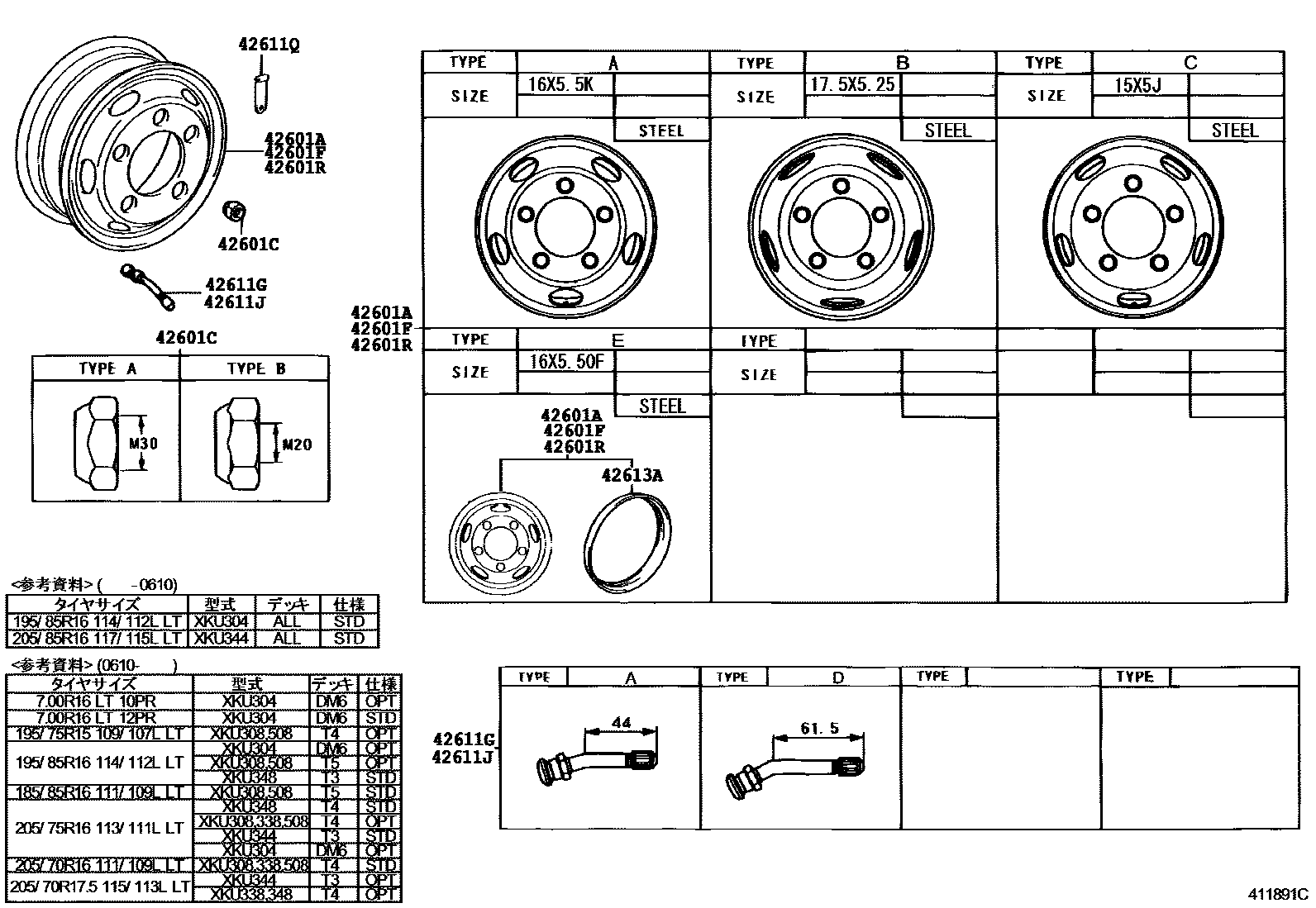

DISC WHEEL & WHEEL CAP

0001 1 0002 1���� 0003 1�� 0004 1

42601AWHEEL, DISC (FOR SPARE)

main42601-37240iXKU30#,348,508..DM6,T3,T5¥12,100200610

main42601-37240iXKU304¥12,100200310-200610

main42601-37250iXKU344¥12,100200310-200610

main42601-37260iXKU344..6FC;XKU338,348..T4¥12,800200610

main42601-37300iXKU308,508..T4¥10,500200610

main42601-37370iXKU508..T4¥11,400200610-200705

sub42601-37300¥10,500

main42601-37400iXKU308..DCRTJ¥13,900200908

main42601-37400iXKU308..T4¥13,900200610-200705

main42601-37570iXKU304¥14,000200310-200610

main42610-37091iXKU304¥13,100200610

42601CNUT, HUB (FOR AXLE)

main42633-37020iXKU30#,338,34#,508¥720200610-201106

main42633-55030iXKU304,344¥710200310-200610

main42634-37020iXKU30#,338,34#,508¥720200610-201106

main42634-55030iXKU304,344¥710200310-200610

main43522-37010iXKU30#,338,34#,508¥1,050200610-201106

main43522-37020iXKU30#,338,34#,508¥1,050200610-201106

main90942-01107iXKU304,344¥550200310-200610

main90942-01108iXKU304,344¥550200310-200610

42601FWHEEL, DISC (FOR FRONT)

main42601-37240iXKU30#,348,508..DM6,T3,T5¥12,100200610

main42601-37240iXKU304¥12,100200310-200610

main42601-37250iXKU344¥12,100200310-200610

main42601-37260iXKU344..6FC;XKU338,348..T4¥12,800200610

main42601-37300iXKU308,508..T4¥10,500200610

main42601-37370iXKU508..T4¥11,400200610

sub42601-37300¥10,500

main42601-37400iXKU308..T4;XKU348..T4..DCRUE¥13,900200610

main42601-37570iXKU304¥14,000200310-200610

main42610-37091iXKU304¥13,100200610

42601RWHEEL, DISC (FOR REAR)

main42601-37240iXKU30#,348,508..DM6,T3,T5¥12,100200610

main42601-37240iXKU304¥12,100200310-200610

main42601-37250iXKU344¥12,100200310-200610

main42601-37260iXKU344..6FC;XKU338,348..T4¥12,800200610

main42601-37300iXKU308,508..T4¥10,500200610

main42601-37370iXKU508..T4¥11,400200610

sub42601-37300¥10,500

main42601-37400iXKU348..T4..DCRTJ¥13,900200610

main42601-37570iXKU304¥14,000200310-200610

main42610-37091iXKU304¥13,100200610

42611GVALVE (FOR TUBELESS TIRE)

main90942-05026iXKU304,344¥740200310-200610

main90942-05034iXKU344..6FC;XKU308,338,348..T4¥760200610

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05026iXKU304,344¥740200310-200610

main90942-05034iXKU344..6FC;XKU338,348..T4;XKU308..T4..DCRUE¥760200610-200705

42611QCLIP (FOR TUBE)

main90468-10014iXKU304¥120200610

42613ARING, DISC WHEEL SIDE

main42613-37030iXKU304¥1,660200610

8 parts on this diagram · 4 diagrams in section
