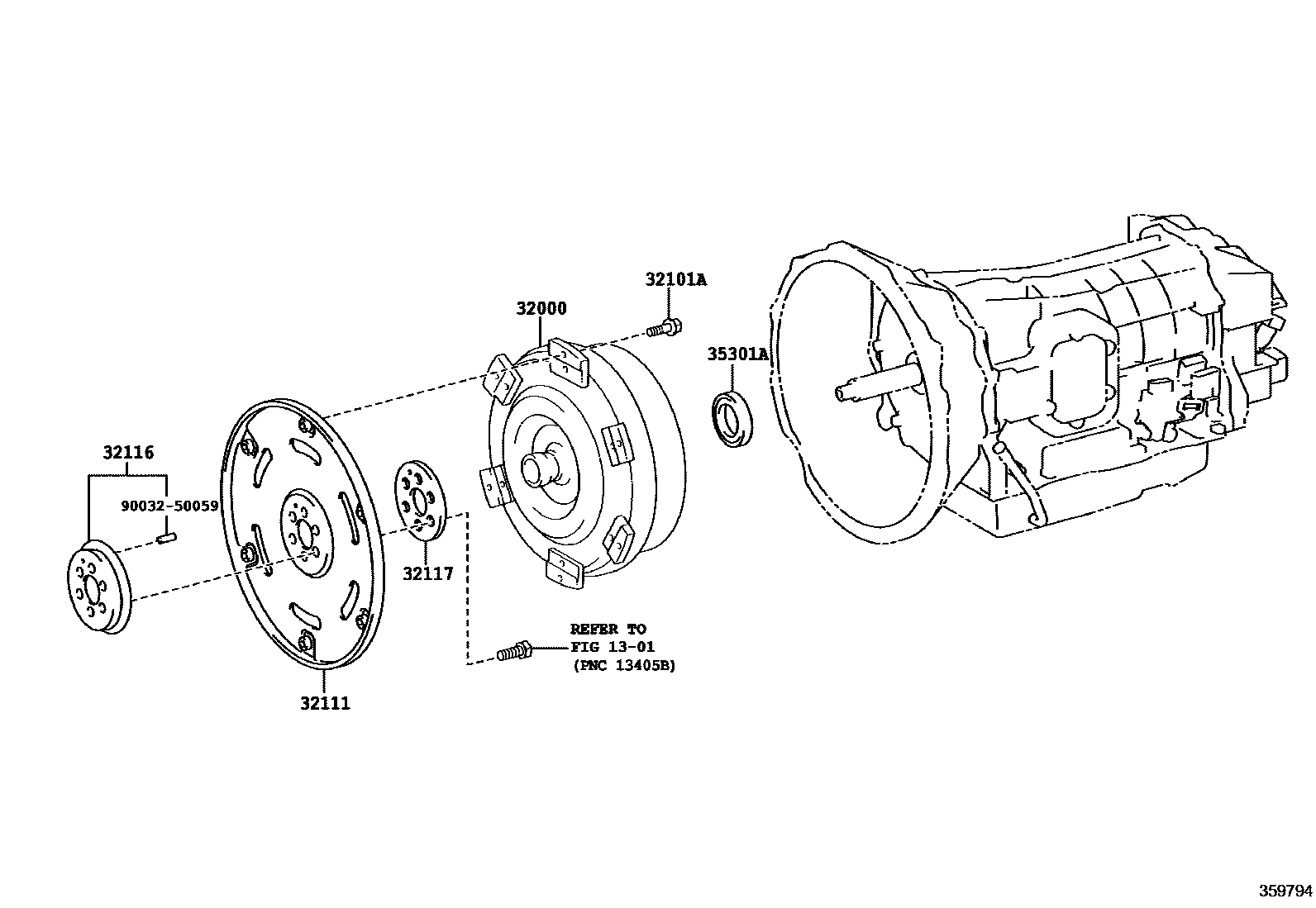

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

1301

32000CONVERTER ASSY, TORQUE

main32000-37030iXKU30#,344,508..6FC200801-201106

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-10894iXKU30#,344,508..6FC200801

32111PLATE, PUMP IMPELLER DRIVE

main32111-37030iXKU30#,344,508..6FC200801-201106

sub32111-37031

32116SPACER, DRIVE PLATE, FRONT

main32116-37010iXKU30#,344,508..6FC200801-201106

32117SPACER, DRIVE PLATE, REAR

main32117-37020iXKU30#,344,508..6FC200801-201106

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-46009iXKU30#,344,508..6FC200801-201106

9003250059

main90032-50059

8 parts on this diagram · 1 diagram in section
