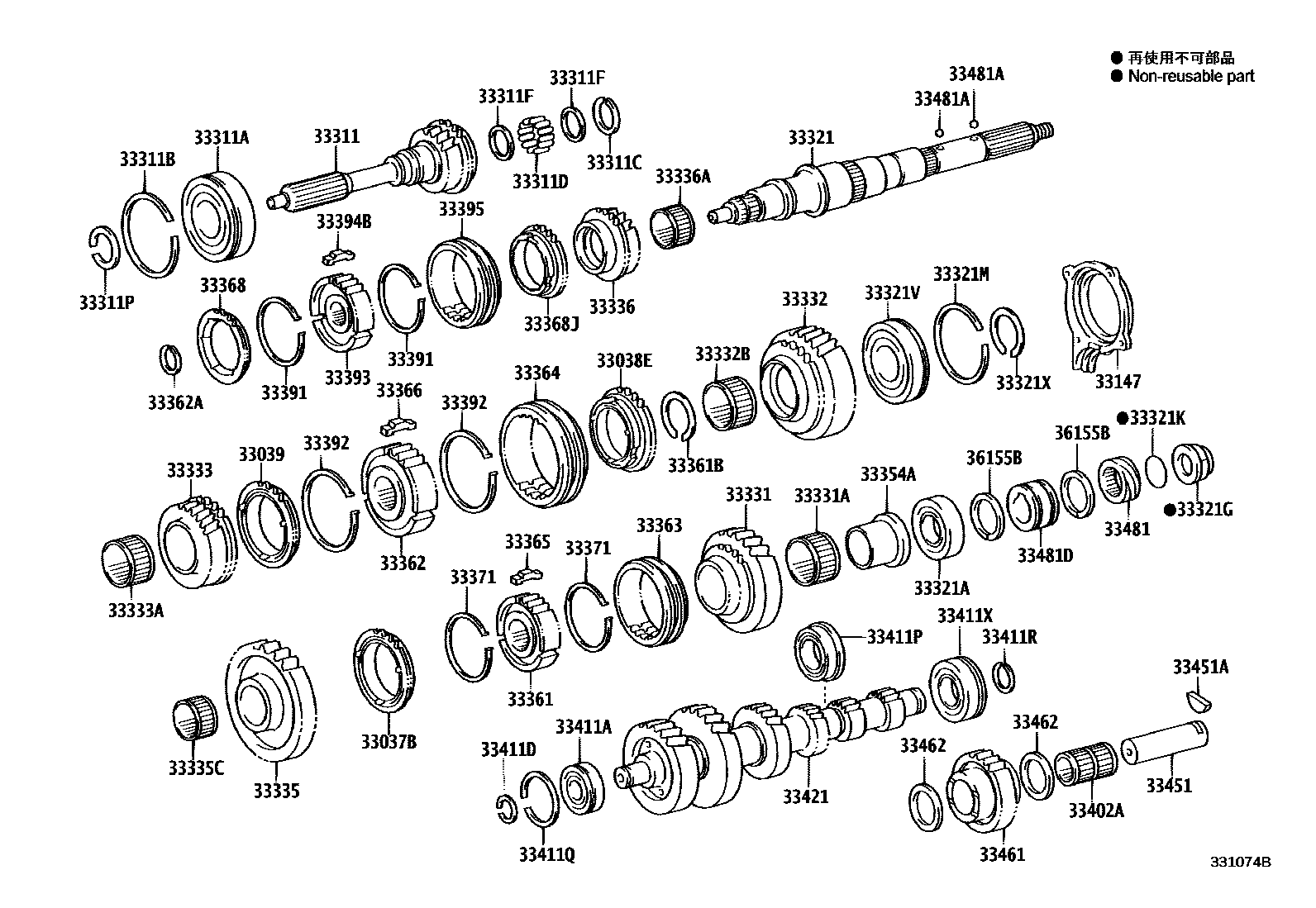

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33039RING SET, SYNCHRONIZER, NO.3
33147RETAINER, BEARING, CENTER
33311SHAFT, INPUT
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33311FSPACER (FOR INPUT SHAFT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33321MRING, SHAFT SNAP (FOR BEARING)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33354ARACE, REVERSE GEAR BEARING, INNER
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
sub33394-36030
33394BKEY, SYNCHROMESH SHIFTING, NO.3
33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33411XBEARING, RADIAL BALL
33421GEAR, COUNTER
33451SHAFT, REVERSE IDLER GEAR
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33461GEAR, REVERSE IDLER
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
36155BRING, TRANSFER OIL SEAL
62 parts on this diagram · 2 diagrams in section
