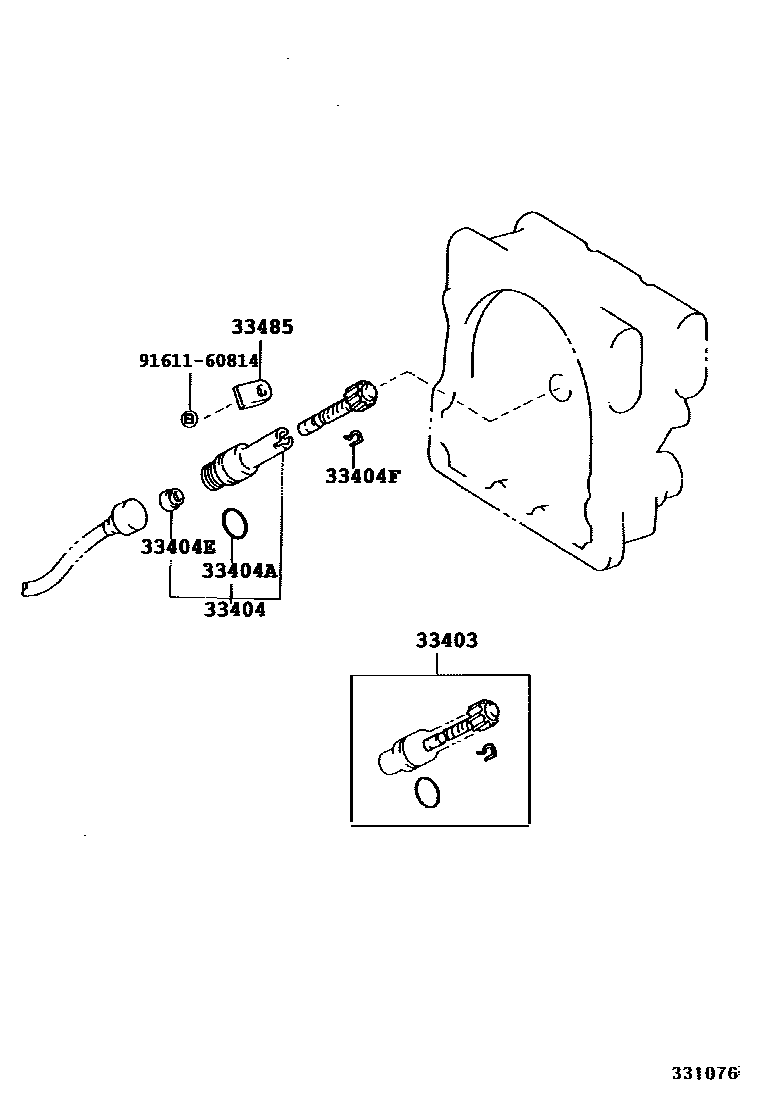

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1H351 0002 1M550

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39205iXKU338..DCRUE;XKU304,344..5F;XKU308,348,508..(T3,T5)..DCRUE;XKU308,348..(T3,T4)..5F..DCRTJ200610-201106

main33482-39525iXKU304,344200310-201106

main33482-39665iXKU338;XKU508..T4..5F..DCRTJ;XKU308,348,508..(T4,T5)..5F..DCRUE200310-201106

main33482-39675iXKU304,344200310-200610

main33482-39685iXKU304200310-200610

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iXKU30#,338,34#,508..5F200310-201106

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iXKU304,344200310-201106

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iXKU304,344200310-200610

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXKU304,344200310-200610

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iXKU304,344200310-200610

9161160814

main91611-60814

7 parts on this diagram · 2 diagrams in section
