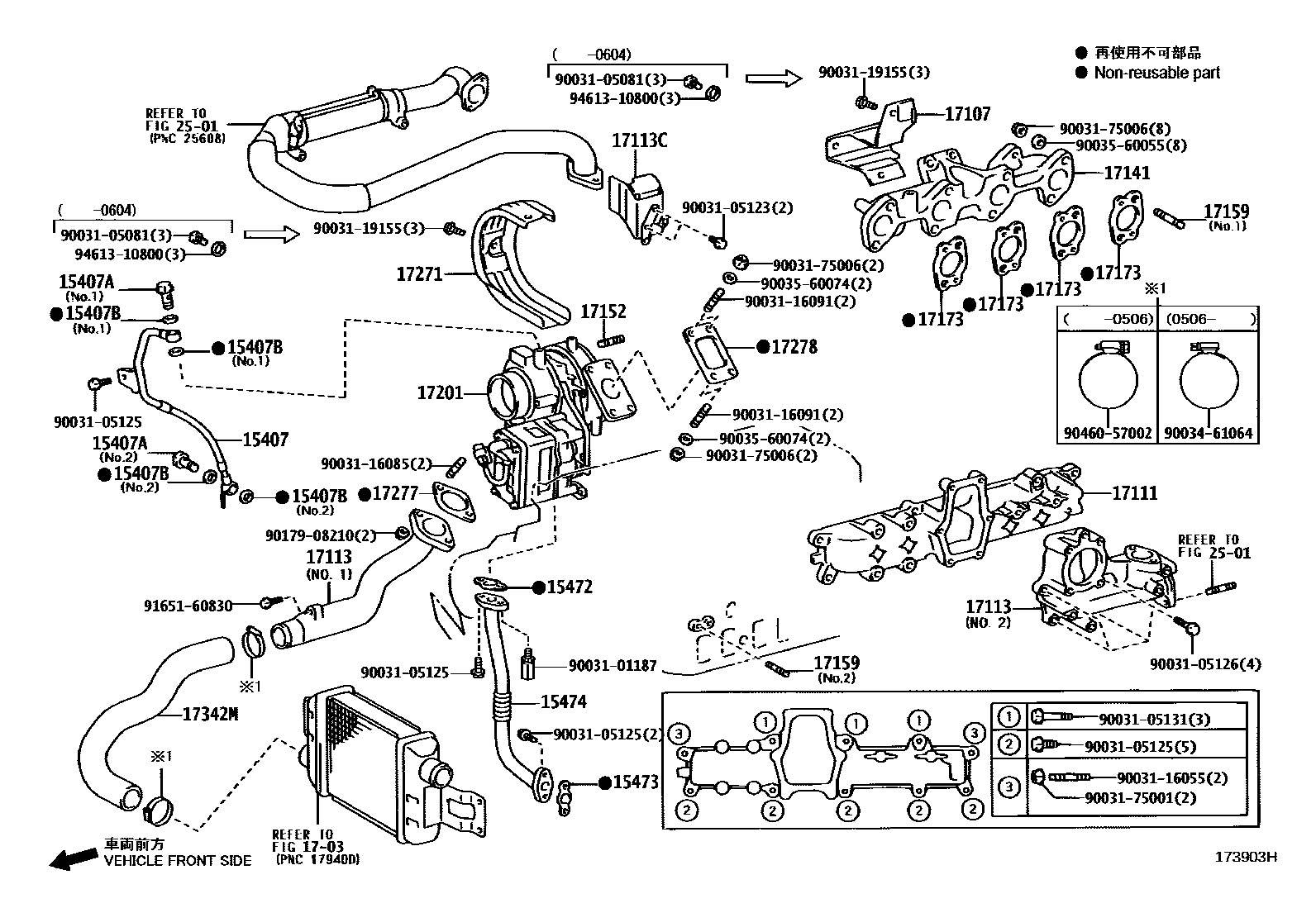

MANIFOLD

0001 1 0002 1 0003 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-78030iN04C..XKU30#,338,34#,508200610

sub15407-E0010

main29601-78090iN04C..XKU304,344200310-200610

subS2410-61330

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90031-09073iN04C..XKU304,344200310-200610

main90034-01010iN04C..XKU304,344200310-200610

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90201-12030×2iN04C..XKU30#,338,34#,508200610

main90201-14014×2iN04C..XKU30#,338,34#,508200610

main90202-14004×2iN04C..XKU304,344200310-200610

15472GASKET, TURBO OIL OUTLET, NO.1

main15471-78010iN04C..XKU304,344200310-200502

main15471-78011iN04C..XKU304,344200502-200610

subS2413-51161

15473GASKET, TURBO OIL OUTLET, NO.2

main15471-78010iN04C..XKU304,344200310-200502

main15471-78011iN04C..XKU304,344200502-200610

subS2413-51161

15474PIPE, TURBO OIL OUTLET

main15407-78040iN04C..XKU30#,338,34#,508200610

sub15407-E0040

main29601-78110iN04C..XKU304,344200310-200610

subS2410-72050

1703

17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT

main17107-78060iN04C..XKU304,344200310-200601

main17107-78061iN04C..XKU304,344200601-200610

sub17107-78062

main17107-78161iN04C..XKU30#,338,34#,508200610-200811

main17107-78162iN04C..XKU30#,338,34#,508200811-201106

sub17107-E0012

17111MANIFOLD, INTAKE

main17111-78050iN04C..XKU304,344200310-200610

sub17111-E0210

17113PIPE, INTAKE

main17113-78100iN04C..XKU304,344200310-200610

main17113-78120iN04C..XKU304,344200310-200505

main17113-78121iN04C..XKU304,344200505-200512

main17113-78122iN04C..XKU304,344200512-200610

sub17113-E0A50

main17113-78210iN04C..XKU30#,338,34#,508200610

17113CINSULATOR, INTAKE PIPE

main17107-78080iN04C..XKU304,344200310-200610

subS1704-44560

17141MANIFOLD, EXHAUST

main17141-78100iN04C..XKU304,344200310-200610

subS1714-16411

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16091×3iN04C..XKU304,344200310-200610

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90031-16069×8iN04C..XKU304,344200310-200610

main90031-16085×2iN04C..XKU30#,338,34#,508200610

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78040×4iN04C..XKU304,344200310-200610

subS1710-41880

17201TURBOCHARGER SUB-ASSY

main17201-78031iN04C..XKU304,344200310-200610

sub17201-78032

main17201-78141iN04C..XKU30#,338,34#,508200610-200712

main17201-78142iN04C..XKU30#,338,34#,508200712-200807

main17201-78143iN04C..XKU30#,338,34#,508200807-201006

main17201-78144iN04C..XKU30#,338,34#,508201006

17271INSULATOR, TURBO, NO.1

main17271-78020iN04C..XKU304,344200310-200610

subS1704-44550

main17271-78040iN04C..XKU30#,338,34#,508200610

sub17271-E0010

17277GASKET, COMPRESSOR OUTLET

main17277-78010iN04C..XKU304,344200310-200607

subS2417-91430

main17277-78020iN04C..XKU304,344200608-200610

sub17277-78030

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-78020iN04C..XKU304,344200310-200610

subS2410-91860

17342MHOSE, AIR, NO.2

main17342-78020iN04C..XKU304,344200310-200610

sub17342-78021

2501

9003101187

main90031-01187

9003105081

main90031-05081

9003105123

main90031-05123

9003105125

main90031-05125

9003105126

main90031-05126

9003105131

main90031-05131

9003116055

main90031-16055

9003116085

main90031-16085

9003116091

main90031-16091

9003119155

main90031-19155

9003175001

main90031-75001

9003175006

main90031-75006

9003461064

main90034-61064

9003560055

main90035-60055

9003560074

main90035-60074

9017908210

main90179-08210

9046057002

main90460-57002

9165160830

main91651-60830

9461310800

main94613-10800

40 parts on this diagram · 3 diagrams in section
