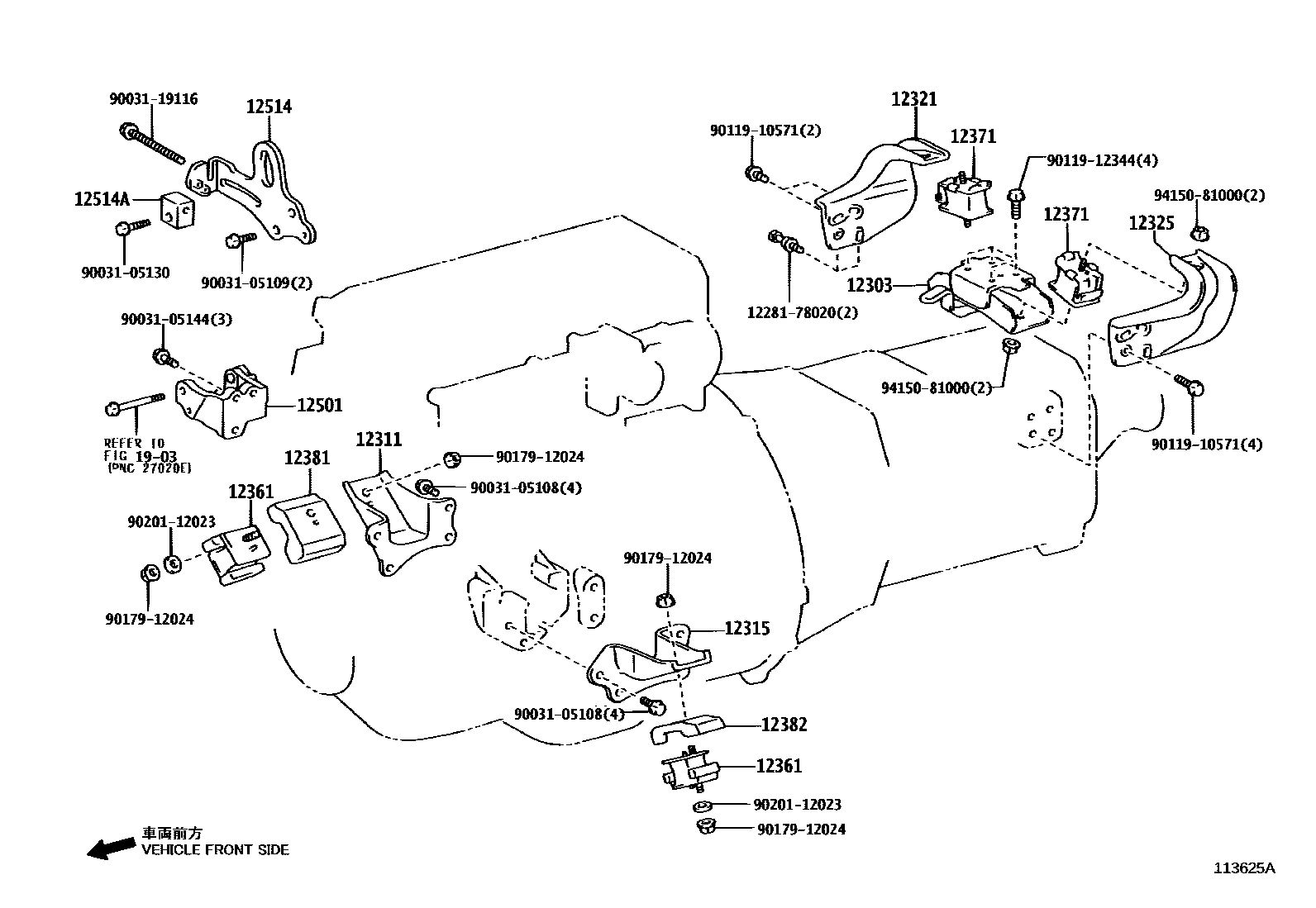

MOUNTING

0001 1 0002 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-78010iN04C..XKU30#,338,34#,508200610-201106

sub12303-78011

main12303-78030iN04C..XKU304,344200310-200610

sub12303-78031

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-78050iN04C..XKU30#,338,34#,508200610

subS1231-11950

main12311-78060iN04C..XKU304,344200310-200610

subS1231-11970

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-78040iN04C..XKU304,344200310-200610

subS1231-51960

main12315-78050iN04C..XKU30#,338,34#,508200610

subS1231-52000

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-78090iN04C..XKU304,344200310-200610

main12321-78470iN04C..XKU30#,338,34#,508..5F200610-201106

main12321-78530iN04C..XKU30#,344,508..6FC200801-201106

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-78070iN04C..XKU304,344200310-200610

main12325-78440iN04C..XKU30#,338,34#,508..5F200610-201106

main12325-78500iN04C..XKU30#,344,508..6FC200801-201106

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58130iN04C..XKU304,344200310-200610

sub12361-58131

main12361-58130iN04C..XKU304,344200610-201106

sub12361-58131

main12361-78160iN04C..XKU308,338,348,508200610-201106

sub12361-78161

main12361-78170iN04C..XKU308,338,348,508200610-201106

sub12361-78171

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-78010iN04C..XKU304,344200310-201106

sub12371-78060

12381STABILIZER, ENGINE MOUNTING

main12381-78030iN04C..XKU304,344200310-200610

sub12381-78032

main12381-78040iN04C..XKU304,344200610

12382STABILIZER, ENGINE MOUNTING, LH

main12381-78030iN04C..XKU304,344200310-200610

sub12381-78032

main12381-78040iN04C..XKU304,344200610

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-78071iN04C..XKU304,344200310-200407

main12501-78111iN04C..XKU338..DCRTJ200610-201106

main12501-78130iN04C..XKU304,344200407-200610

sub12511-E0580

main12511-78120iN04C..XKU30#,338,34#,508200610-201007

sub12511-78121

main12511-78121iN04C..XKU30#,338,34#,508201007-201103

sub12511-E0021

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-78082iN04C..XKU304,344200310-200610

main12514-78150iN04C..XKU30#,338,34#,508200610-201010

subS1205-E0020

main12514-78270iN04C..XKU30#,338,34#,508201010

subS1205-E0390

12514ASLIDER, FAN BELT ADJUSTING

main12519-78020iN04C..XKU304,344200310-200610

sub12519-E0010

main12519-78020iN04C..XKU30#,338,34#,508200610-201010

sub12519-E0010

main12519-78050iN04C..XKU30#,338,34#,508201010

1903

1228178020HANGER, ENGINE, NO.1

main12281-78020

9003105108

main90031-05108

9003105109

main90031-05109

9003105130

main90031-05130

9003105144

main90031-05144

9003119116

main90031-19116

9011910571

main90119-10571

9011912344

main90119-12344

9017912024

main90179-12024

9020112023

main90201-12023

9415081000

main94150-81000

24 parts on this diagram · 2 diagrams in section
