CAUTION PLATE

31191LABEL, CLUTCH INFORMATION

main31191-36020iWU75,90,95198808-199505

33621APLATE, CONTROL LEVER CAUTION

main33621-25020iWU85,93,YU6#,70198808-199505

sub33621-37020

35519PLATE, AUTOMATIC TRANSMISSION CAUTION

65539PLATE, SIDE GATE CAUTION

main65539-92870×2iWU93,95..CBU198808-199505

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-95400iWU75,85,9#,YU6#,70198808-199008

main74517-95A00iYU6#,70..CBR199008-199505

74525APLATE, GLIDE DOOR CAUTION

74525BPLATE, DUMP

main74525-93103iWU75,YU61..CBU198808-199505

74525CPLATE, DUMP MANUAL CAUTION

74526BLABEL, DUMP REGULATION

main74526-93100iWU75,YU61..CBU198808-199505

74528LABEL, HOIST CYLINDER

main74528-93100iYU61..CBU199210-199309

main74528-93200iWU75..CBU199109-199505

main74528-96303iWU75,YU61..CBU198808-199109

74533PLATE, TRANSFER CAUTION

main33621-36100iWU75,90,95198808-199505

74533BPLATE, SHIFTING INSTRUCTION

74535BPLATE, TAIL GATE CAUTION

74535EPLATE, SHIFTING

main74535-96302iYU61;WU75..CBU198808-199505

74535FLABEL, GATE HELPER INFORMATION

main74535-37010×2iWU85,9#..CBU199109-199505

74537CPLATE, DUMP LEVER

main74537-96306iYU61;WU75..CBU198808-199505

74538APLATE, AIR CLEANER INLET OPERATIONAL CAUTION

74541PLATE, TIRE PRESSURE CAUTION

main74552-3B010iWU95198808-199505

main74552-3B020iWU93..T3..20T199109-199505

main74552-3B170iYU60..T3..WT198808-199505

main74552-3B420iWU85..T4199109-199505

main74552-3B460iWU85..T3..20T198910-199505

main74552-3B480iWU90..T4198910-199505

main74552-3B490iWU90..T3198910-199505

main74552-3B500iWU75198910-199109

main74552-3B630iWU93..T4199109-199505

main74552-3B640iWU93..30T199109-199505

main74552-3B650iWU75199109-199505

main74582-36400iYU60..ST..20T198808-199505

main74582-36410iYU60..ST..175198808-199505

main74582-36420iYU60..ST..20T198808-199505

main74582-36430iYU70198808-199305

main74582-36450iYU60..T2198808-199505

main74582-36570iYU60..WT..175198808-199505

main74582-36770iWU90..T4198808-198910

main74582-36820iYU61198808-199305

main74582-36870iWU85..30T198910-199505

main74582-36880iWU75198808-198910

main74582-36890iWU90..T3198808-198910

74544DPLATE, TIRE CARRIER CAUTION

main74544-36020iWU85,9#,YU60..T1,T3,T4,TW1199305-199505

main74544-96301iWU75..CBU198808-199109

74545ALABEL, DUMP GREASE

main74545-93200iWU75..CBU199109-199505

main74545-96305iYU61..CBU198808-199309

main74545-96306iWU75..CBU198808-199109

74551BPLATE, REAR NO.2 SEAT CAUTION

74552PLATE, SAFETY CAUTION

main74552-93102×2iWU75,YU61..CBU198808-199505

74559APLATE, FUEL CAUTION

main74559-14010iYU6#,70..CBR198808-198905

main74559-36010iWU9#..T3;WU85..30T198808-199505

sub74538-37030

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-25110iYU60..LPG198811-199010

main74562-36121iWU75,9#198808-198910

main74562-36170iYU6#,70..CBR198808-199008

main74562-36171iYU6#,70..CBR199008-199309

main74562-36172iYU60..CBR199309-199505

main74562-36220iWU75,85,9#198910-199505

main74562-36270iYU60..LPG199010-199310

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-36150iWU93199109-199505

74563ALABEL, ROOF VENTILATOR INFORMATION

main74563-95403iWU75,85,9#,YU6#198808-199505

74565BLABEL, HAND TRUCK INFORMATION

74566BPLATE, POWER TAKE OFF CAUTION

main74566-93106iWU75..IV3;WU85,9#,YU60198808-199505

74566CPLATE, FRONT SLIDE DOOR CAUTION

main74566-95401iYU60..T3..WT..CBR..IV3198808-199505

74566DLABEL, POWER TAKE OFF VALVE LINK COVER CAUTION

main74566-96300iYU61199109-199309

74567BPLATE, FRONT SLIDE DOOR ARM CAUTION

main74567-95401iYU60..T3..WT..CBR..IV3198808-199505

74568APLATE, FRONT SLIDE DOOR CAUTION, NO.2

main74568-95401iYU60..T3..WT..CBR..IV3198808-199505

74571PLATE, BRAKE FLUID CAUTION

main47287-28020iWU75,85,9#,YU60199311-199505

main47288-32010iWU75,85,9#,YU6#,70198808-199311

74574PLATE, NOISE IDENTIFICATION

main74574-36390iWU93199109-199505

74579PLATE, UNLEADED FUEL CAUTION

main74579-30011iYU6#,70..CBR199008-199203

74581PLATE, POWER STEERING CAUTION

main74581-37010iWU75,85,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

74582APLATE, SAFETY CAUTION

74582BPLATE, SAFETY CAUTION

main74582-36270iWU75,85,9#,YU60..IV3199305-199312

74583PLATE, SEAT SUSPENSION CAUTION

main74583-95402iWU75,85,9#,YU6#,70198808-199505

sub74583-37010

74585PLATE, TIRE CARRIER CAUTION, NO.2

main74585-25010iYU60..T2,TW2198808-199505

74586PLATE, TIRE CARRIER CAUTION, NO.3

main74586-25010iYU60..T2,TW2198808-199505

74859APLATE, CAUTION, REAR SEPARATOR

main74859-95A00iYU70..06S198808-199309

75341BPLATE, HOOD NAME

main75341-20060iWU75,85,9#,YU6#,70199008-199505

75476APLATE, TILT OPERATIONAL CAUTION

main75476-95417iYU6#..20T198808-199505

main75476-95420iWU75,85,9#198808-199505

75477APLATE, TILT OPERATIONAL CAUTION, NO.2

main75477-95409iWU75,85,9#,YU6#..03S198808-199505

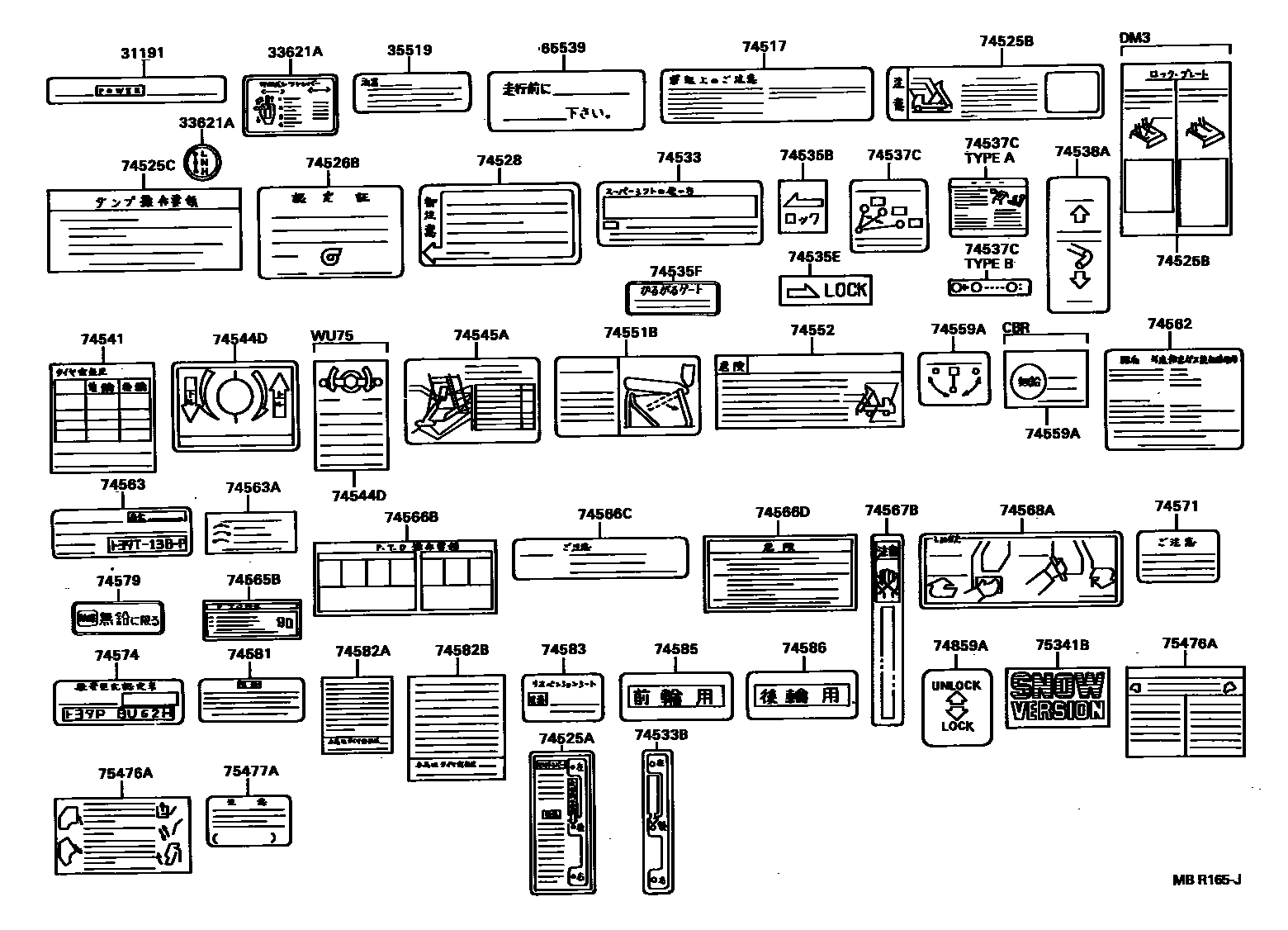

45 parts on this diagram · 1 diagram in section
