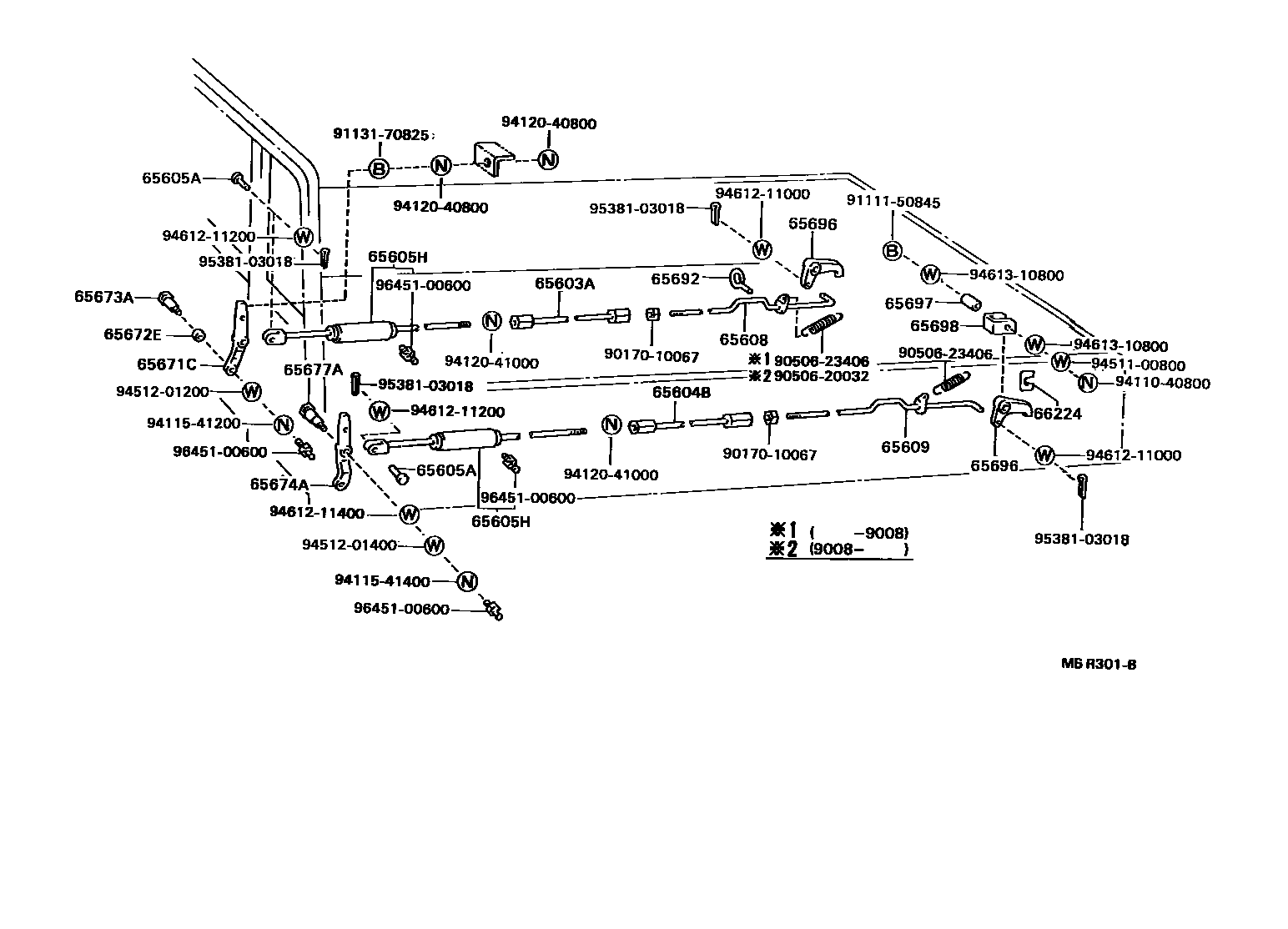

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK

0001 1 0002 1 0003 1

65603AARM ASSY, TAIL GATE LOCK ROLLER, RH

main65603-93102iYU61..CBU198808-199309

main65603-93202iWU75..CBU199109-199505

65604BARM ASSY, TAIL GATE LOCK ROLLER, LH

main65604-93102iYU61..CBU198808-199309

main65604-93202iWU75..CBU199109-199505

main65604-96304×2iWU75..CBU198808-199109

65605APIN, TAIL GATE LOCK LINK

main90240-10004×2iYU61..CBU198808-199309

main90240-12045×2iWU75..CBU198808-199007

65605HLINK SUB-ASSY, TAIL GATE LOCK W/ SPRING

main65605-96310×2iWU75..CBU198808-199109

65608LINK SUB-ASSY, TAIL GATE LOCK, REAR RH

main65077-93200iWU75..CBU199008-199109

main65608-96304iWU75..CBU198808-199008

65609LINK SUB-ASSY, TAIL GATE LOCK, REAR LH

main65078-93200iWU75..CBU199008-199109

main65609-96304iWU75..CBU198808-199008

65671CARM, ROLLER, RH

main65671-96304iWU75..CBU198808-199109

65672EROLLER, TAIL GATE LOCK

main65603-96304×2iWU75..CBU198808-199109

65673ASHAFT, ROLLER

main65673-96305×2iWU75..CBU198808-199109

65674AARM, ROLLER, LH

main65674-96304iWU75..CBU198808-199109

65677ASHAFT, ROLLER ARM

main65677-96303×2iWU75..CBU198808-199109

65692GUIDE, LINK

main65616-93300×4iWU75..CBU198910-199109

main65692-96301×4iWU75..CBU198808-198910

65696LATCH, TAIL GATE LOCK

main65696-96301×2iWU75..CBU198808-199109

main65780-93101iYU61..CBU198808-199309

main65780-93200iWU75..CBU199109-199505

main65790-93101iYU61..CBU198808-199309

main65790-93200iWU75..CBU199109-199505

65697PIN, LATCH

main65697-96303×2iWU75..CBU198808-199109

65698BRACKET, TAIL GATE LATCH

main65698-96304×2iWU75..CBU198808-199109

66224SUPPORT, TAIL GATE HINGE PIN

main66224-96303×2iWU75..CBU198808-199109

9017010067

main90170-10067

9050620032

main90506-20032

9050623406

main90506-23406

9111150845

main91111-50845

9113170825

main91131-70825

9411040800

main94110-40800

9411541200

main94115-41200

9411541400

main94115-41400

9412040800

main94120-40800

9412041000

main94120-41000

9451100800

main94511-00800

9451201200

main94512-01200

9451201400

main94512-01400

9461211000

main94612-11000

9461211200

main94612-11200

9461211400

main94612-11400

9461310800

main94613-10800

9538103018

main95381-03018

9645100600

main96451-00600

35 parts on this diagram · 3 diagrams in section
