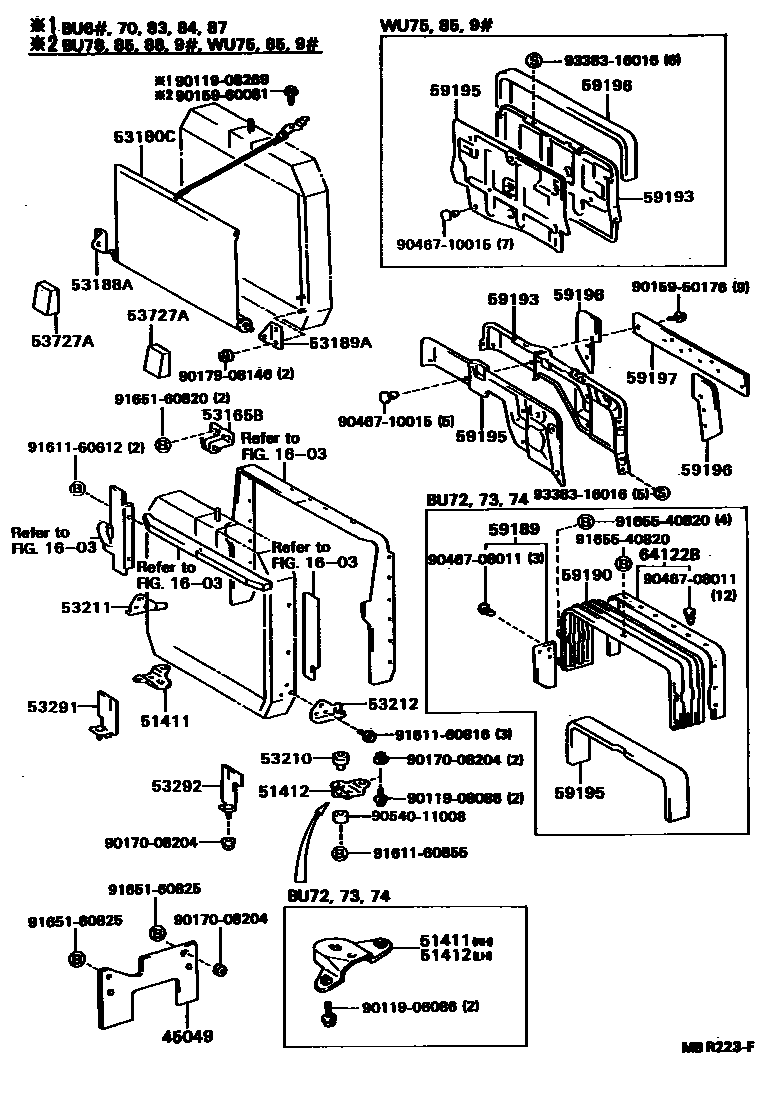

RADIATOR SUPPORT & WIND GUIDE

1603

45049PROTECTOR SUB-ASSY, STEERING LINK

51411BRACKET, RADIATOR SUPPORT, RH

main51411-36080iYU61198808-199309

main51411-36100iWU75,85,9#198808-199505

main51411-36120iYU60,70198808-199505

51412BRACKET, RADIATOR SUPPORT, LH

main51412-36080iYU61198808-199309

main51412-36090iYU60,70198808-199505

main51412-36100iWU75,85,9#198808-199505

53165BSUPPORT, RADIATOR, CENTER

main53165-36011iWU75,85,9#198808-199505

main53165-36040iYU6#,70198808-199505

53180CSHUTTER ASSY, RADIATOR

main53180-95404iWU75,85,9#198808-199505

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-95405iWU75,85,9#198808-199505

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-95403iWU75,85,9#198808-199505

53210SUPPORT ASSY, RADIATOR

main53210-36010iWU75,85,9#,YU6#,70198808-199505

53211SUPPORT, RADIATOR, RH

main53211-36020iWU75,85,9#,YU61198808-199505

main53211-36060iYU60,70198808-199505

53212SUPPORT, RADIATOR, LH

main53212-36020iWU75,85,9#,YU6#,70198808-199505

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

53727ASHUTTER, HOT AIR SIDE

main53727-95402iWU75,85,9#198910-199505

59189COVER, NOISE SHUTTER SIDE

59190GUARD ASSY, NOISE SHUTTER

59193GUARD, NOISE SHUTTER

main59193-95402iWU75,85,9#198808-199505

59195INSULATOR, NOISE SHUTTER

main59195-95402iWU75,85,9#198808-199505

59196SEAL, NOISE SHUTTER, UPPER NO.1

main59196-95401iWU75,85,9#198808-199505

59197SEAL, NOISE SHUTTER, UPPER NO.2

64122BPLATE, BAFFLE DUST REAR BODY

8338316016

main83383-16016

9011906086

main90119-06086

9011908086

main90119-08086

9011908269

main90119-08269

9015950176

main90159-50176

9015960081

main90159-60081

9017008204

main90170-08204

9017908146

main90179-08146

9046708011

main90467-08011

9046710015

main90467-10015

9054011008

main90540-11008

9161160612

main91611-60612

9161160816

main91611-60816

9161160855

main91611-60855

9165160820

main91651-60820

9165160825

main91651-60825

9165540820

main91655-40820

9338316016

main93383-16016

39 parts on this diagram · 1 diagram in section
