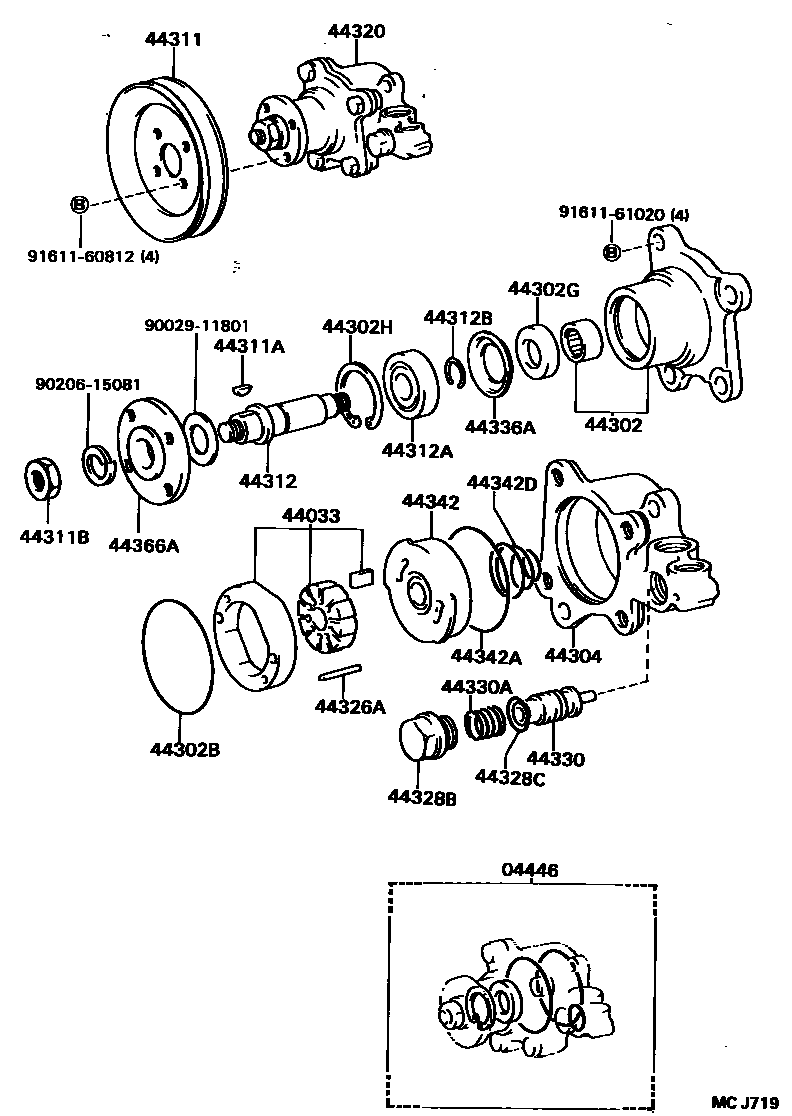

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36030iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

main04446-36070iWU75,9#,YU6#,70199106-199109

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iWU75,90,95199502-199505

main44033-36060iYU60..T3..WT;YU60..T2,TW1,TW2;YU60..TOY..ST..20T199502-199505

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36170iYU6#,70..DM1,SRF,T1,T2,T3,TW2198808-199001

main44302-89102iWU75,90,95198808-199302

main44302-89103iWU75,90,95199302-199505

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21004iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

main90029-21018iYU6#,70199104-199109

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36170iYU6#,70..DM1,SRF,T1,T2,T3,TW2198808-199001

main44304-89103iWU75,90,95198808-199505

44311PULLEY, VANE PUMP

main44311-36030iYU6#,70199001-199109

44311AKEY, VANE PUMP PULLEY

main90029-18001iYU6#,70..DM1,SRF,T1,T2,T3,TW2198808-199001

main90029-18002iWU75,90,95198808-199505

44311BNUT(FOR VANE PUMP PULLEY)

main90029-07001iYU60..T3..WT;YU60..TOY..T3..ST;YU60..DYN..ST..LPG;YU6#,70..DM1,SRF,T2,TW1,TW2199109-199505

main90179-14009iWU75,85,9#198808-199505

44312SHAFT, VANE PUMP

main44312-36100iYU6#,70199001-199109

main44312-89101iWU75,90,95198808-199505

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iWU75,90,95198808-199505

main90029-36004iYU6#,70199001-199109

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

44320PUMP ASSY, VANE

main44320-36050iYU60..T3..WT;YU60..TOY..T3..ST;YU60..DYN..ST..LPG;YU60,70..SRF,T2,TW1,TW2199109-199505

main44320-36150iYU61198808-199309

main44320-89103iWU75,90,95198808-199505

main44320-89104iWU85,93198910-199505

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

44328BEND, VANE PUMP HOUSING

main44328-89101iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main96711-19020iYU6#,70..DM1,SRF,T1,T2,T3,TW2198808-199001

44330VALVE ASSY, FLOW CONTROL

main44330-36050iYU60,70199001-199109

main44330-36060iYU60,70..SRF,T1,T2,T3,TW2198808-199001

main44330-36070iYU60,70..SRF,T1,T2,T3,TW2198808-199001

main44330-36080iYU61198808-199309

main44330-36090iYU61198808-199309

main44330-36100iYU61198808-199309

main44330-89103iWU75,90,95198808-199505

main44330-89104iWU75,90,95198808-199505

main44330-89105iWU75,90,95198808-199505

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iYU60..T3..WT;YU60..T2,TW1,TW2;YU60..TOY..T3..ST;WU75,90,95,YU61,70;YU60..DYN..ST..LPG199109-199505

44336ARETAINER, VANE PUMP OIL SEAL

main44336-89101iWU75,9#,YU6#,70199001-199109

44342PLATE, VANE PUMP SIDE, REAR

main44342-89102iYU60..T3..WT;YU60..T2,TW1,TW2;YU60..TOY..T3..ST;WU75,90,95,YU61,70;YU60..DYN..ST..LPG199109-199505

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3,T4,TW2198808-199001

44366ASEAT, PUMP PULLEY

main44366-36021iYU6#,70..DM1,SRF,T1,T2,T3,TW2198808-199001

9002911801

main90029-11801

9020615081

main90206-15081

9161160812

main91611-60812

9161161020

main91611-61020

28 parts on this diagram · 4 diagrams in section
