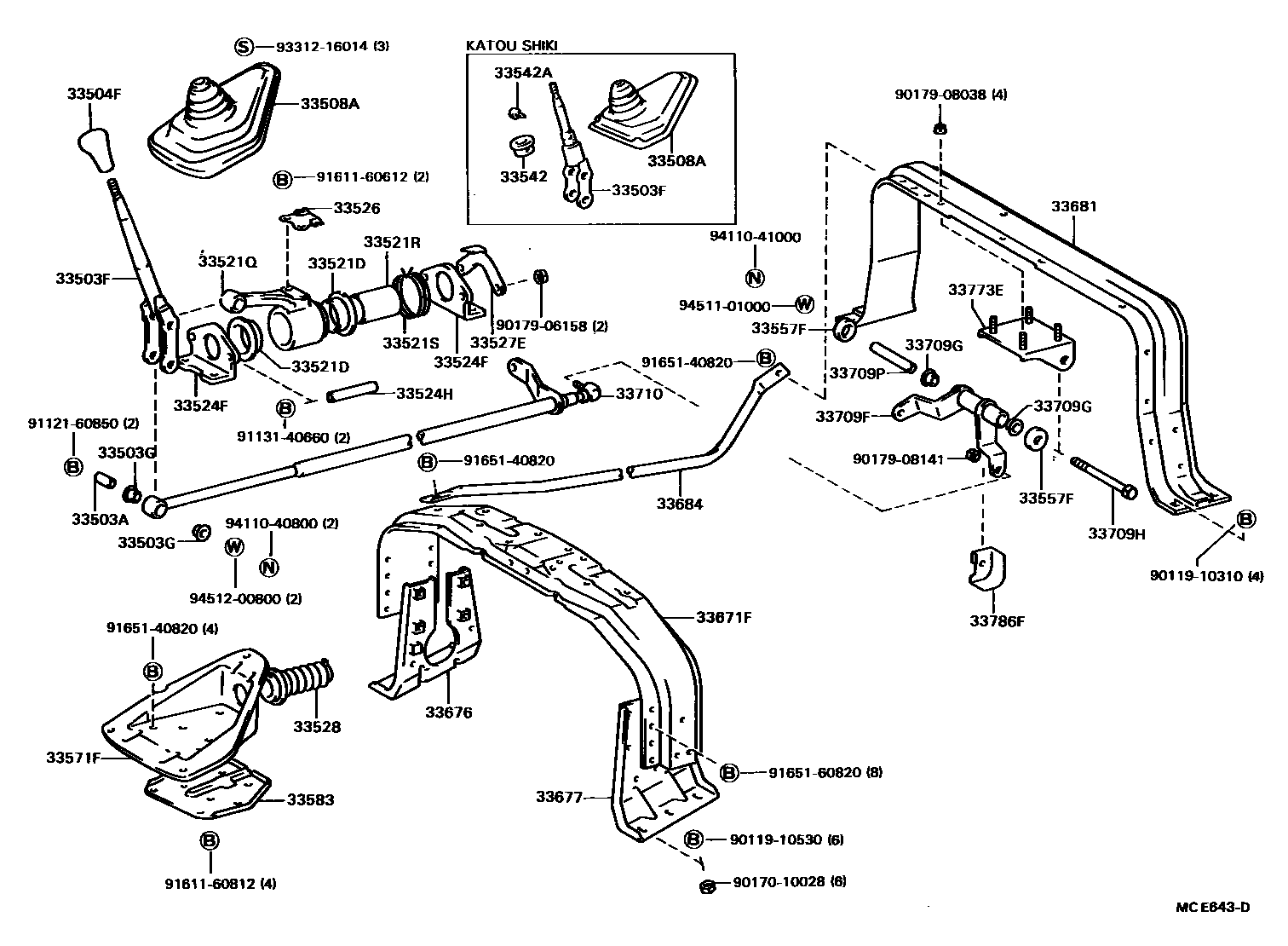

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33503ACOLLAR(FOR SHIFT LEVER)

main90387-08009×2iWU75,85,9#,YU6#,70198808-199401

main90387-08065×2iWU75,85,9#,YU60199401-199505

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33501-36210iWU85,93,YU6#,70199109-199401

main33501-36211iWU85,93,YU60199401-199505

main33503-36060iWU85,YU6#,70198808-199109

main33503-36100iWU75,90,95198808-199401

main33503-36101iWU75,90,95199401-199505

33503GBUSH(FOR SHIFT LEVER)

main90389-11006×4iWU75,85,9#,YU6#,70198808-199505

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-06iWU75,9#..DYN198808-199109

BROWN,TRIM4#

main33504-24010-34iWU75,9#..TOY198808-199109

DEEP BLUE,TRIM8#

main33504-24010-48iWU75,90,95199109-199309

GRAY,TRIM1#

main33504-35030-B1iWU75,90,95199309-199505

BLUISH GRAY,TRIM1#

sub33504-60121

main33504-36050-04iWU85,YU6#..TOY198808-199109

BLUE,TRIM8#

main33504-36050-06iWU85,YU6#,70..DYN198808-199109

BROWN,TRIM4#

main33504-36050-B0iWU85,93,YU6#,70199109-199309

GRAY,TRIM1#

main33504-36051-B0iWU85,93,YU60199309-199505

GRAY,TRIM1#

main33542-36050iWU75,90,95198808-199505

FOR SUPER SHIFT

33508ABOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT)

main33508-36010iWU85,YU6#,70198808-199109

main33508-36030iWU75,85,9#,YU6#,70199109-199505

33521DBUSH (FOR SHIFT LEVER HOUSING)

main90389-38004×2iWU75,85,9#,YU6#,70198808-199505

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-36050iWU75,85,9#,YU6#,70198808-199401

main33521-36051iWU75,85,9#,YU60199401-199505

33521RCOLLAR (FOR SHIFT LEVER HOUSING)

main90387-34001iWU75,85,9#,YU6#,70198808-199505

33521SSPRING (FOR SHIFT LEVER HOUSING)

main90508-26063iYU6#,70198808-199505

main90508-26067iWU75,85,9#198808-199109

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-36030×2iWU75,85,9#,YU6#,70198808-199505

33524HCOLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)

main90387-06026×2iWU75,85,9#,YU6#,70198808-199505

33526PLATE, SHIFT LEVER SUPPORT, NO.1

main33526-36010iYU6#,70198808-199505

main33526-36030iWU75,85,9#198808-199505

33527EPLATE, SHIFT LEVER SUPPORT, NO.2

main33527-36130iWU75,85,9#,YU6#,70198808-199505

33528COVER, CONTROL SHAFT

main33528-36020iWU75,85,9#,YU6#,70198808-199505

33542KNOB, SPRING BACK SHIFT LEVER

main33542-25010iWU85,93,YU6#,70198808-199505

33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)

main90159-40109×2iWU75,85,9#,YU6#,70198808-199505

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-36020×2iWU75,85,9#,YU6#,70198808-199505

33571FBRACKET, CONTROL SHAFT, LOWER NO.2

main33571-36090iWU85,93,YU6#,70198808-199505

main33571-36160iWU75,90,95198808-199505

33583BRACKET, CONTROL SHAFT, LOWER NO.2

main33583-36050iWU75,85,9#,YU6#,70198808-199505

33671FSUPPORT, CONTROL ROD, NO.1

main33607-36080iWU75,85,9#198808-199505

main33671-36080iYU6#,70198808-199305

main33671-36081iYU6#,70199305-199505

33676SUPPORT, CONTROL ROD MEMBER, RH (FOR FLOOR SHIFT)

main33676-36011iYU6#,70198808-199505

33677SUPPORT, CONTROL ROD MEMBER, LH (FOR FLOOR SHIFT)

main33677-36010iYU6#,70198808-199505

33681MEMBER, CONTROL ROD, REAR

main33681-36011iWU75,85,9#,YU6#,70198808-199505

33684ROD, CONTROL MEMBER BRACE

main33684-36010iYU6#,70198808-199505

main33684-36030iWU75,85,9#198808-199505

33709FSHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT)

main33709-36290iYU6#,70198808-199505

main33709-36310iWU75,85,9#198808-199505

33709GBUSH (FOR CROSS SHAFT, NO.1

main90386-13007×2iWU75,85,9#,YU6#,70198808-199505

33709HBOLT, HEXAGON (FOR CROSS SHAFT)

main90101-10117iWU75,85,9#198808-199505

main90101-10279iYU6#,70198808-199505

33709PCOLLAR (FOR CROSS SHAFT)

main90387-10002iYU6#,70198808-199505

main90387-10064iWU75,85,9#198808-199505

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-36190iYU6#,70198808-199401

main33710-36191iYU60199401-199505

main33710-36210iWU75,85,9#198808-199401

main33710-36211iWU75,85,9#199401-199505

33773ESUPPORT, CROSS SHAFT, NO.1

main33773-36080iYU6#,70198808-199505

33786FINSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIFT)

main33786-36020iYU6#,70198808-198910

9011910310

main90119-10310

9011910530

main90119-10530

9017010028

main90170-10028

9017906158

main90179-06158

9017908038

main90179-08038

9017908141

main90179-08141

9112160850

main91121-60850

9113140660

main91131-40660

9161160612

main91611-60612

9161160812

main91611-60812

9165140820

main91651-40820

9165160820

main91651-60820

9331216014

main93312-16014

9411040800

main94110-40800

9411041000

main94110-41000

9451101000

main94511-01000

9451200800

main94512-00800

48 parts on this diagram · 4 diagrams in section
