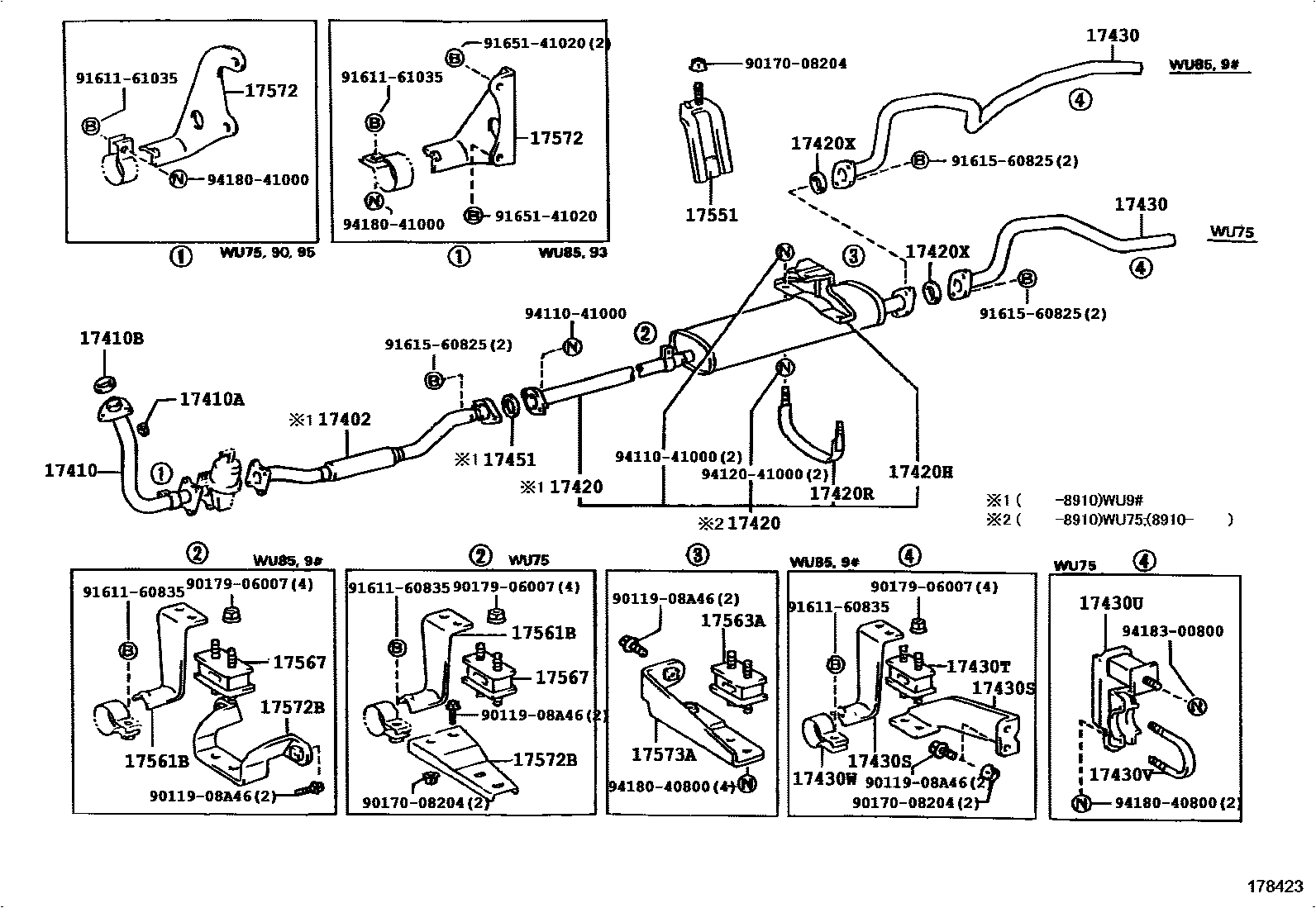

EXHAUST PIPE
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
PIPE SIDE
PIPE SIDE
BODY SIDE
BODY SIDE
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17430UCLAMP NO.1, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17551INSULATOR, EXHAUST PIPE HEAT, NO.1
17561BSUPPORT, EXHAUST PIPE, NO.1
17563ASUPPORT, EXHAUST PIPE, NO.3
17567CUSHION, EXHAUST PIPE SUPPORT
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
9011908A46
9017008204
9017906007
9161160835
9161161035
9161560825
9165141020
9411041000
9412041000
9418040800
9418041000
9418300800
34 parts on this diagram · 5 diagrams in section
